Oil Pump: Description and Operation

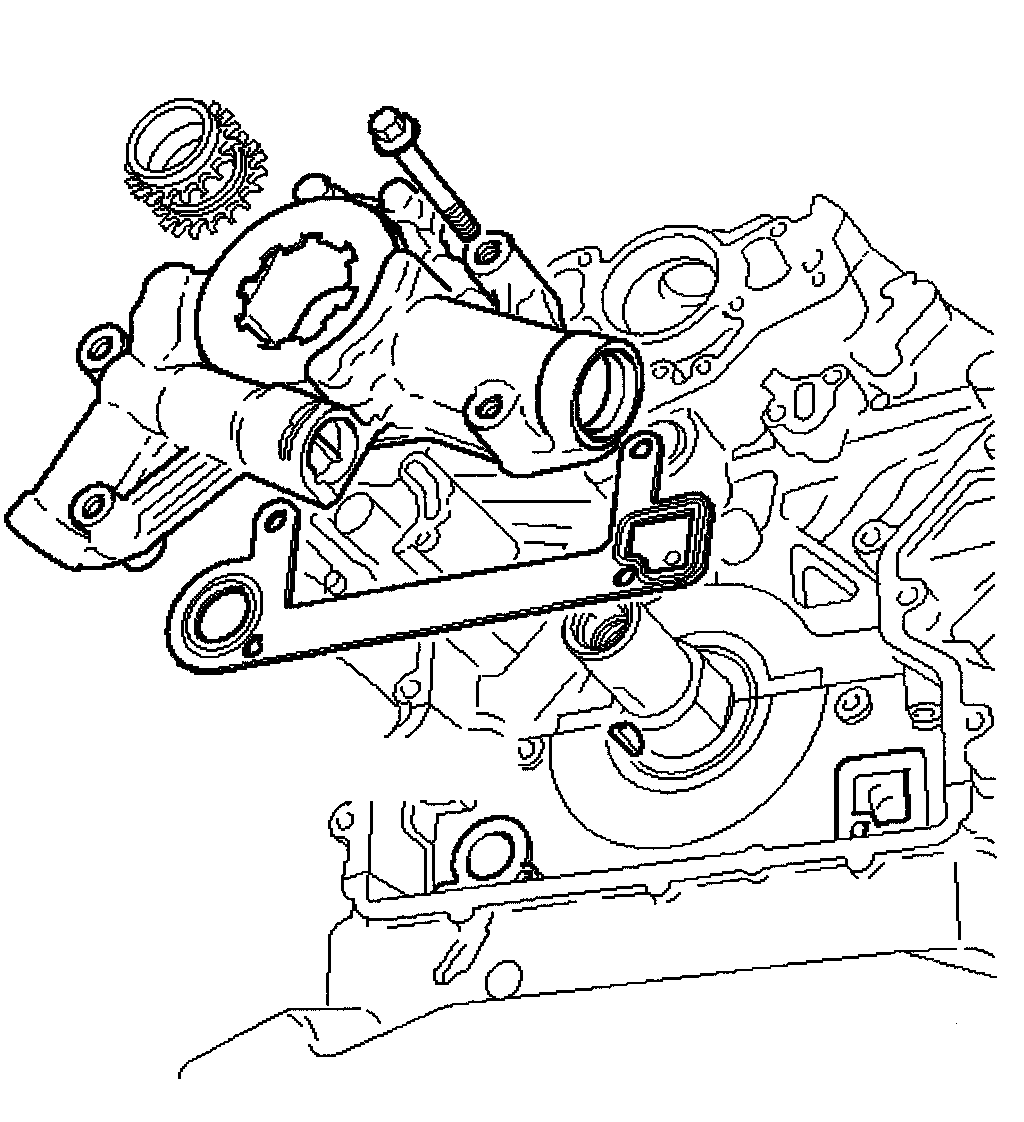

The oil pump is located at the front of the engine and is driven directly by the crankshaft. The inlet and outlet ports align with oil passages in the bedplate, with a rubber coated metal gasket to seal the pump to bedplate interface.
An integral pressure relief valve regulates pump outlet pressure not to exceed 4.5 bar (65.25 inch2 lbs.).
