Idler Pulley: Service and Repair

Removal
1. Remove the drive belt for access.

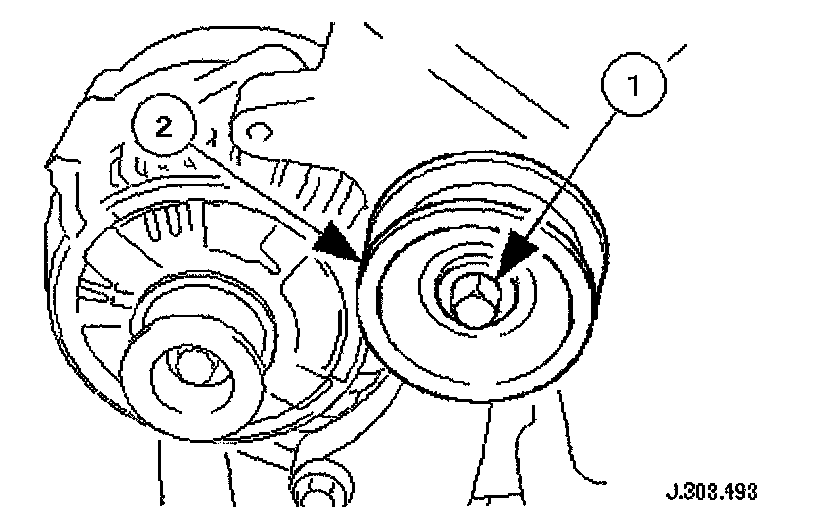

2. Remove the idler pulley.
Remove the securing bolt from the idler pulley.
Remove the idler pulley.

Installation
1. Installation is the reverse of the removal procedure. Tighten the pulley securing bolt to 53-69 Nm. Ensure that the belt is correctly and squarely located on each pulley.
