Engine Mount: Service and Repair

Engine Rear Mounting

Removal
1. Raise the vehicle on a ramp to a suitable height for working on the rear mounting.

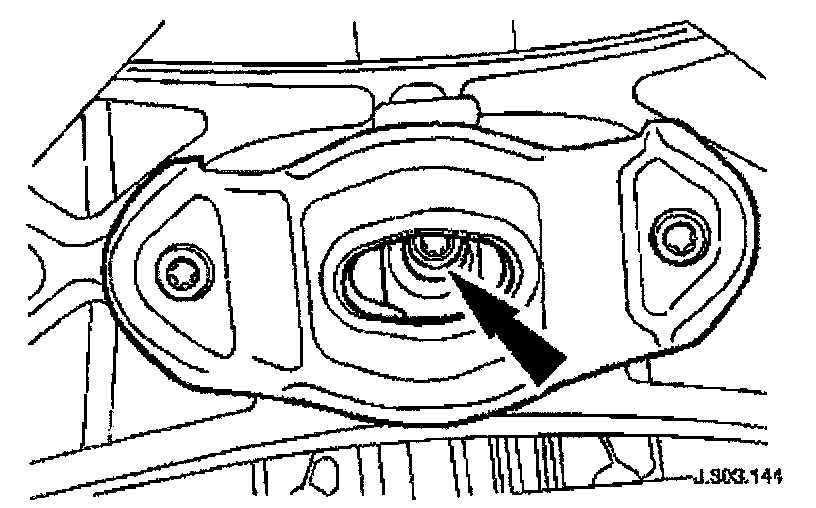

2. Remove the bolt which secures the engine rear mounting rubber to the transmission.
3. Position a transmission jack under the transmission casing. Take the weight of the transmission on the jack.





4. Remove the rear mounting rubber.

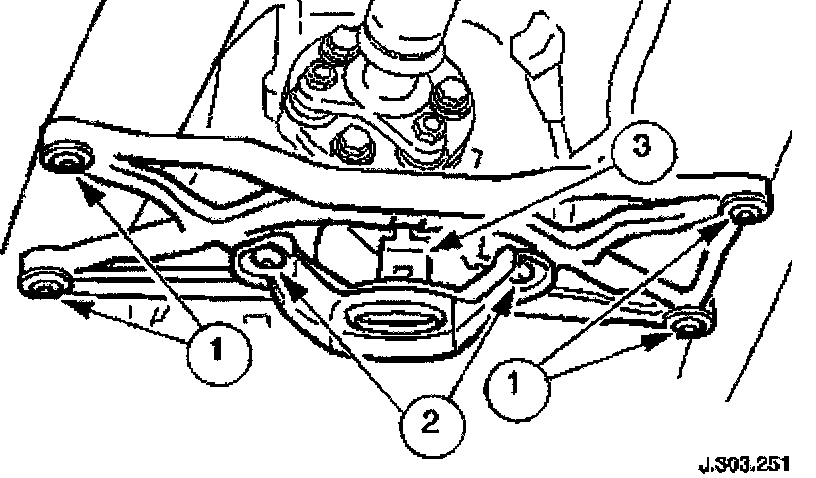

Slacken the four bolts which secure the rear crossmember to the vehicle floor.
Remove the two bolts which secure the mounting rubber to the crossmember.
Remove the mounting rubber.

Installation

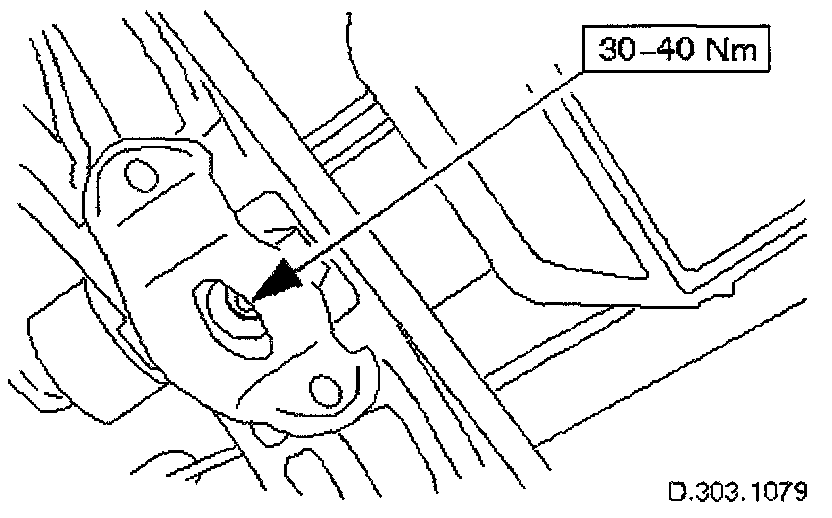

1. Install the mounting rubber assembly to position and tighten the center bolt to 30-40 Nm.

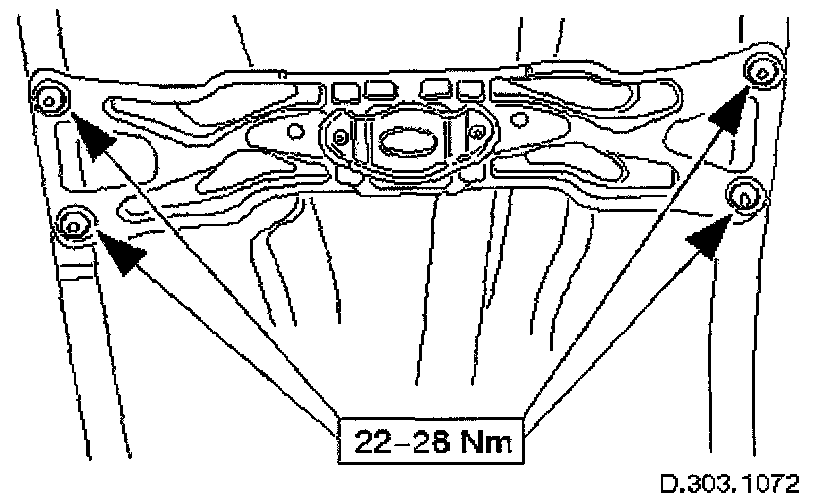

2. Tighten the crossmember to body bolts and the mounting rubber to crossmember bolts to 22-28 Nm.
