Engine Harness

The engine harness links engine mounted electrical components to the engine management harness. The connectors that interface with the engine management harness are attached to a bracket on the transmission housing. Integral nylon fasteners attach the harness to the engine and connectors on component flying leads are attached to brackets which are mounted on the engine.

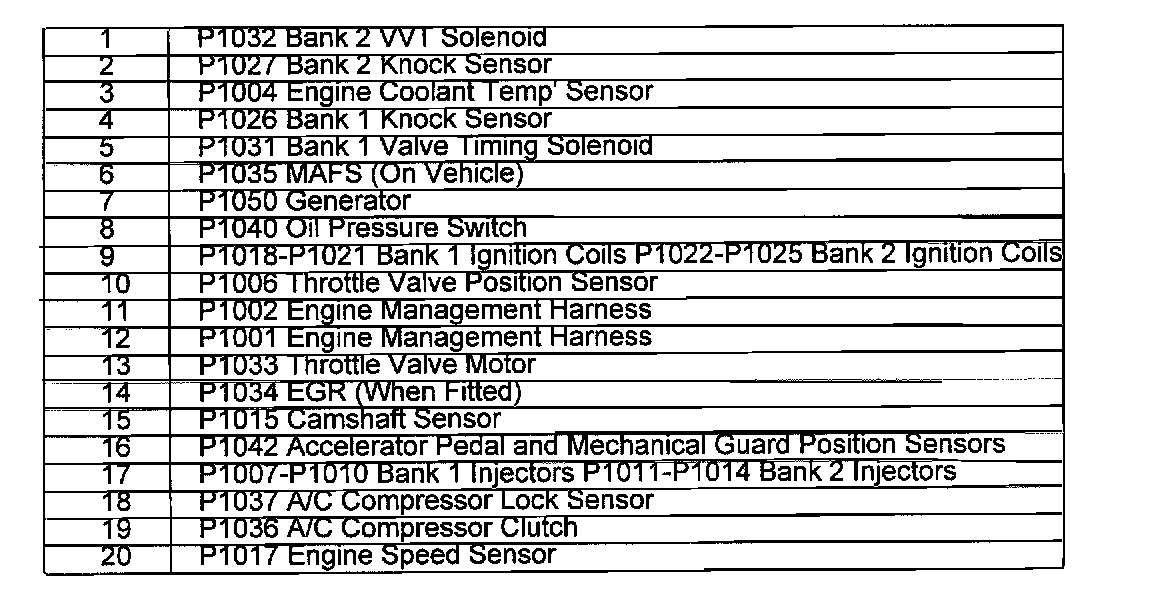

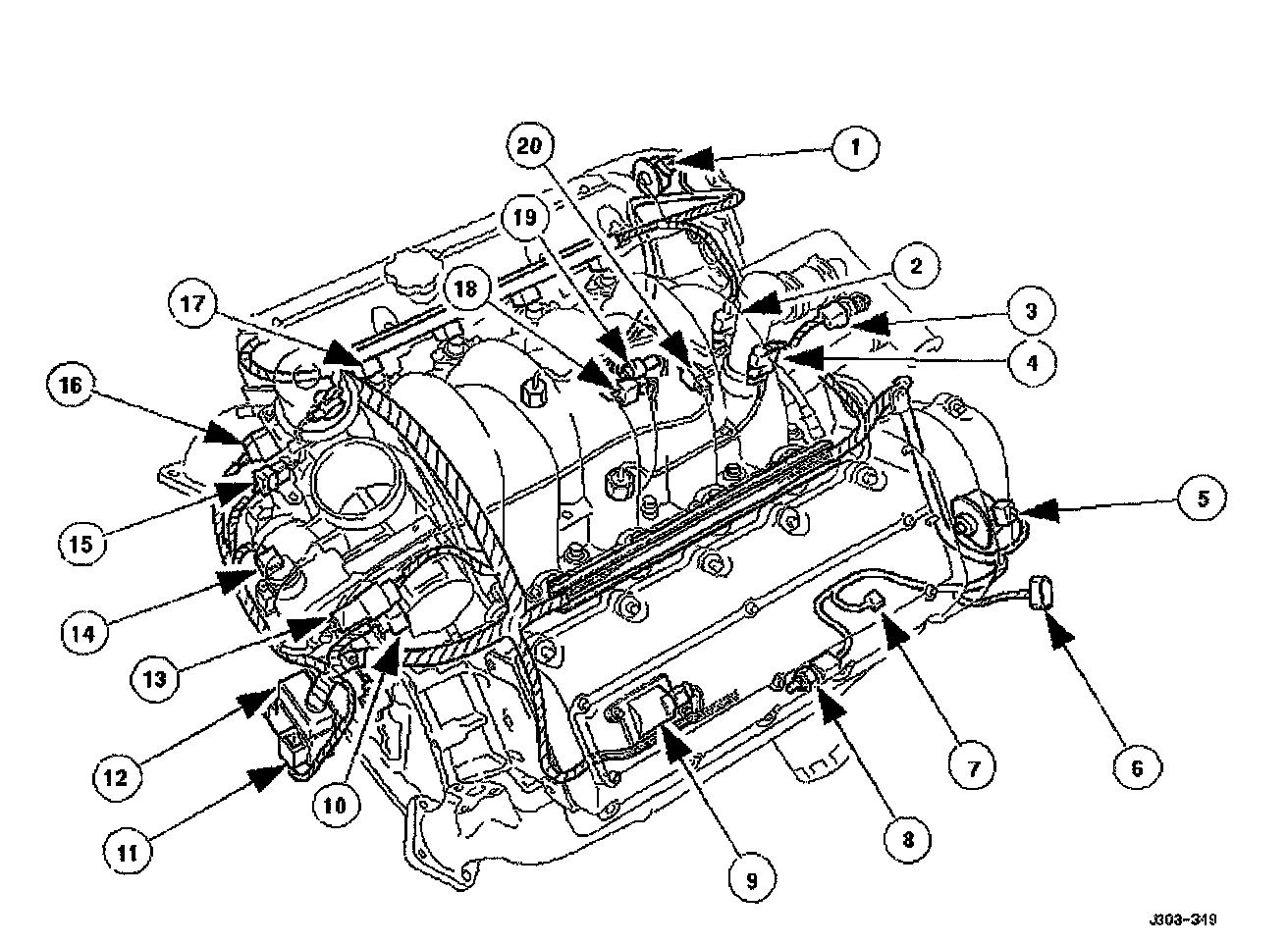

The illustration shows the location of the various connectors around the engine. All wiring is protected and has improved retention using plastic cradles. There are two other harnesses within the engine compartment, the Left Front Harness and the Engine Management Harness.
