Cooling Fan Shroud 26.25.30

Removal
1. Remove the Twin Fan and Motor Assembly from the radiator.
2. With twin fan and motor assembly on the bench, remove both fan and motor units.

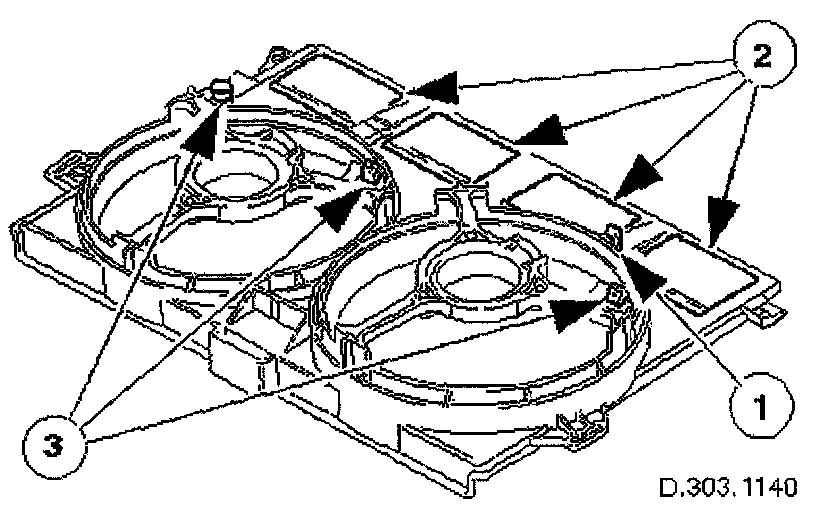

3. Remove the components from the mounting frame.
Remove the pipe securing clip.
Remove the rubber vent flaps.
Remove the three harness securing clips.

Installation
1. Installation is the reverse of the removal procedure.
