Cooling Fan Motor 26.25.25

Removal
1. Remove the Twin Fan and Motor Assembly. Do not remove the harness and pipe securing clips from the assembly.





2. Remove the fan and motor units from the twin fan and motor assembly.

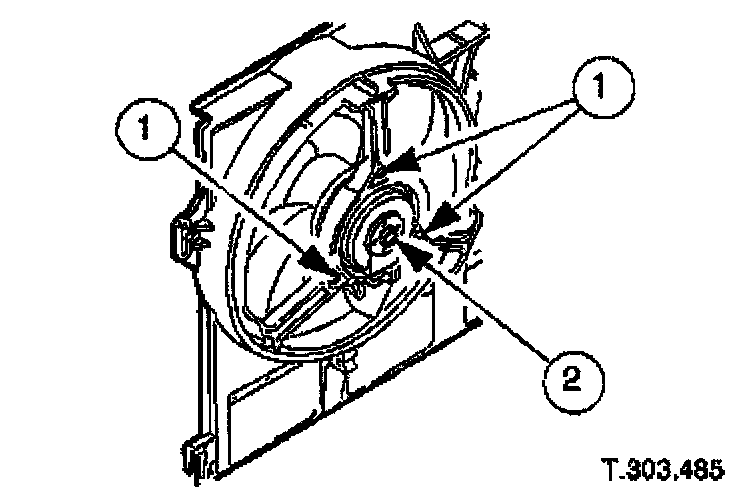

Remove the three nuts which secure the fan and motor unit.
Remove the fan and motor unit.
Repeat the above two operations for the second fan.

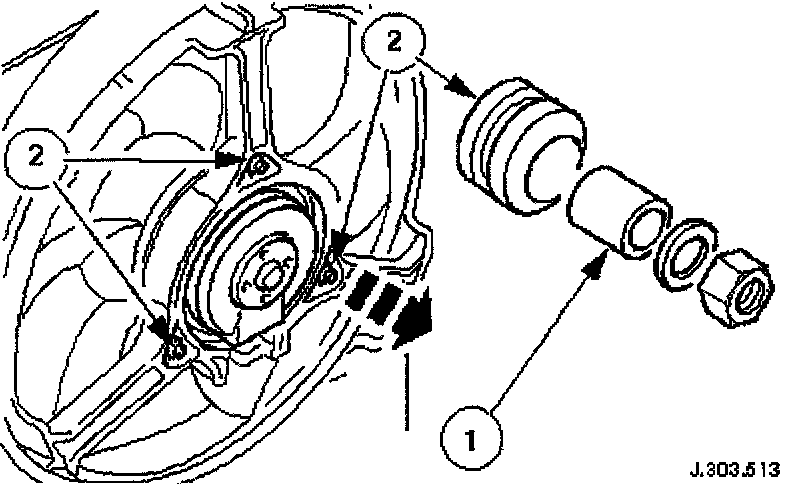

3. Remove the fan rubber mountings.
Remove the spacer from each rubber mounting.
Remove the rubber mountings; three for each fan unit.

Installation
1. Installation is the reverse of the removal procedure.
