Data Link Connector
��x J�x � y �6y �Ny Networks; Serial Data Links:

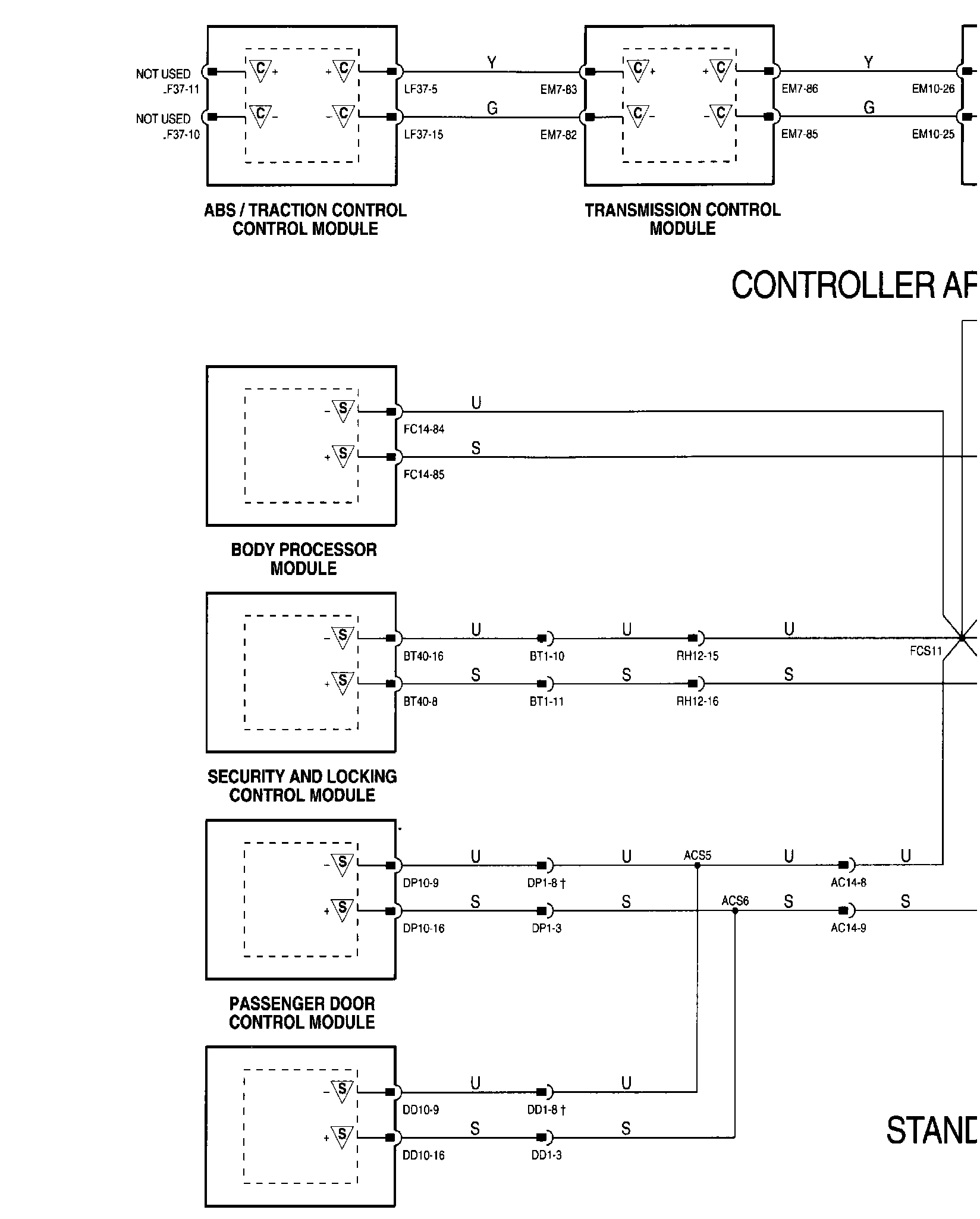

Wiring Diagram
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

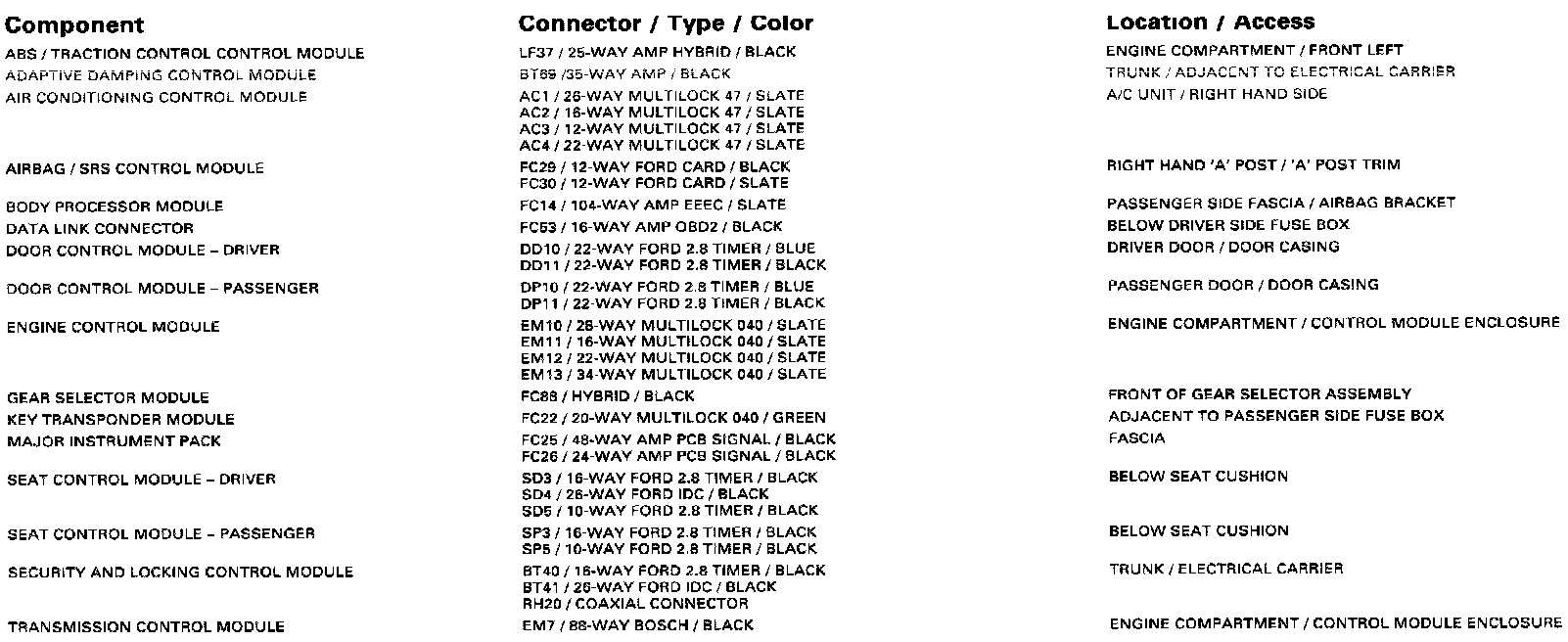

Networks; Serial Data Links: Components:
Components Informations

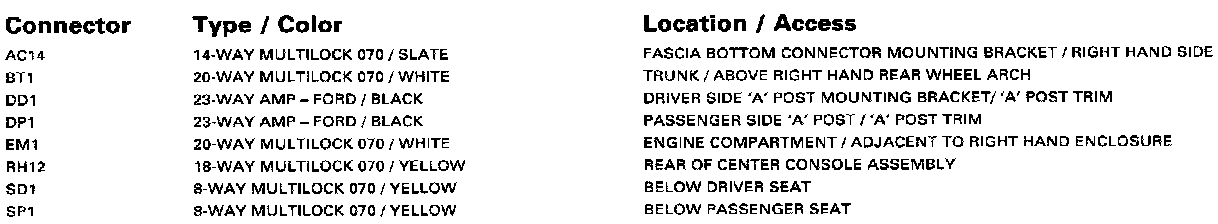

Networks; Serial Data Links: Harness-To-Harness Connectors:
Harness-To-Harness Connector Informations
Networks; Serial Data Links: Grounds:
Grounds Informations
Abbreviations
The Following abbreviations are used throughout this Appendix:
BPM Body Processor Module
DIAG Diagnostics
DDCM Driver Door Control Module
DSCM Driver Seat Control Module
IP Instrument Pack
PDCM Passenger Door Control Module
PSCM Passenger Seat Control Module
R Receive
T Transmit
SLCM Security and Locking Control Module
Networks; Serial Data Links: CAN Messages By Node:
CAN Messages by Node: Transmitted by ECM
Networks; Serial Data Links: CAN Messages By Node:

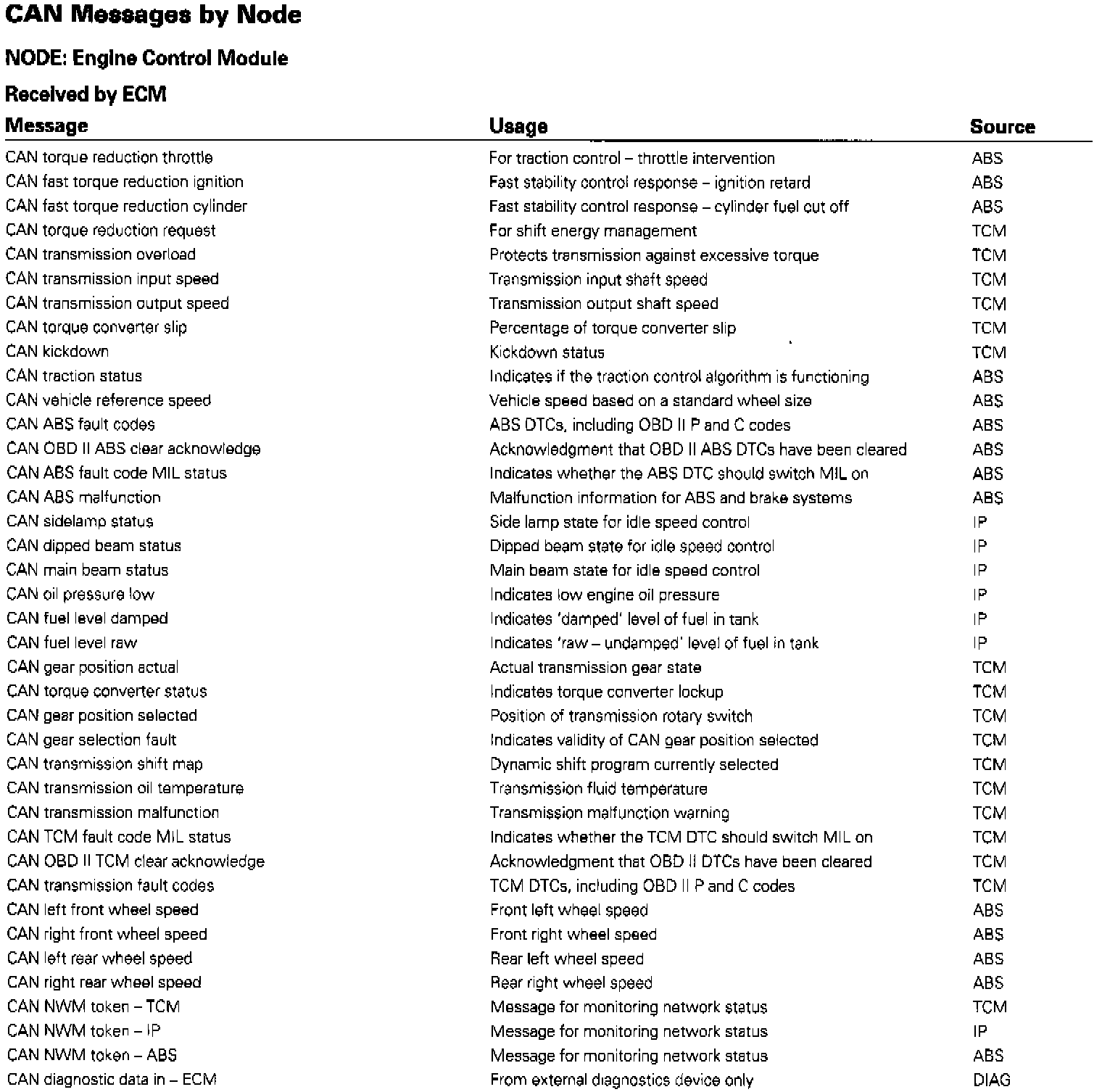

CAN Messages by Node: Received by ECM
Networks; Serial Data Links: CAN Message By Node:

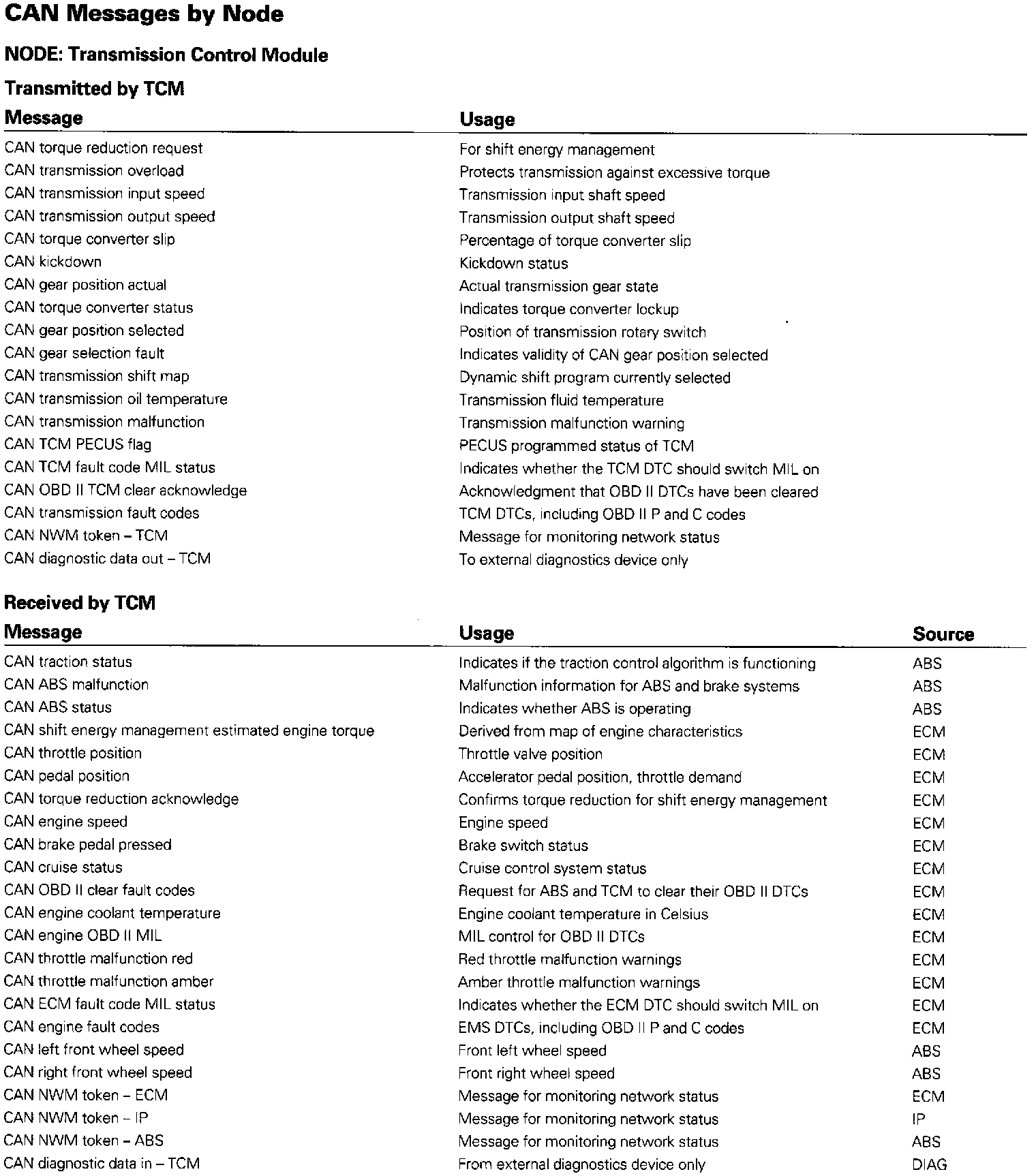

CAN Messages by Node: Transmitted/Received by TCM
Networks; Serial Data Links: CAN Message By Node:

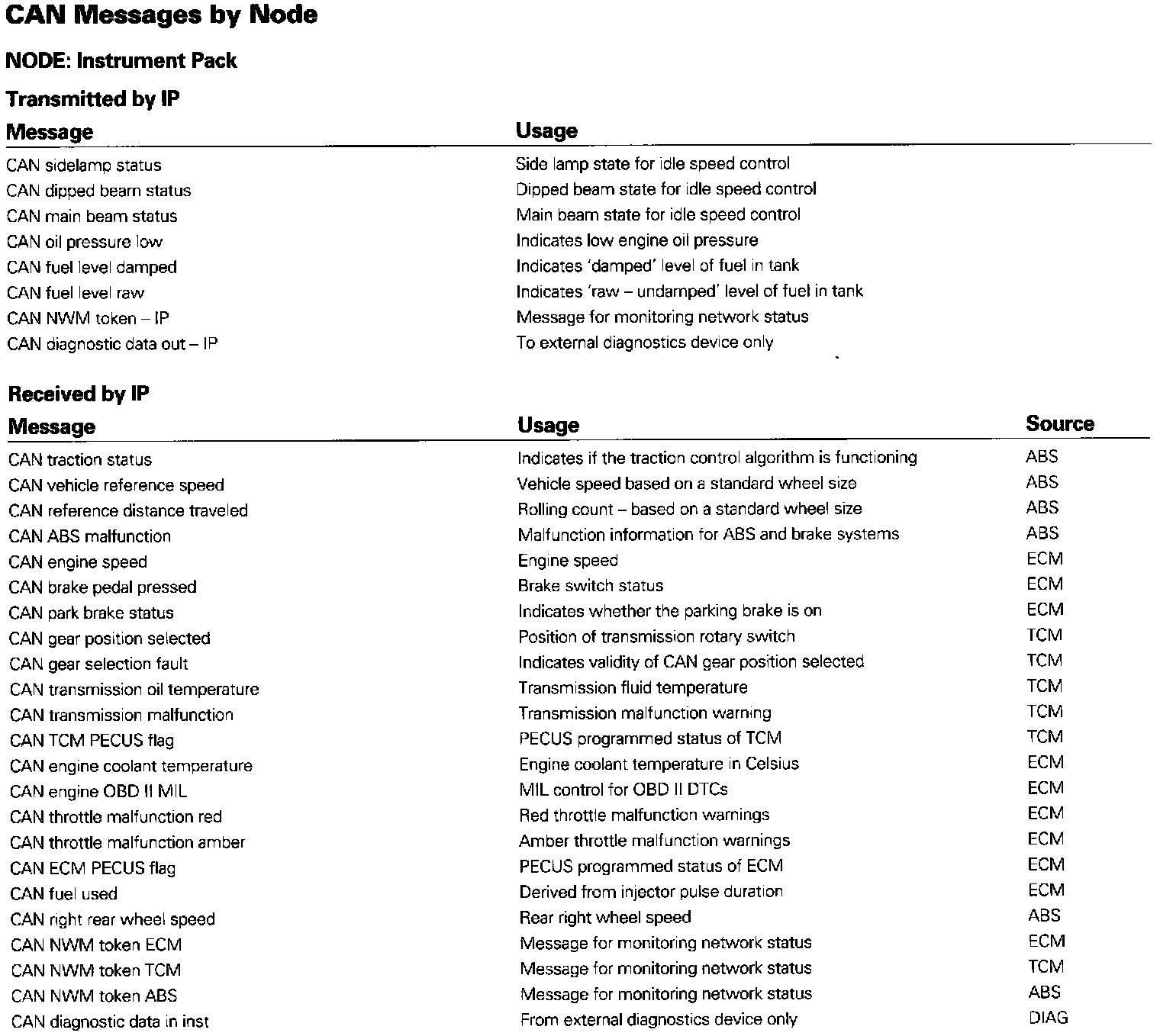

CAN Messages by Node: Transmitted/Received by IP
Network; Serial Data Links: CAN Messages By Node:

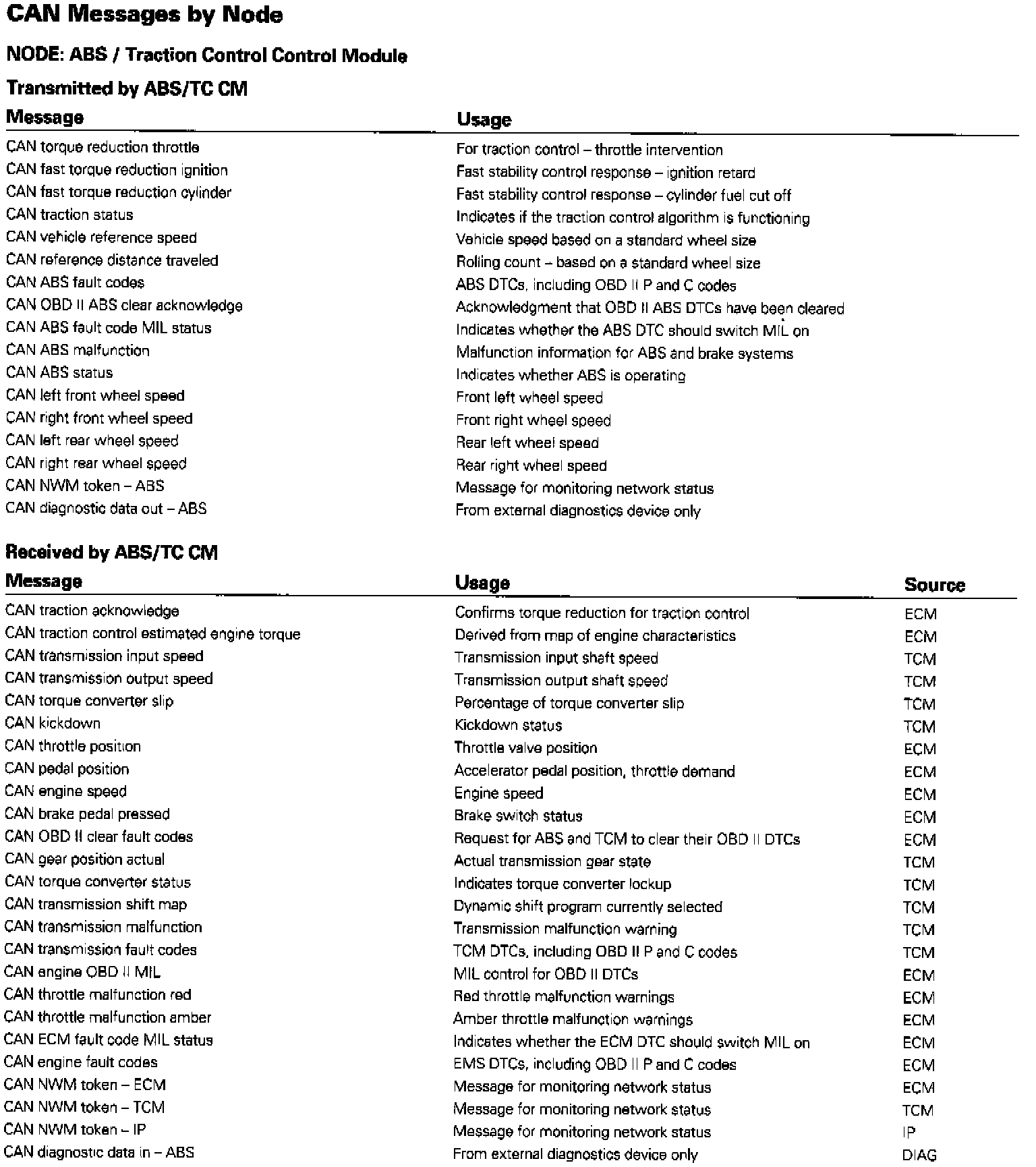

CAN Messages by Node: Transmitted/Received by ABS/TC CM
Network; Serial Data Links: CAN Messages By Node:

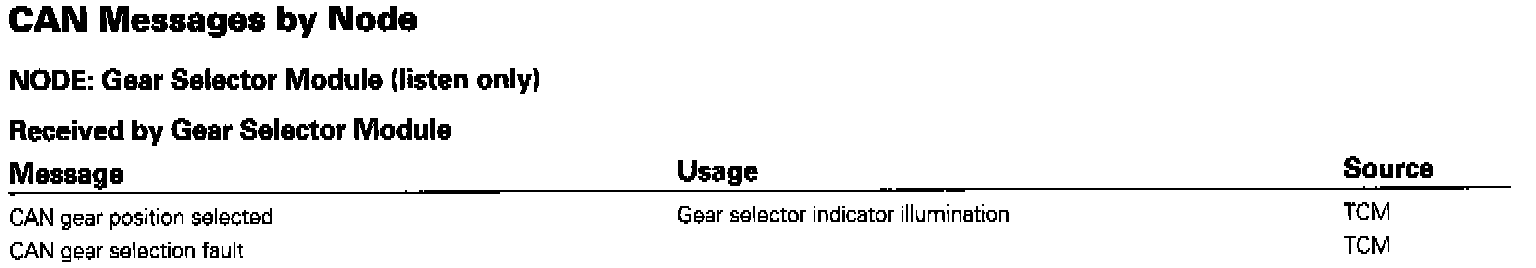

CAN Messages by Node: Received by Gear Selector Module
Network; Serial Data Links: CAN Message Matrix:
Network; Serial Data Links: CAN Message Matrix:

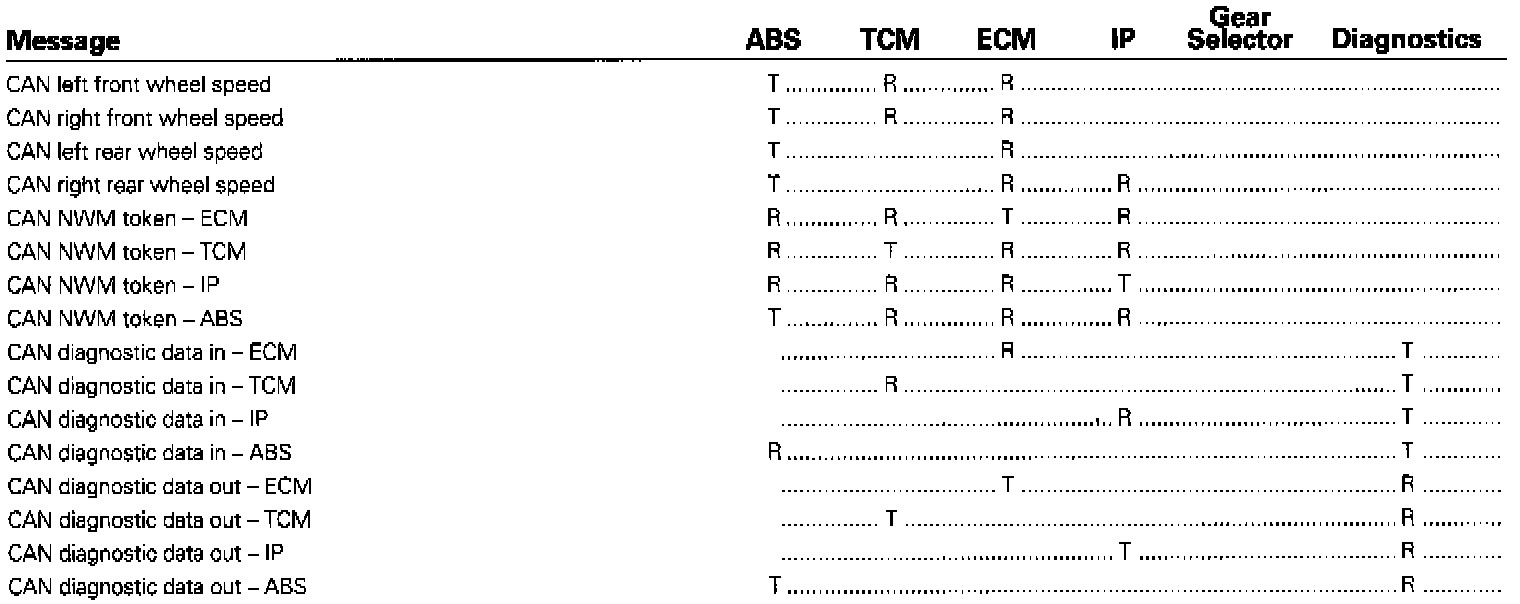

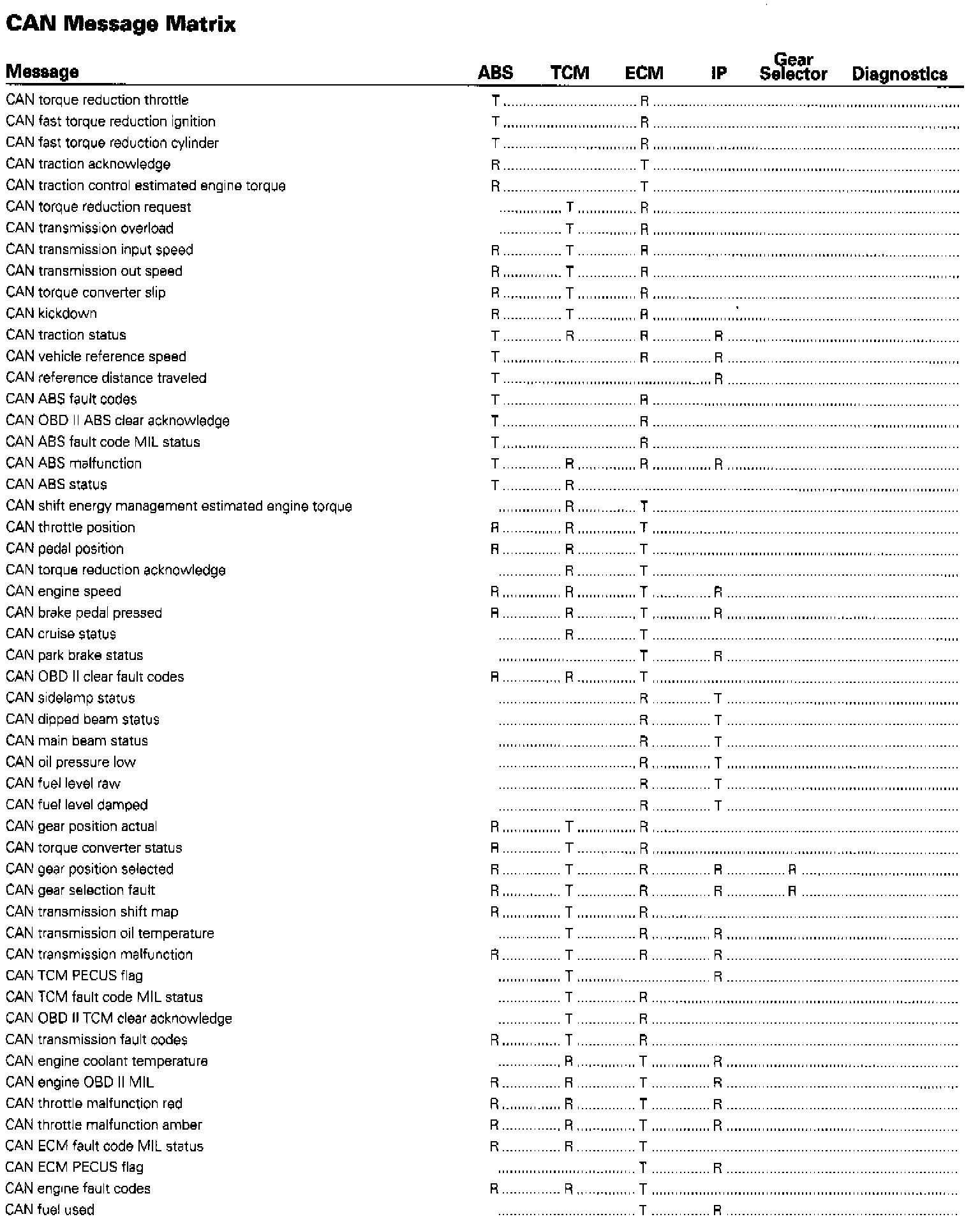

CAN Message Matrix

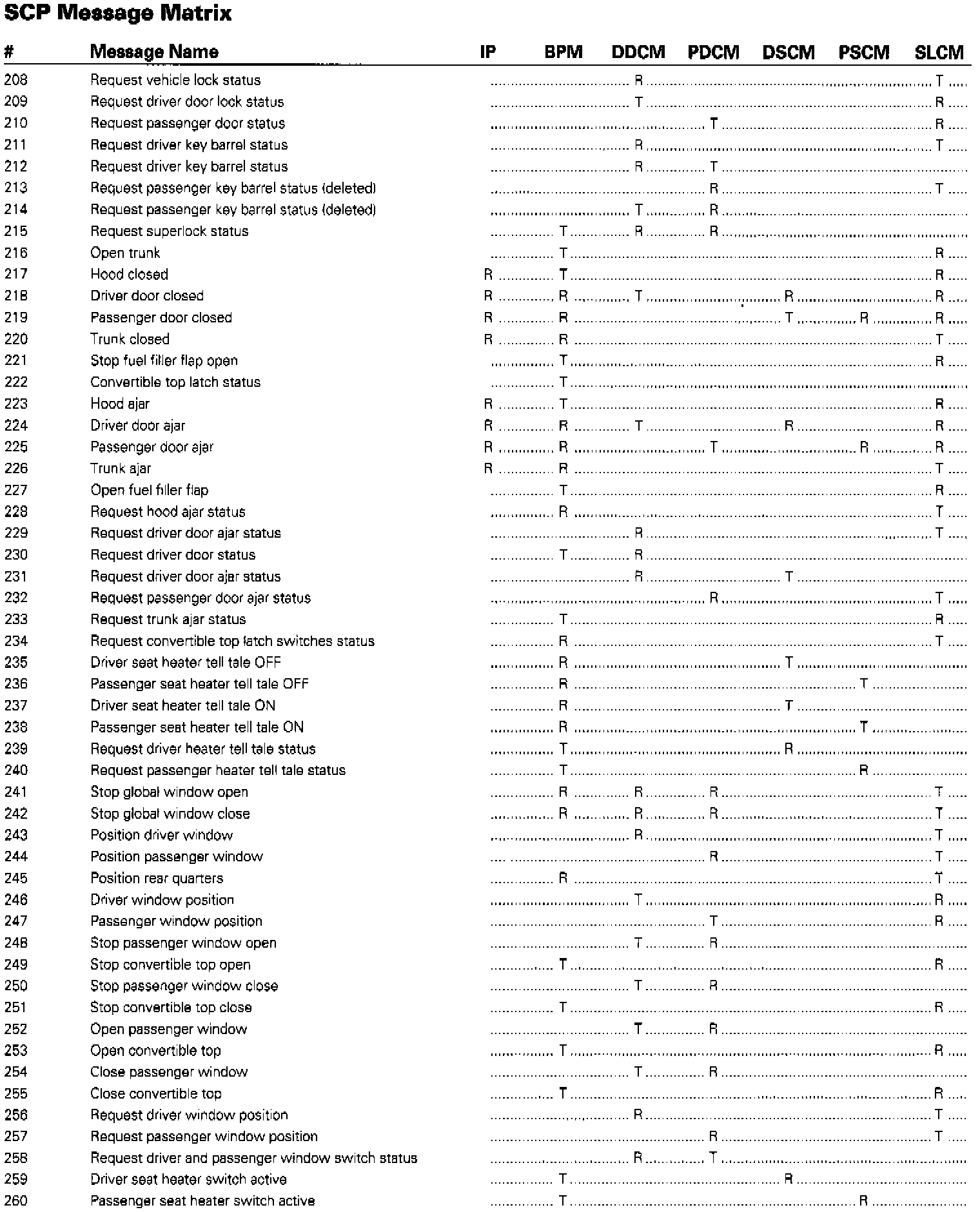

Networks; Serial Data Links: SCP Message Matrix:
Network; Serial Data Links: SCP Message Matrix:
Network; Serial Data Links: SCP Message Matrix:

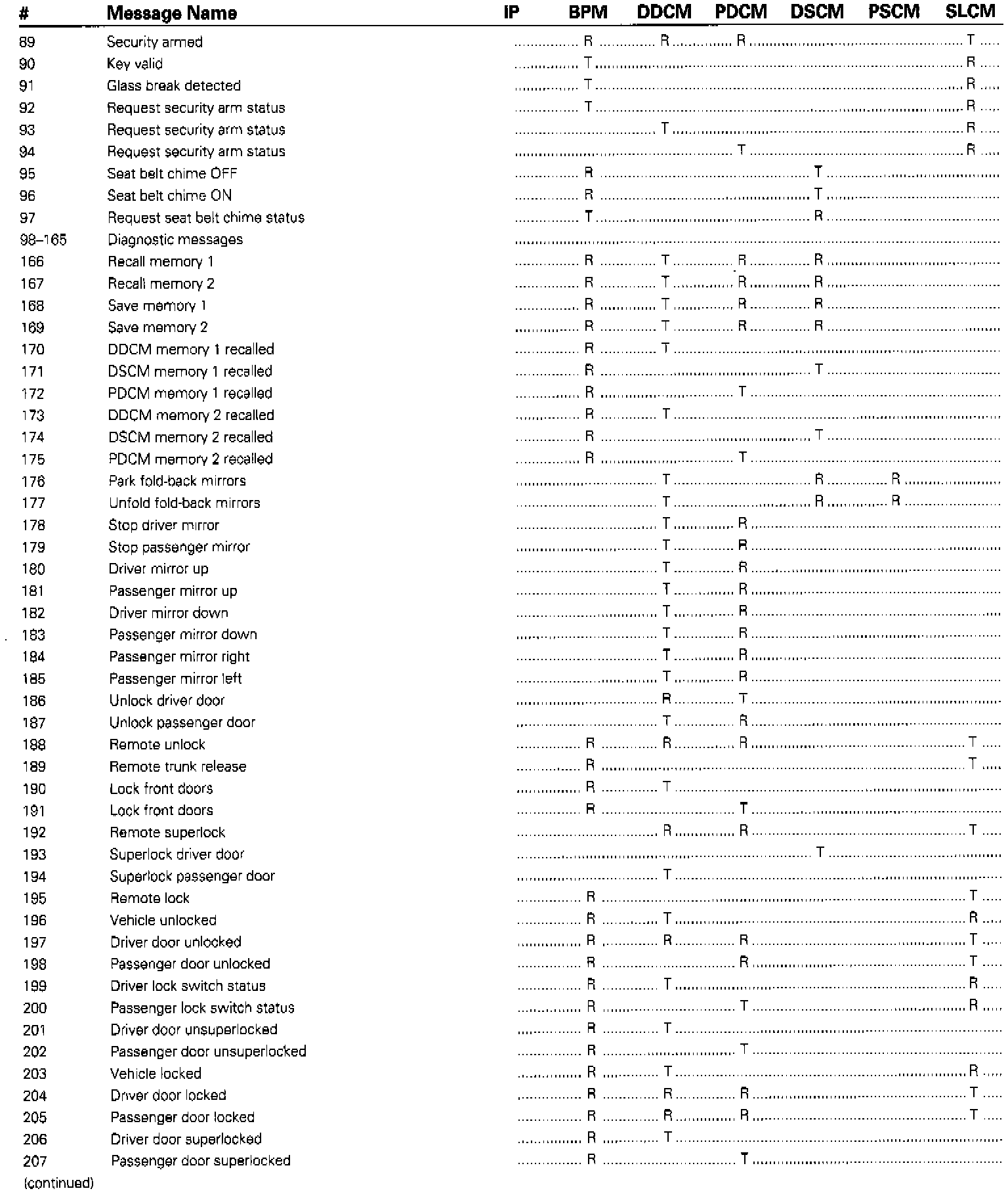

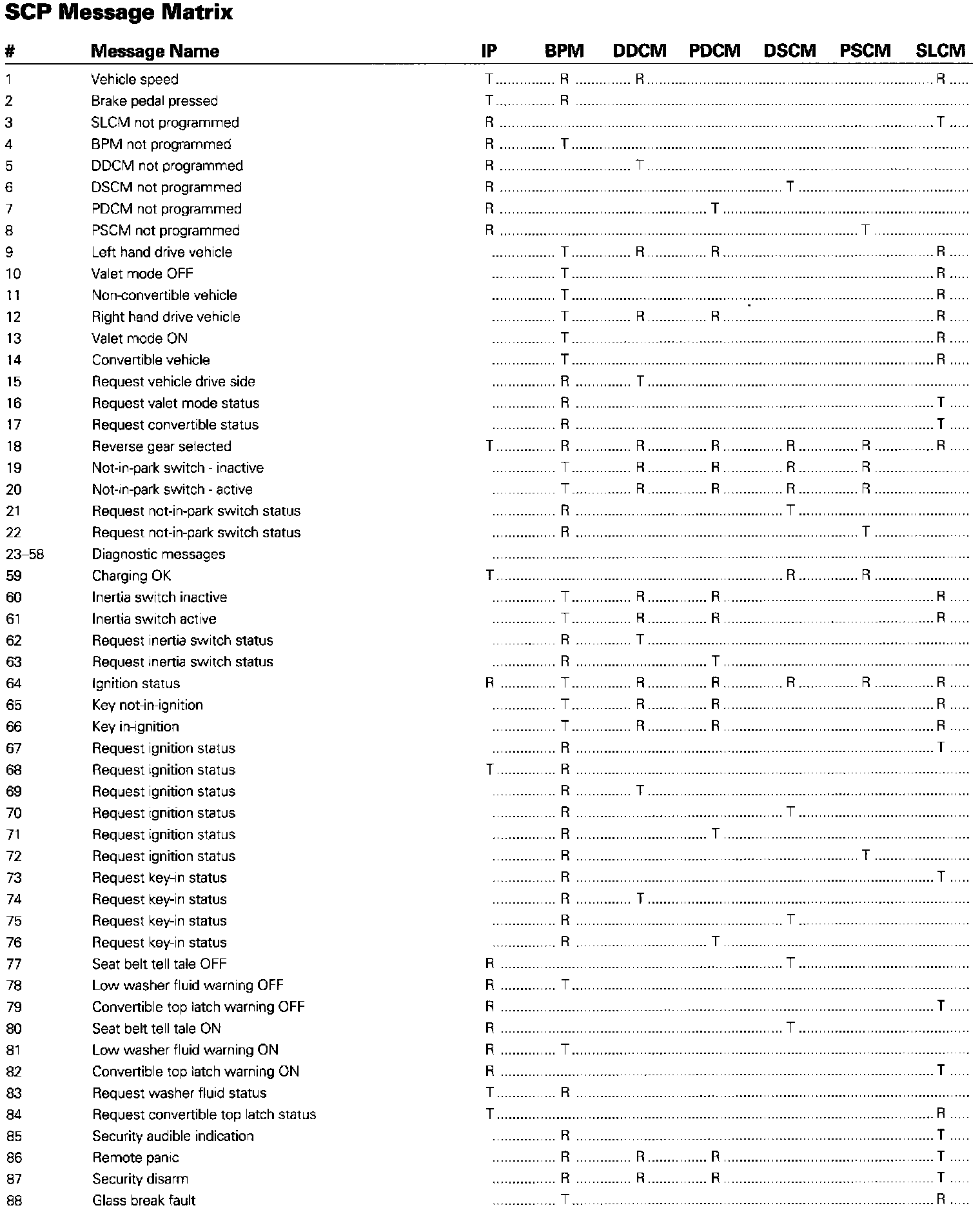

SCP Message Matrix
