Climate Control, Part 1

Climate Control, Part 1

B��:

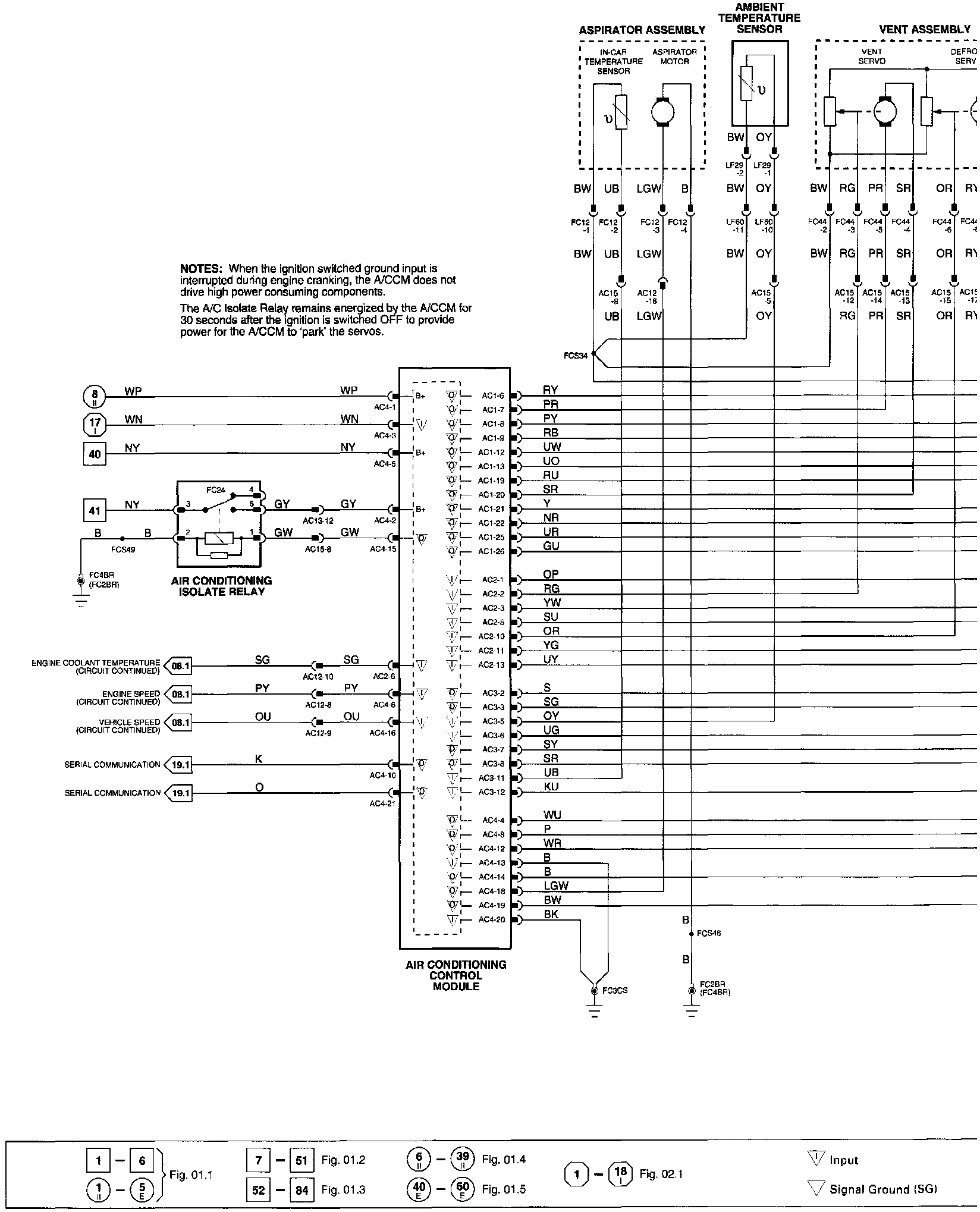

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

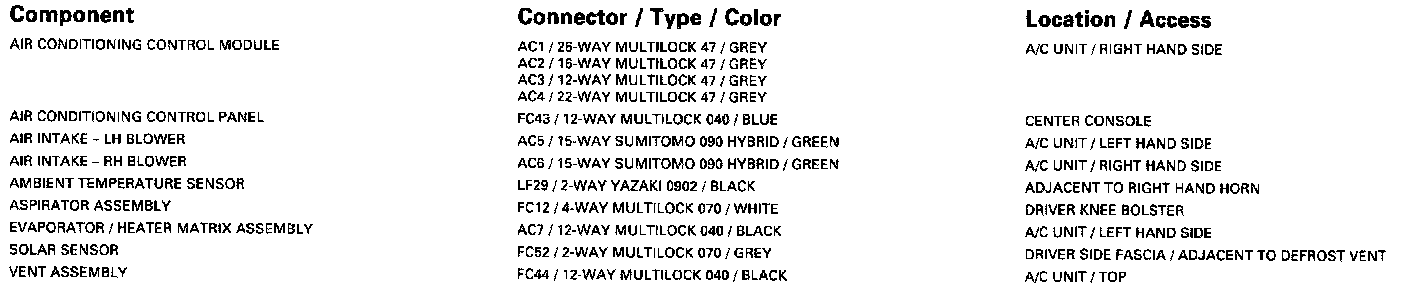

Component Information







Relay Information

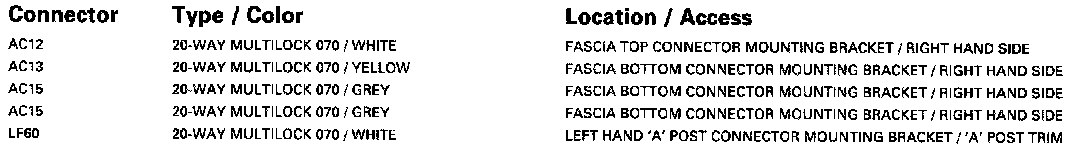

Harness to Harness Connector Information

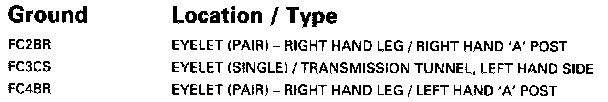

Ground Information

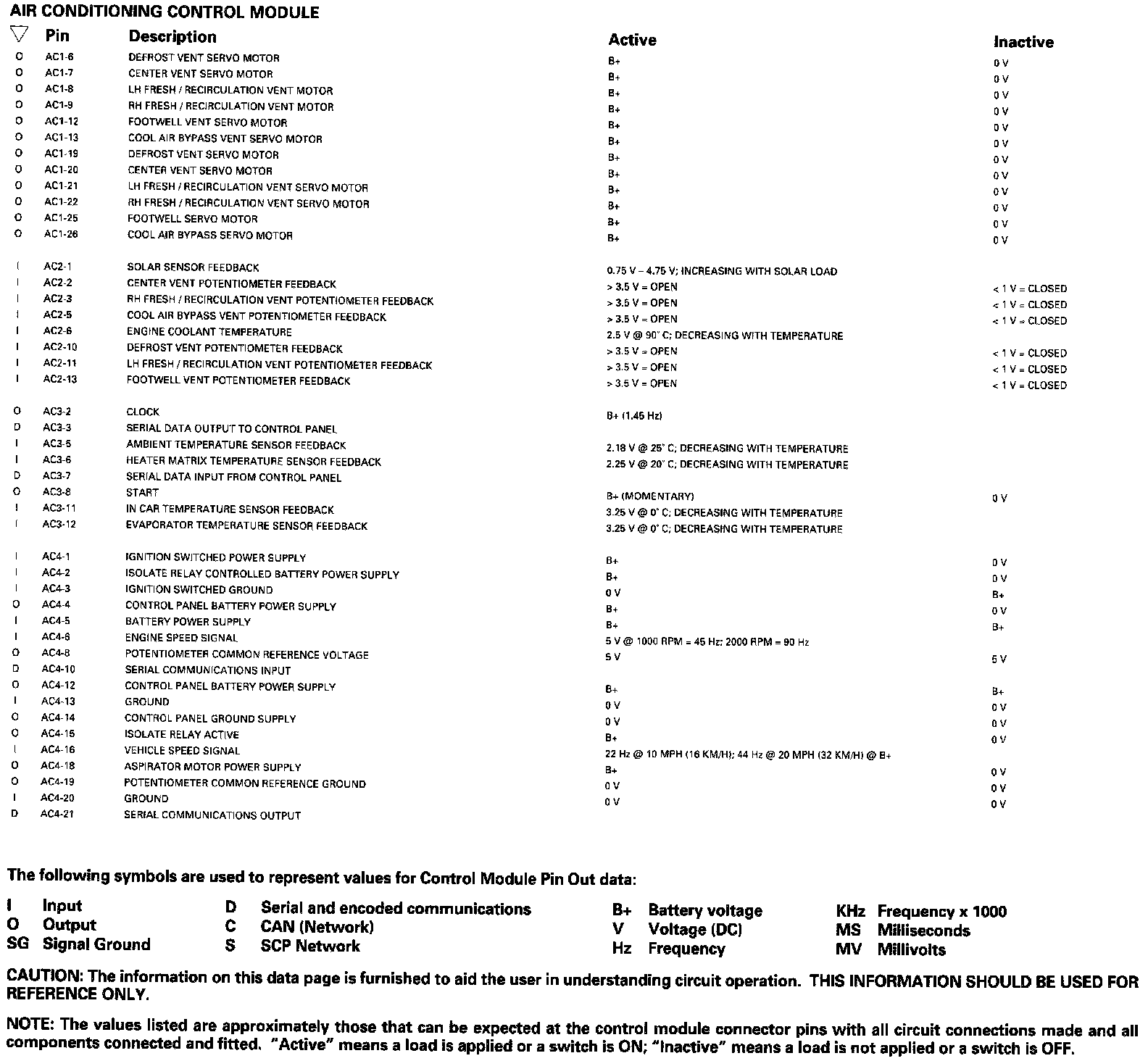

Control Module Pin Out Information
