Fig 16.2




�LG:

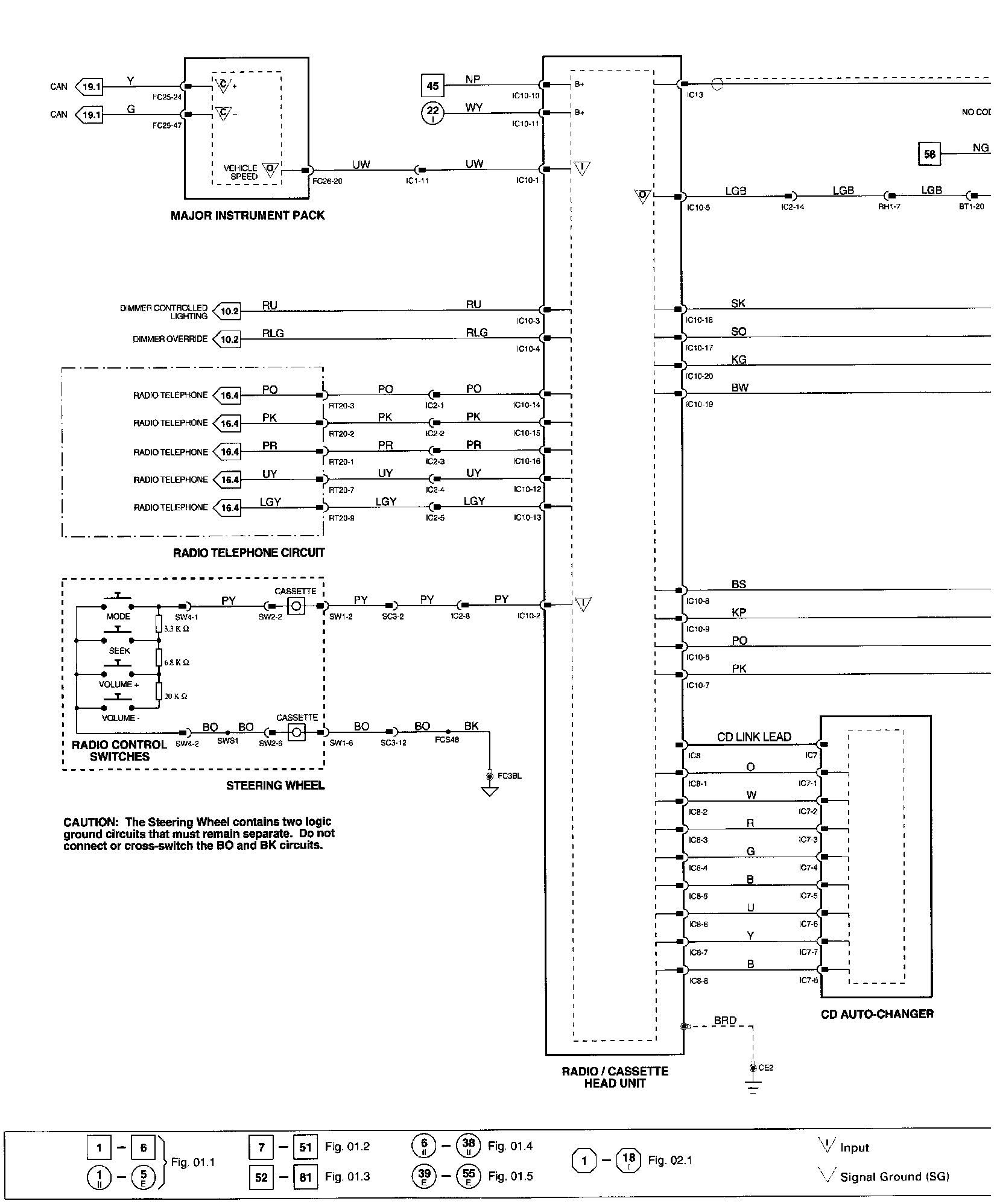

Wiring Diagram

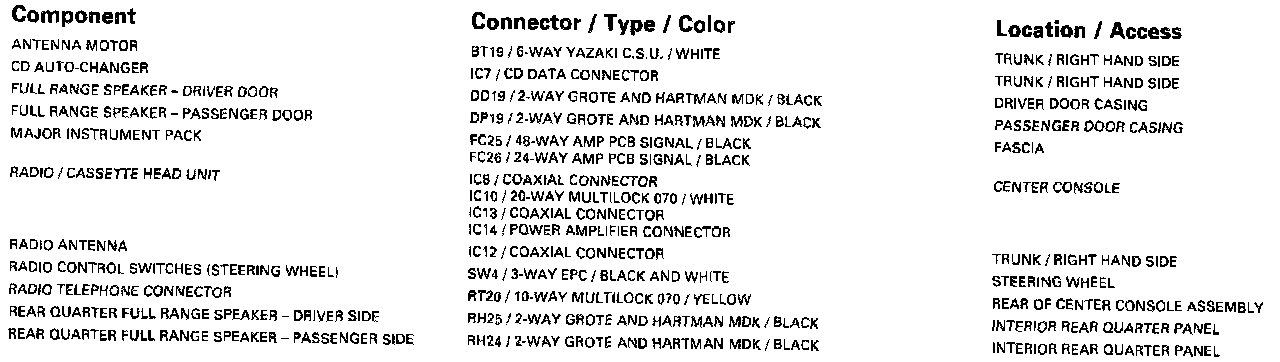

Component Information

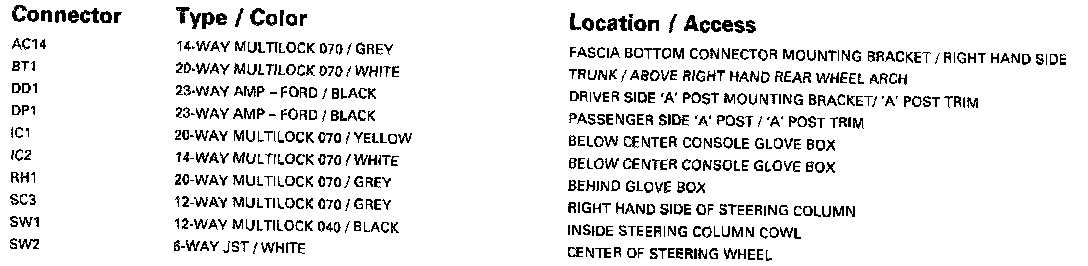

Harness to Harness Connector Information

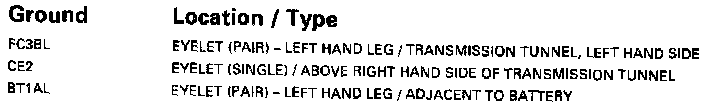

Ground Information

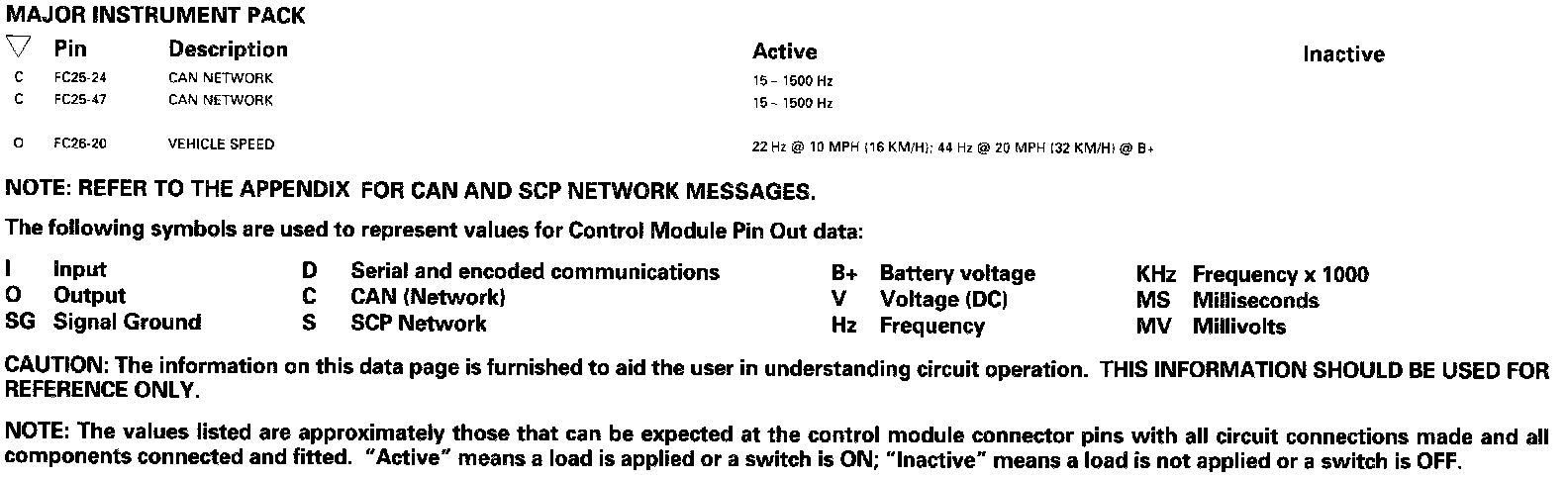

Control Module Pin Out Information
