Fig 14.1




ٹ�&:

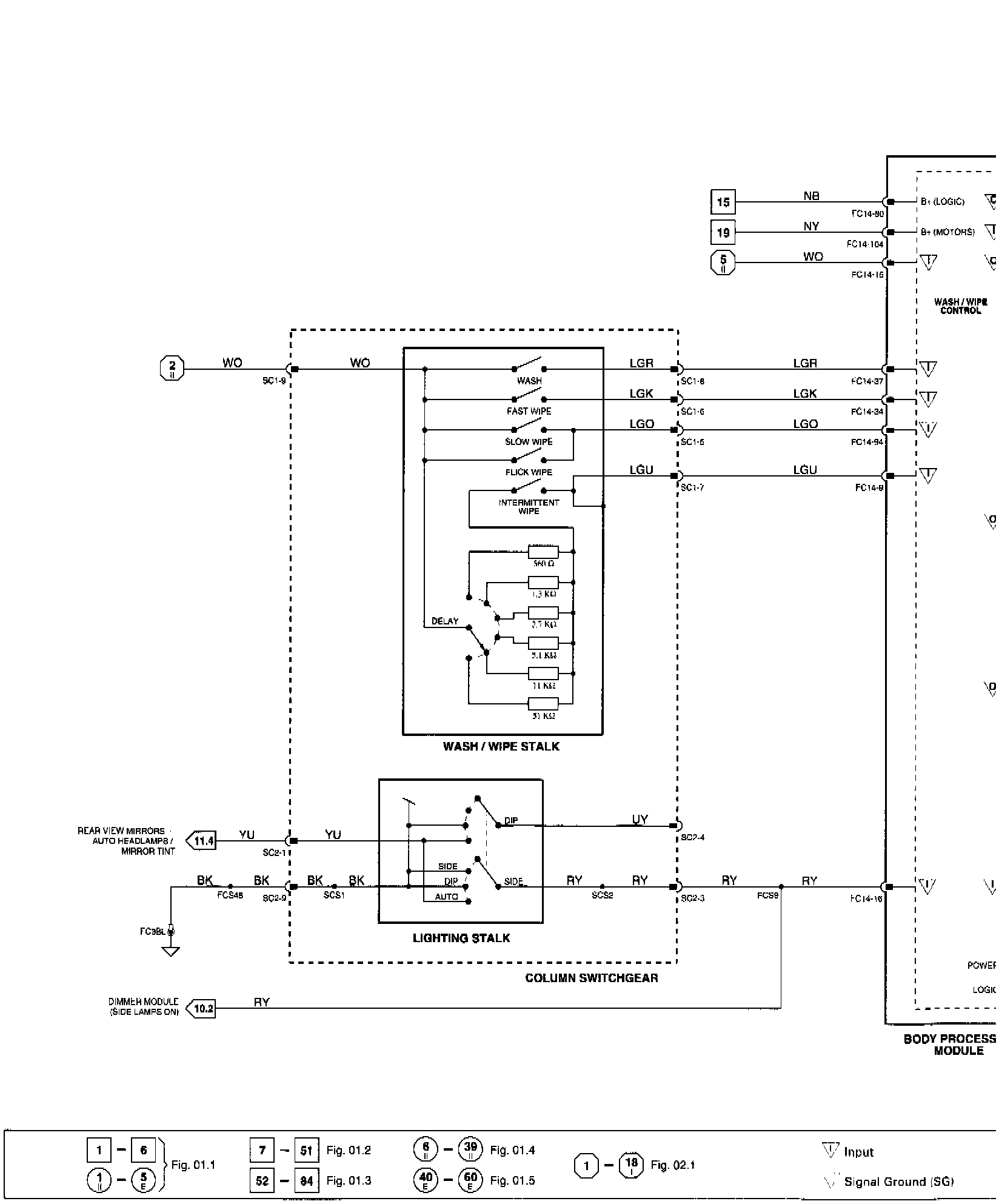

Wiring Diagram

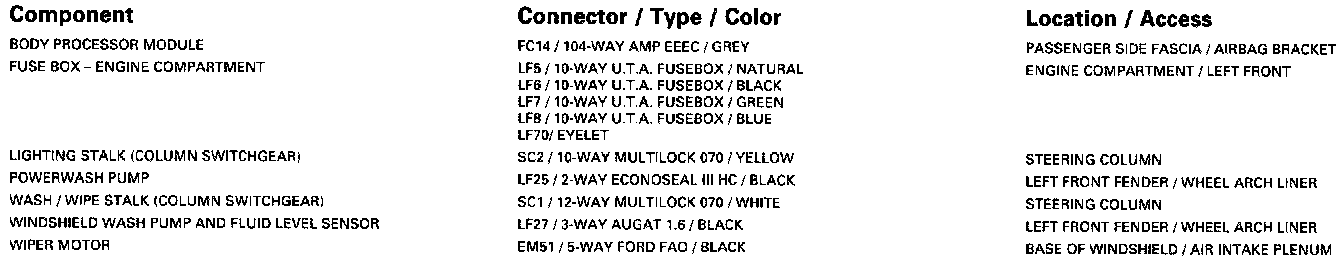

Component Information

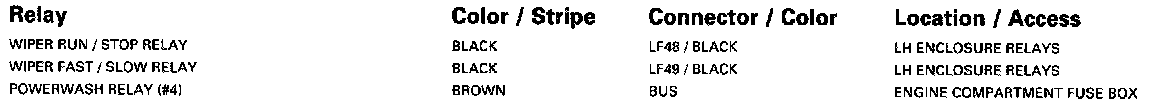

Relay Information

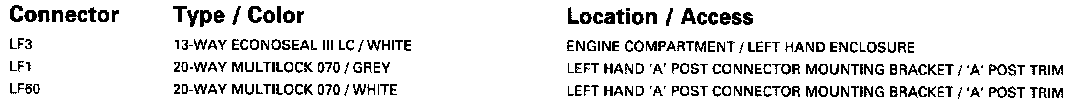

Harness to Harness Connector Information

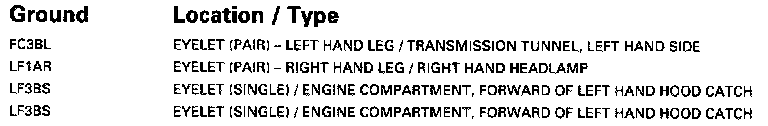

Ground Information

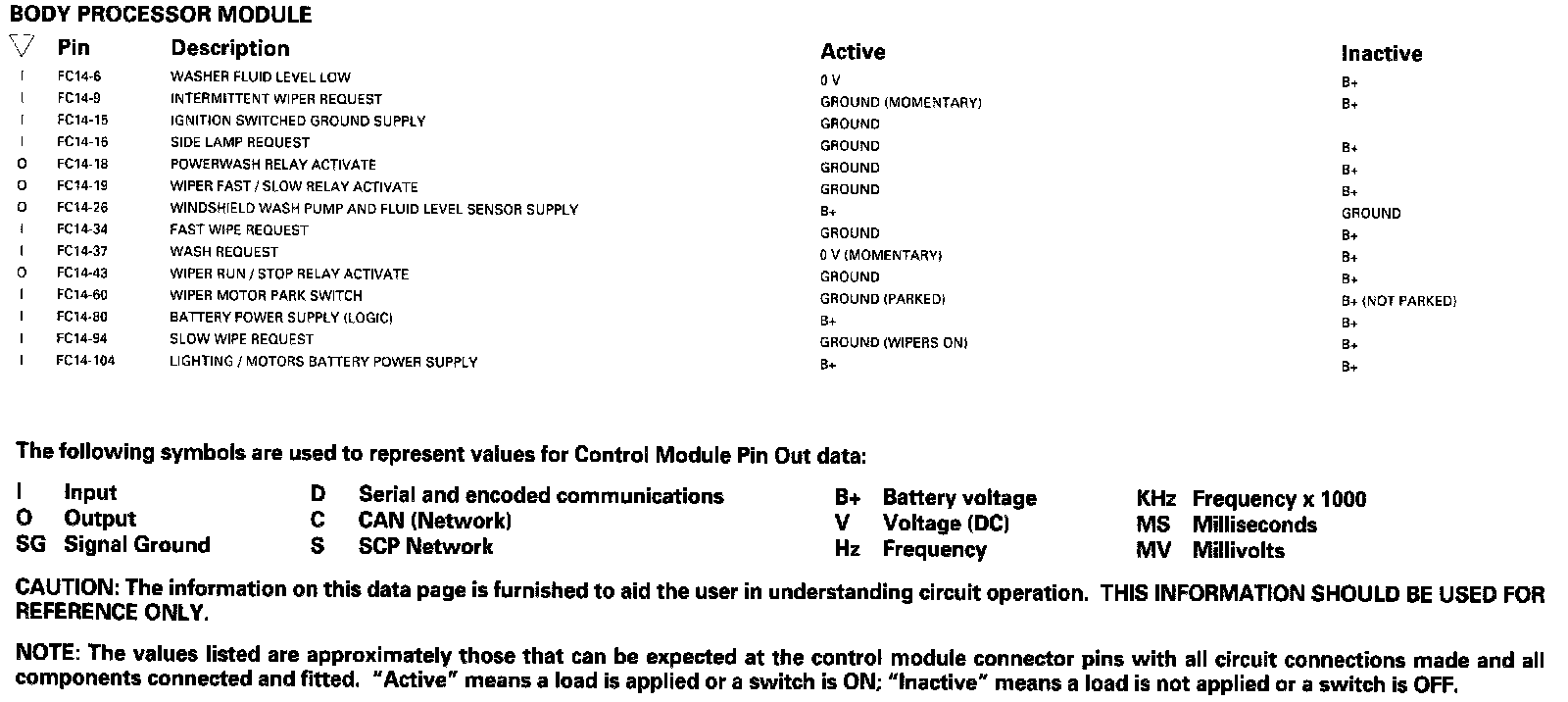

Control Module Pin Out Information
