Fig 11.3




!y6 :

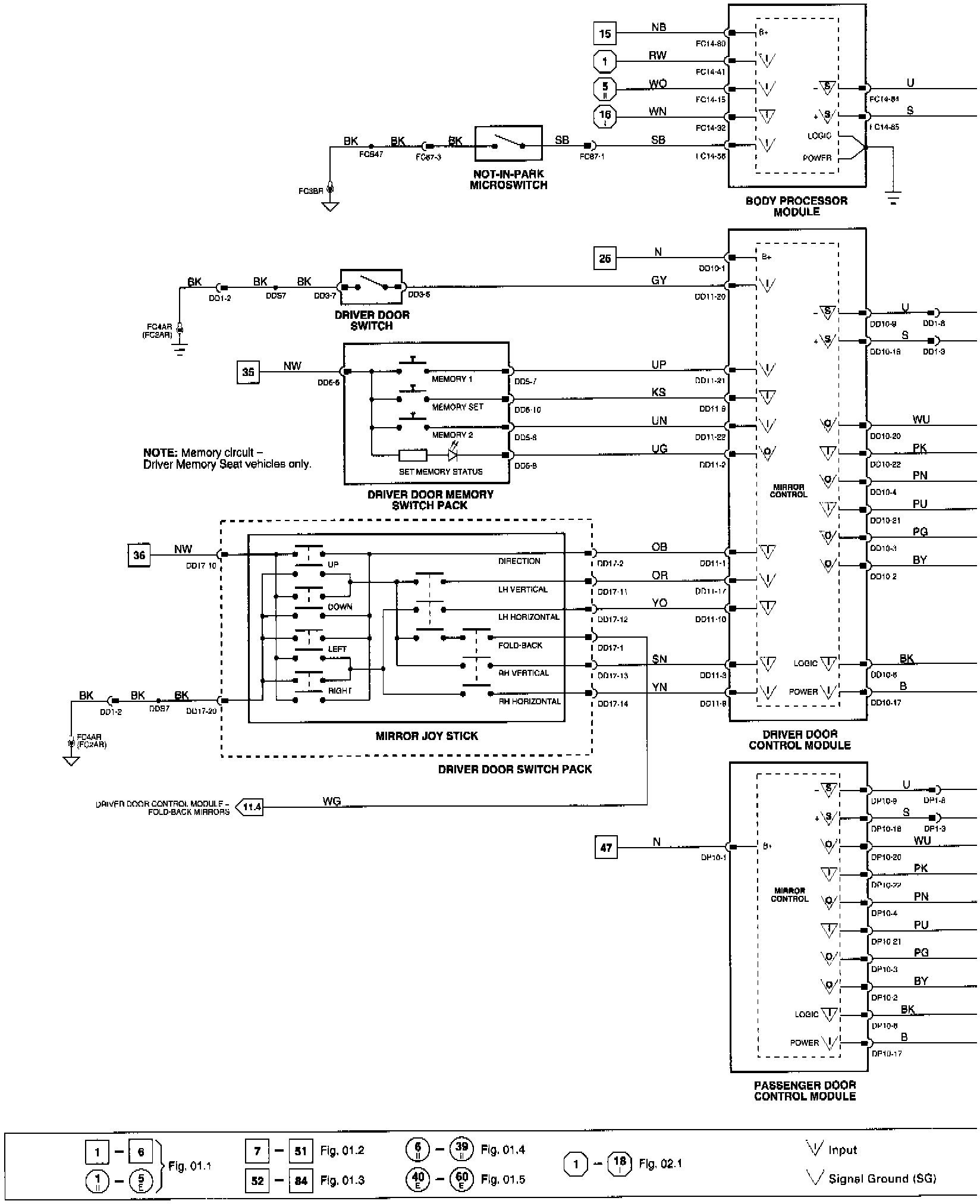

Wiring Diagram

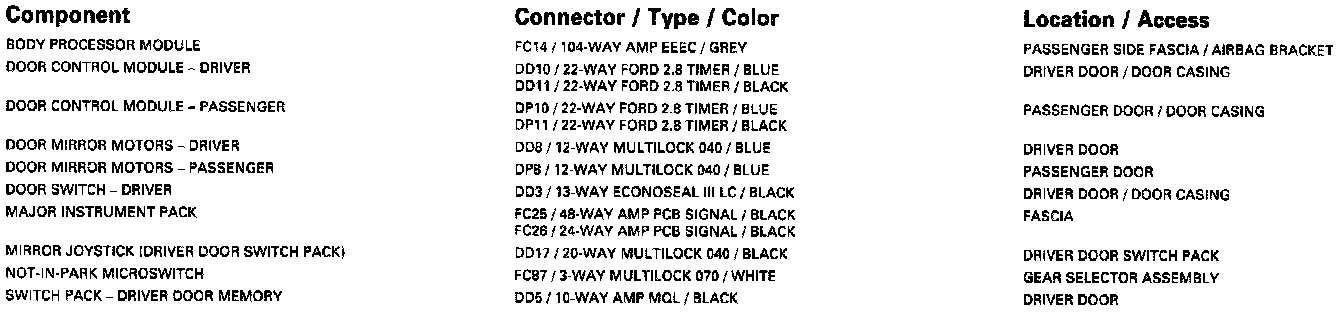

Component Information

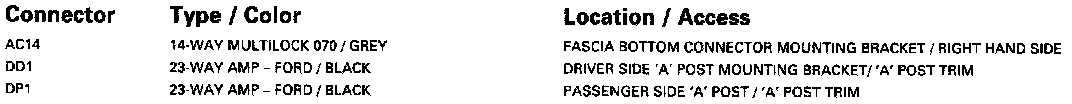

Harness to Harness Connector Information

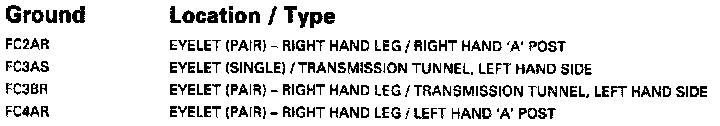

Ground Information

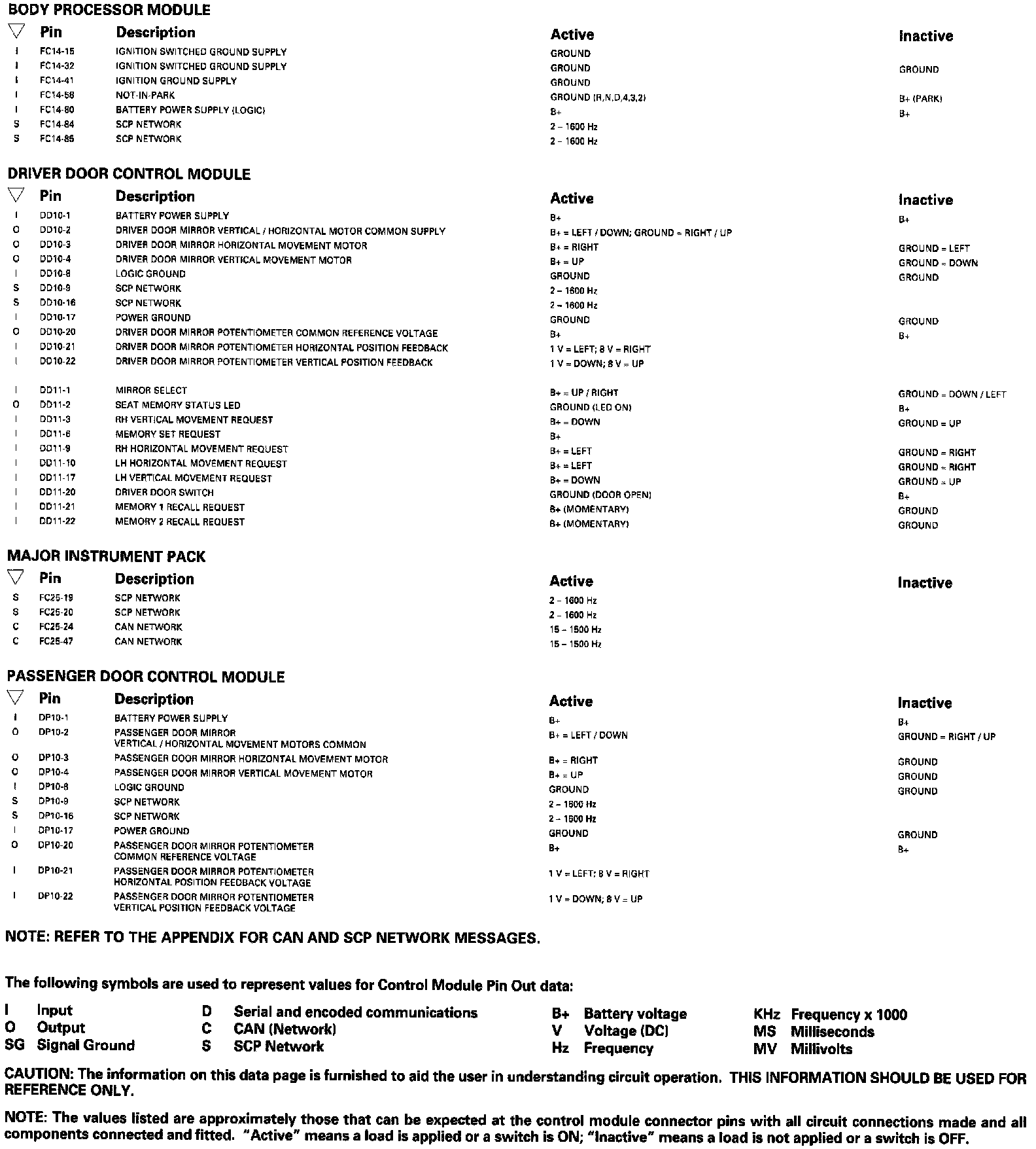

Control Module Pin Out Information
