Up to Vin 024687
�B�:

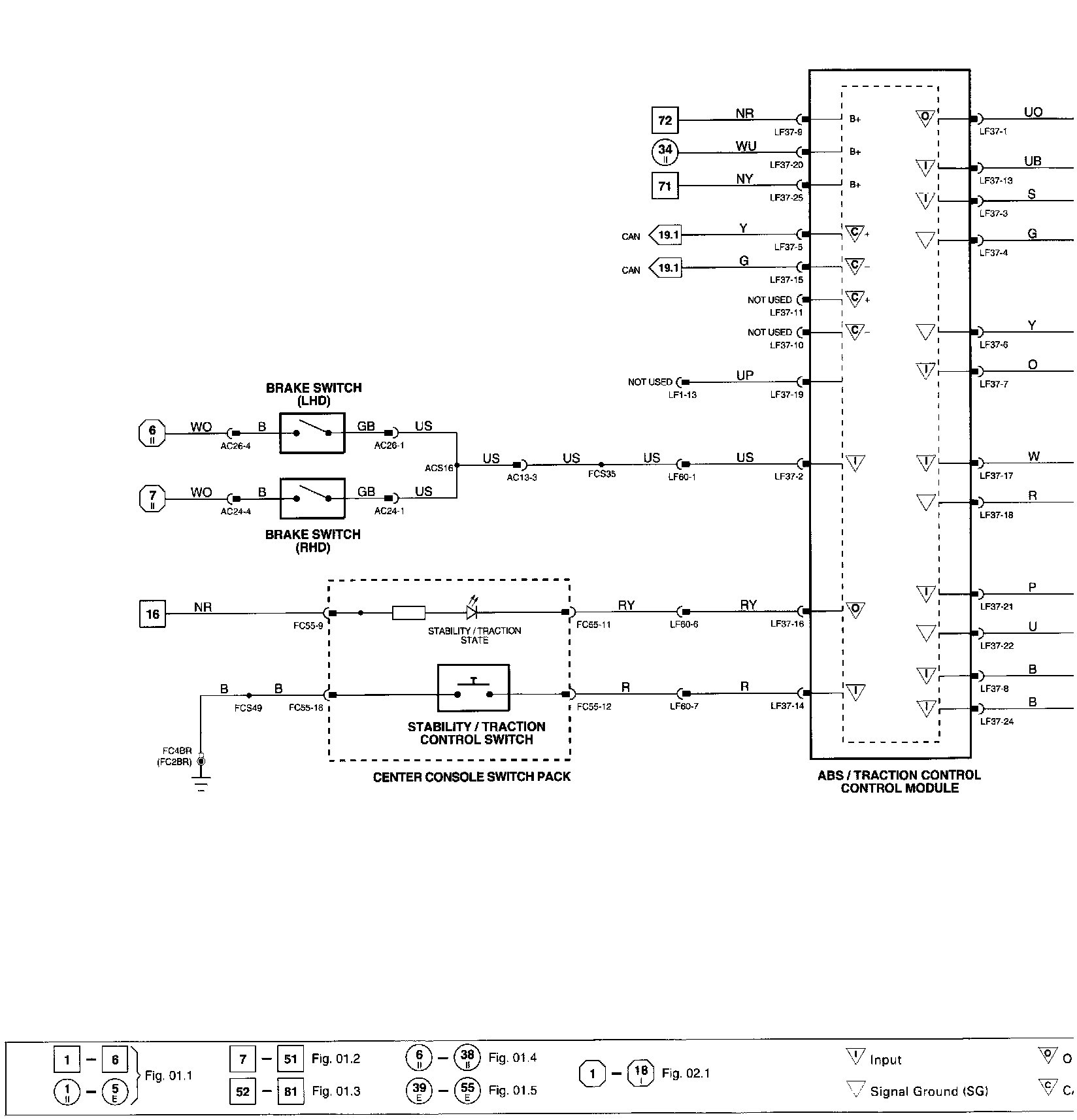

Wiring Diagram
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

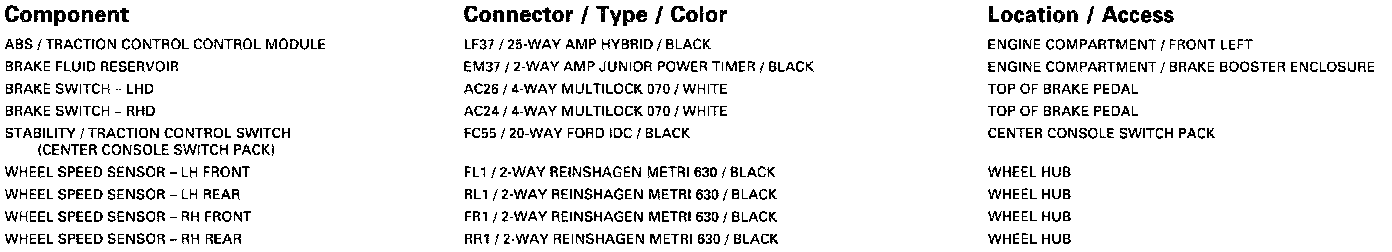

Component Information

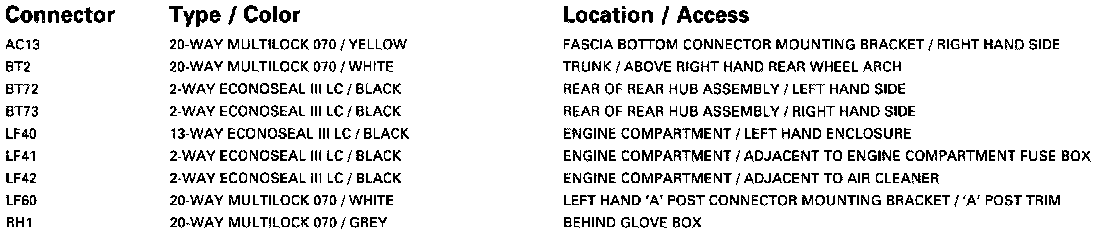

Harness to Harness Connector Information

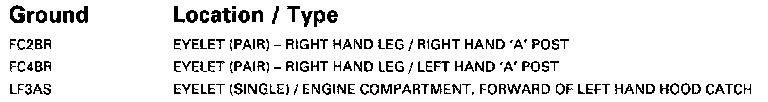

Ground Information

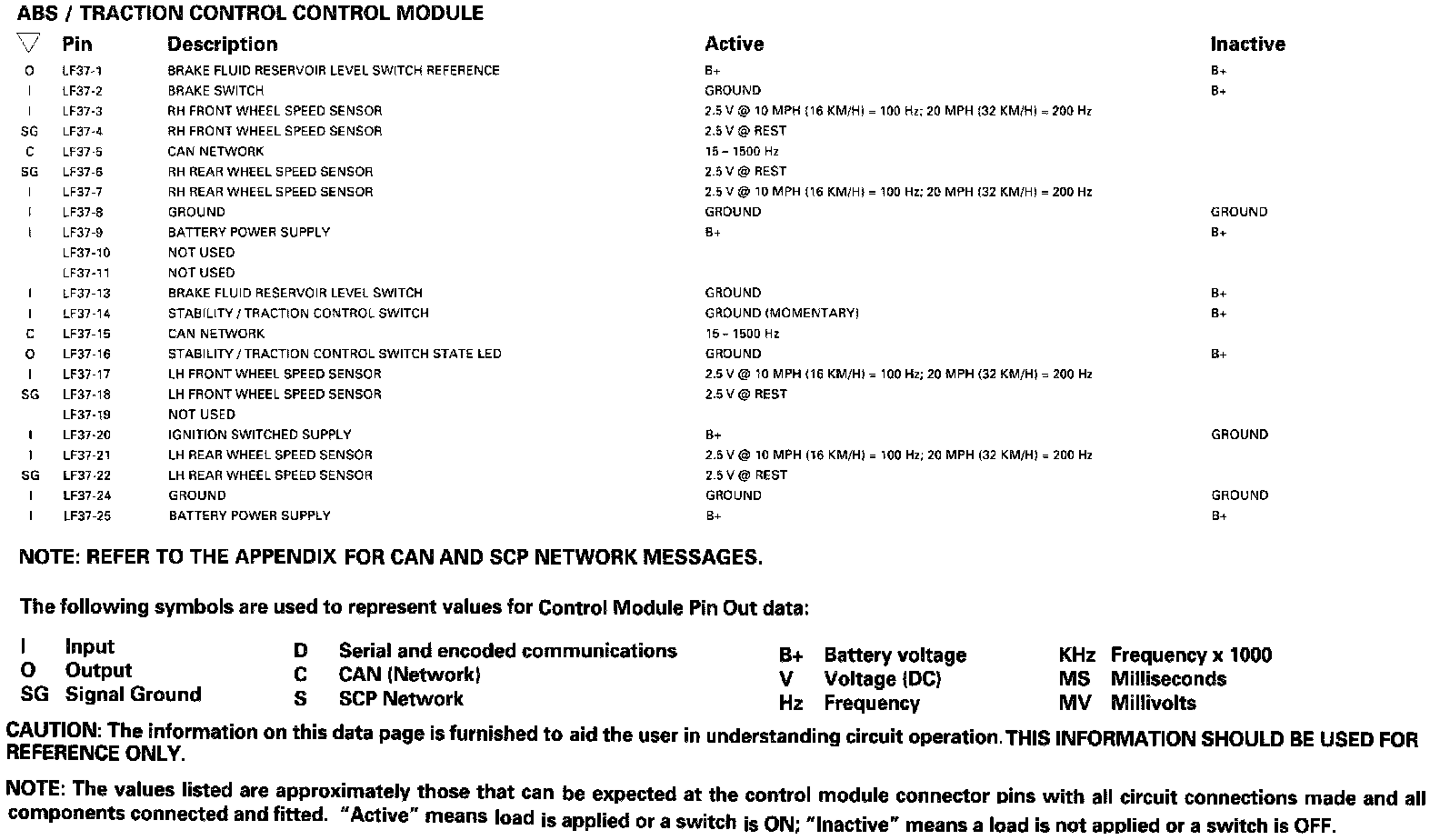

Control Module Pin Out Information
