Suspension Control ( Automatic - Electronic )
Suspension Control ( Automatic - Electronic )

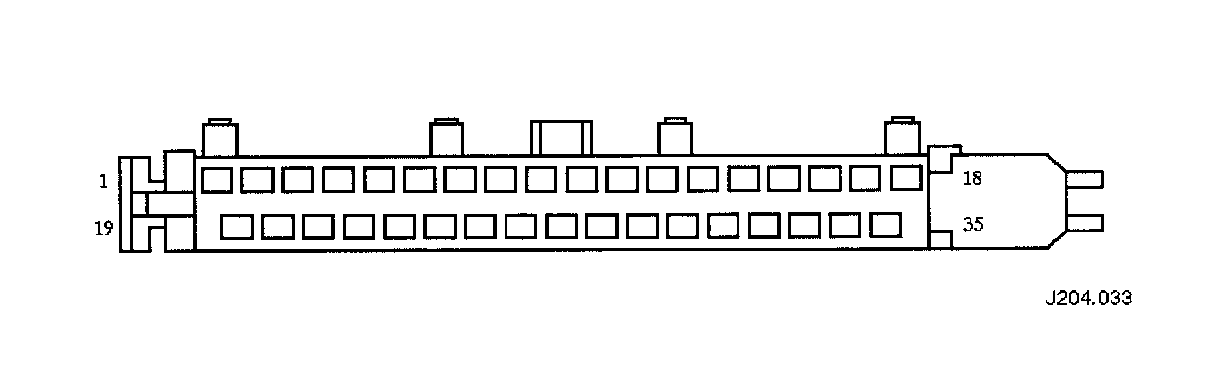

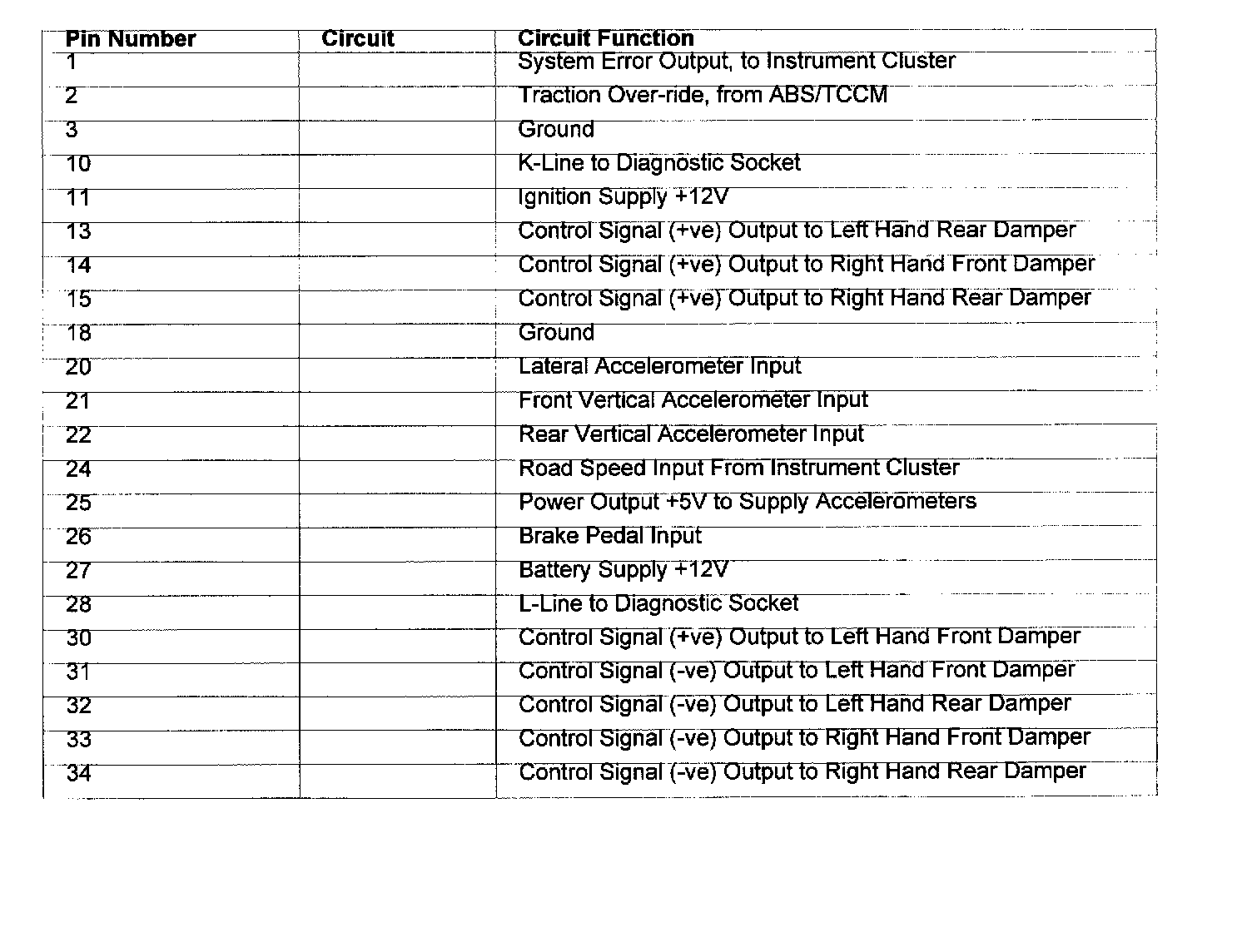

Connector Pin Identity Chart for BT069
