Connector Pins Identification



Connector Pins Identification





Connector Pin Identity Chart for EM061





Connector Pin Identity Chart for EM062





Connector Pin Identity Chart for CC008





Connector Pin Identity Chart for GB001





Connector Pin Identity Chart for EM044



Connector Pins Identification

Connector Pin Identity Chart for EM007

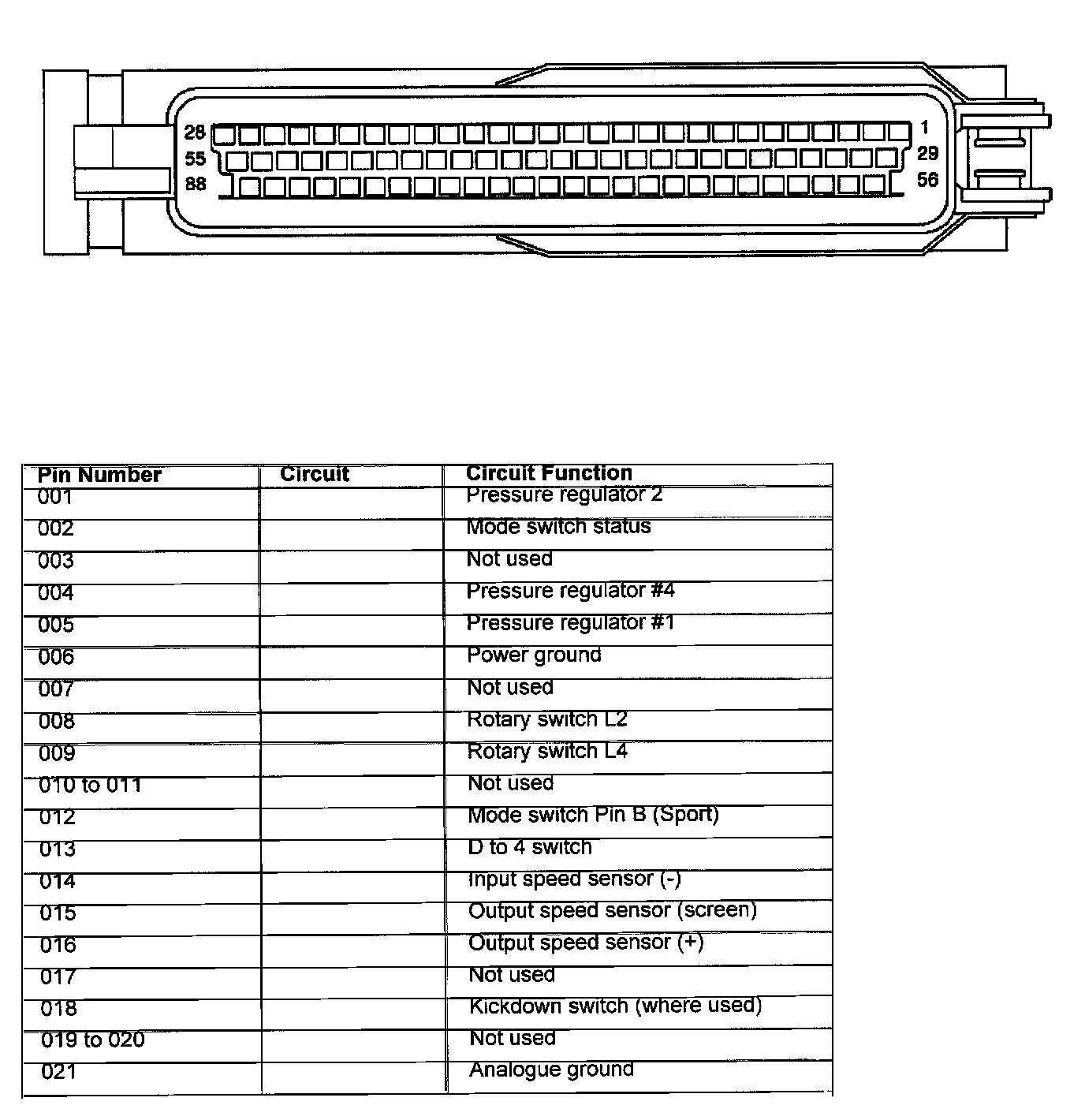

Part 1 of 2

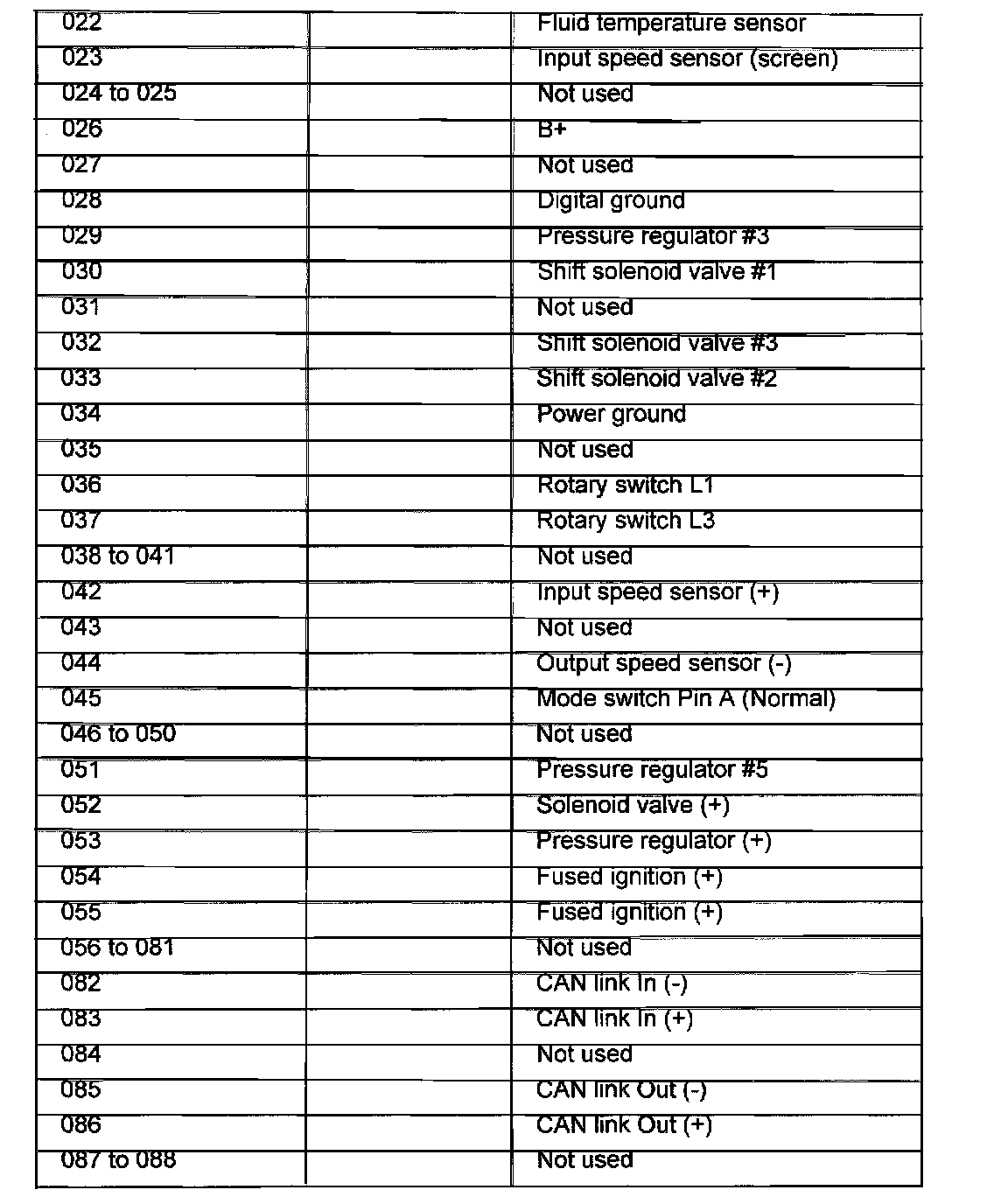

Part 2 of 2





Connector Pin Identity Chart for FC088

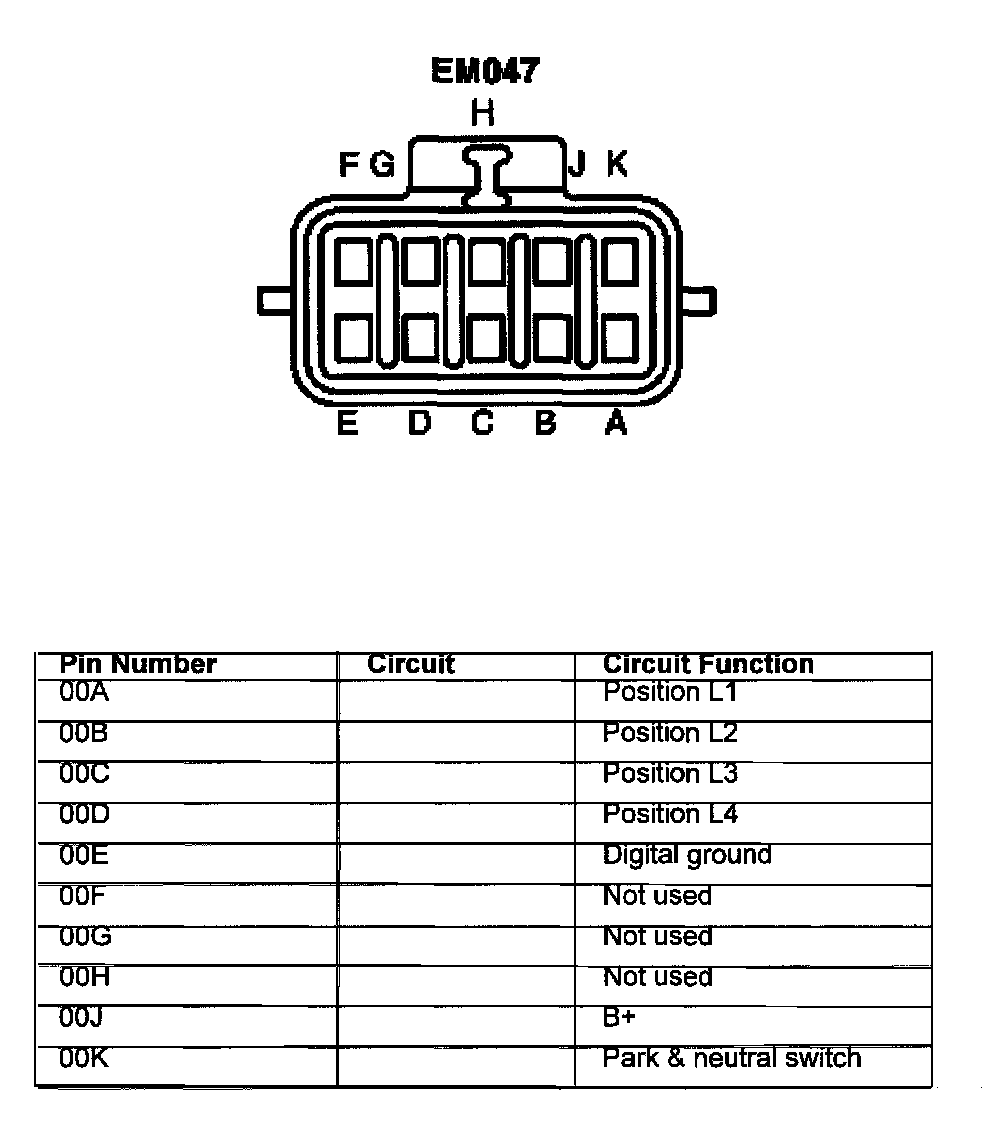

Connector Pin Identity Chart for EM047

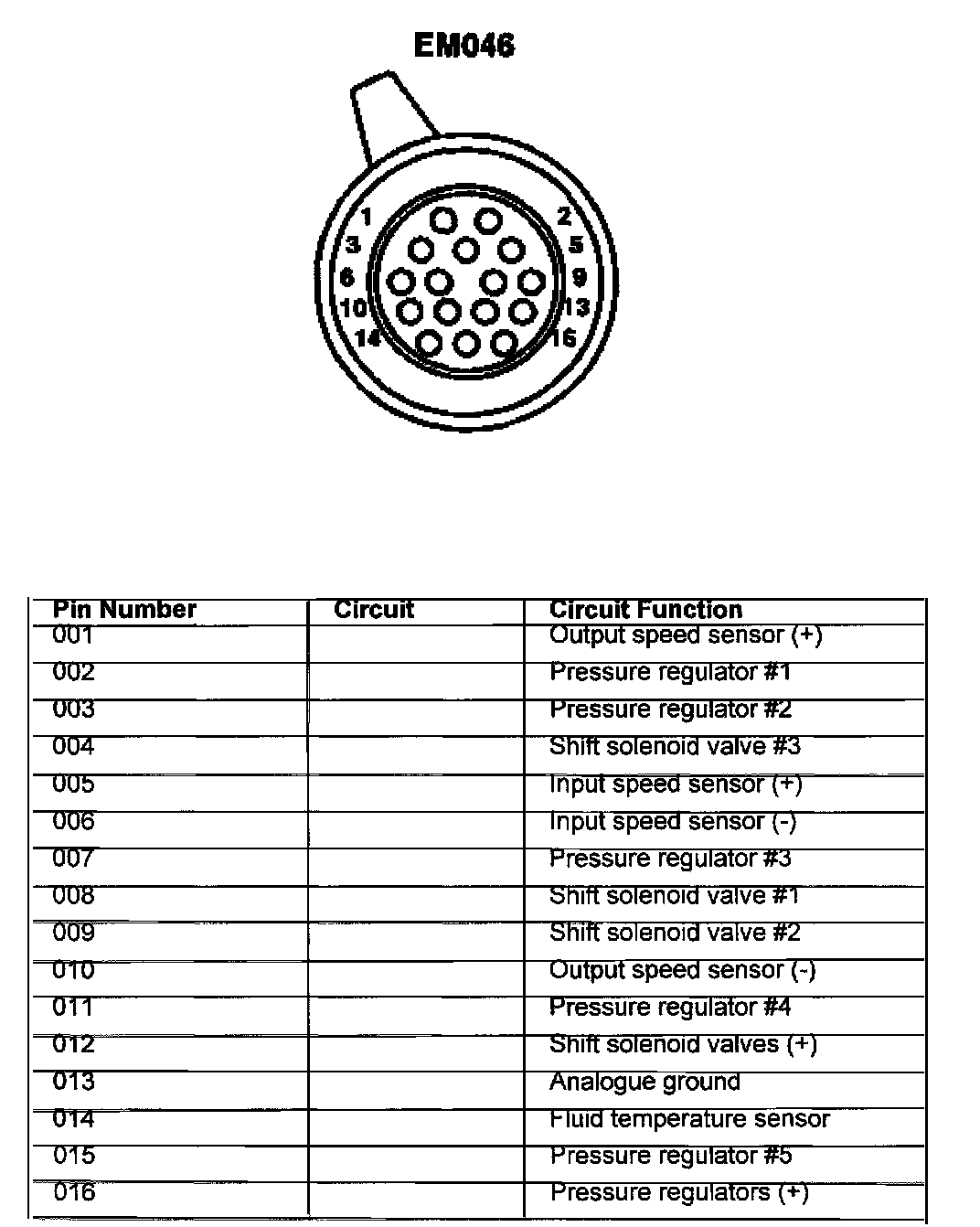

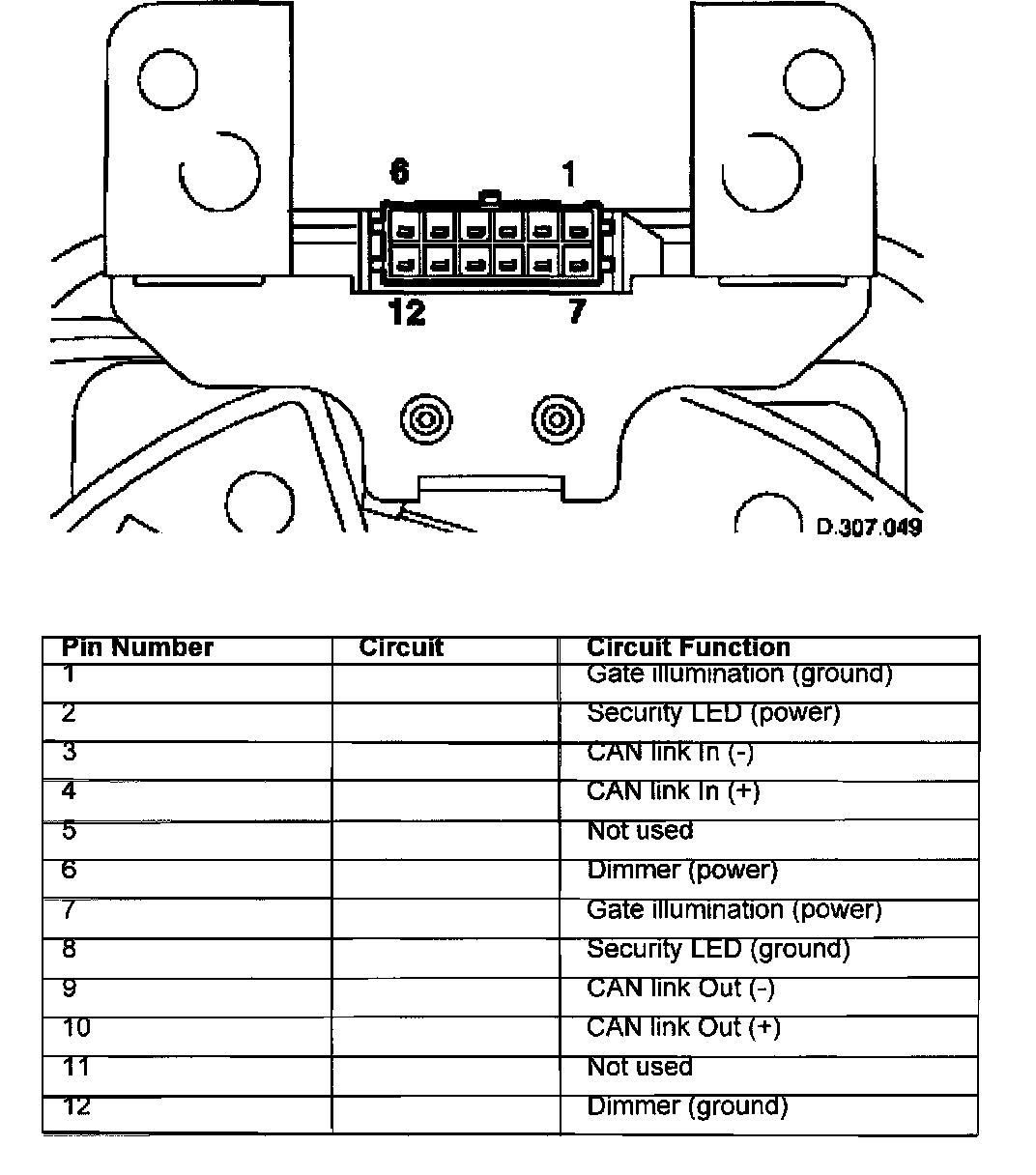

Connector Pin Identity Chart for EM046
