Paint - Codes

501-20

DATE
2/98

V8 XJ Series/XK8

MODEL
1998 MY-ON XK8 Range
1998 MY-ON V8 XJ Series

VIN
018108-ON
812256-ON

Paint Codes - 1998 MY

This Technical Bulletin provides supplementary information. It should be read in conjunction with Technical Bulletin 501-09.

Issue:

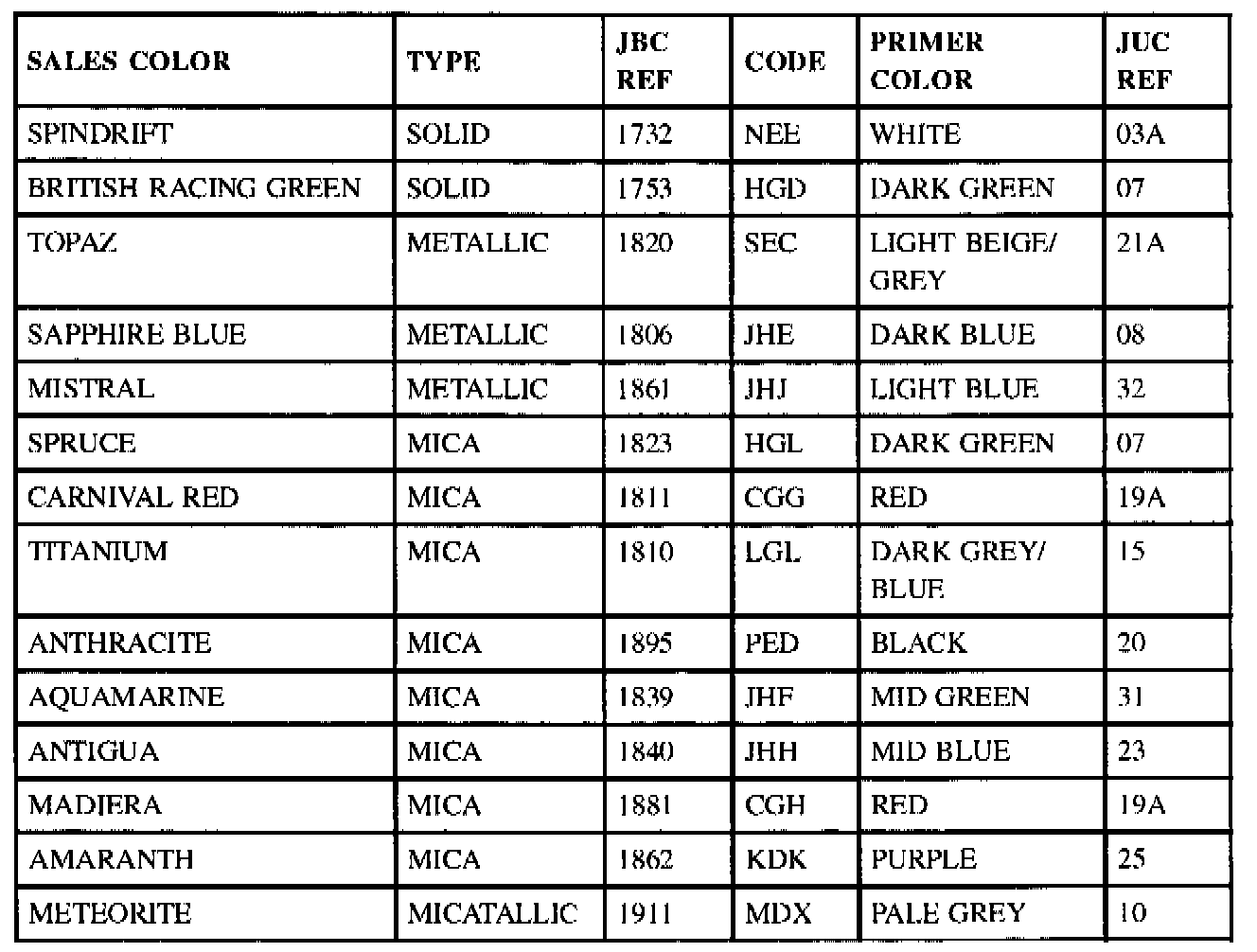

The chart provides full details of paint colors and sealer coats applicable to 1998 Model Year vehicles.

Note that basecoat paints identified by 4-digit JBC references which begin with 1 (eg 1732 SPINDRIFT) are water-based paints.
