Non-Rolling Code Garage Door Opener (RED-LED)

Note:
The GDO may not program to older garage door openers that do not meet current Federal Consumer Safety Standards.

1. Switch off the engine.

2. Decide which of the four channels you wish to train.

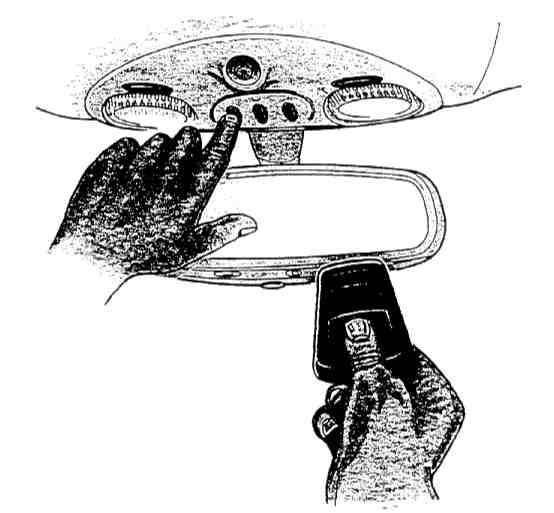

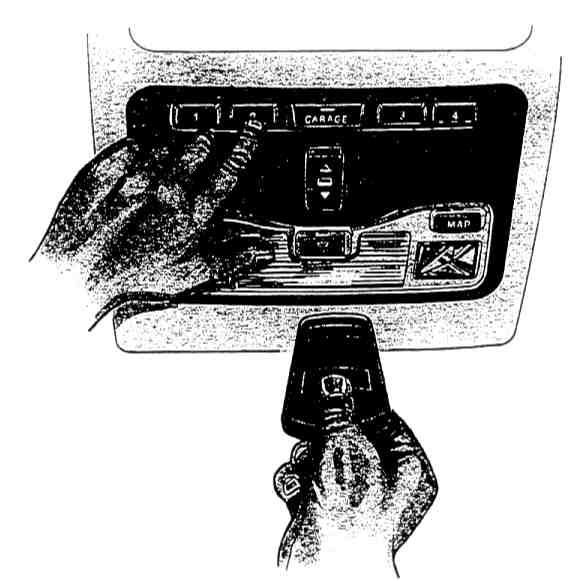

3. Hold the end of your hand held transmitter against the roof console just forward of the courtesy light and map lights, as shown in Illustrations 1 and 2.

4. Using both hands, press both the hand held transmitter button and the selected channel button on the roof console. DO NOT RELEASE EITHER button until step 5 has been carried out.

5. Hold down both buttons until you see the red light marked "GARAGE" on the roof console flash slowly at first, then rapidly. This could take up to one minute, or more. Release both buttons when the red light flashes rapidly. This rapid flashing indicates that the GDO transmitter has been successfully programmed to match your hand held transmittal

The old hand held transmitter can now be set aside and the roof console button used in future.

Note:
(Canada only) During programming, the hand held transmitter may automatically stop transmitting after one or two seconds, which may not be long enough for the GDO to be programmed. If you are programming using one of these transmitters, continue to press the selected channel button while pressing the hand held transmitter button every two seconds. This action may have to be repeated several times to achieve successful programming; Indicated by rapid flashing of the red "GARAGE" light....

Program the other channels, as required, using hand held transmitters previously used for other electronic services.
