CD Changer: Service and Repair




Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove RH side liner from trunk.







3. Premium ICE only:

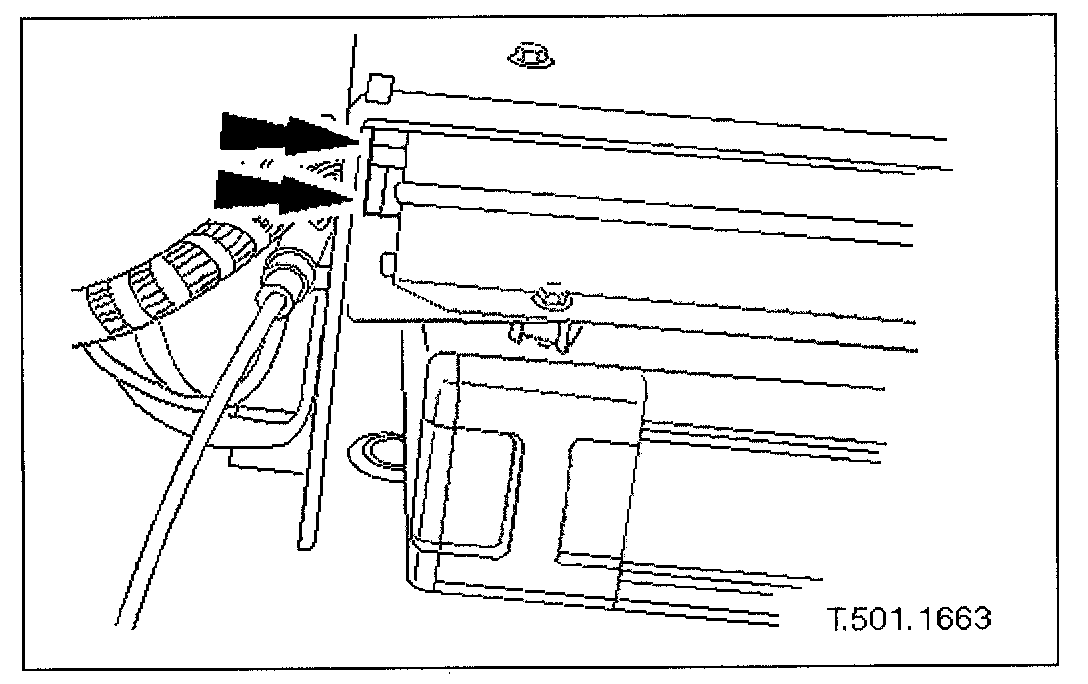

Disconnect amplifier harness multiplugs.

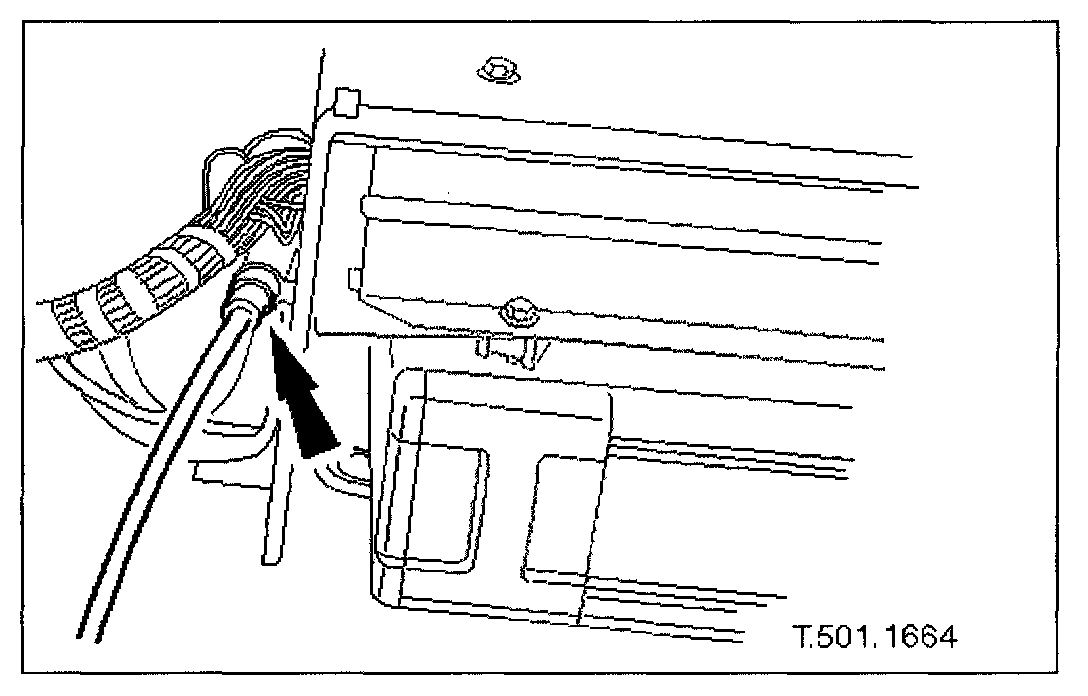

4. Disconnect CD autochanger data cable.

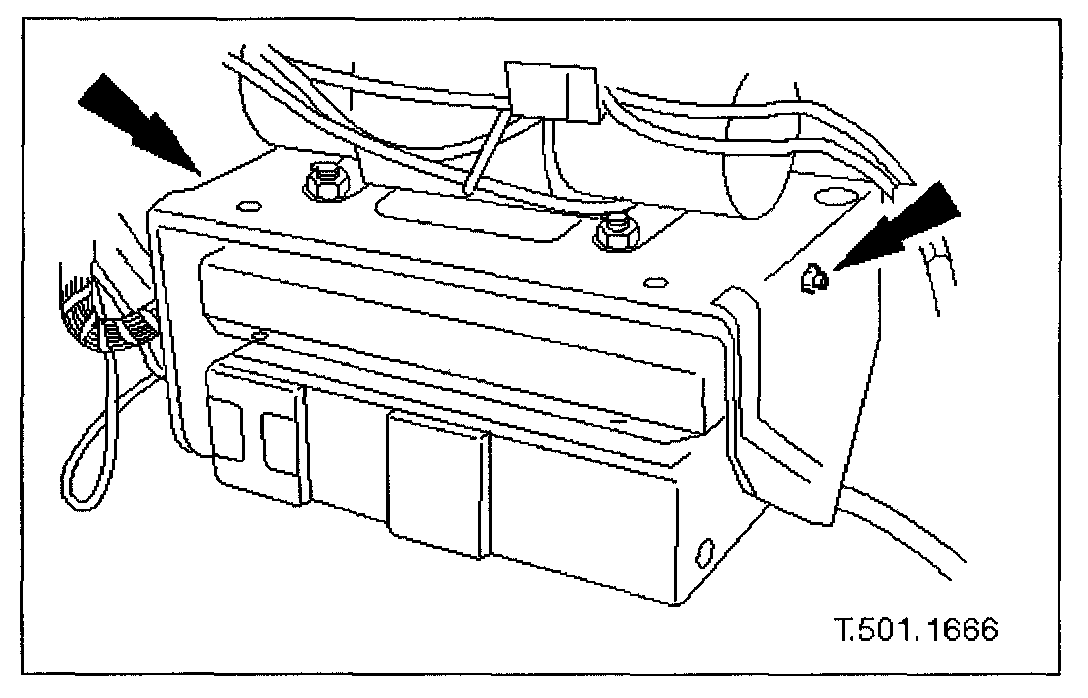

5. Remove upper bolts securing autochanger mounting bracket to outer mounting bracket.







6. Remove side bolts securing autochanger mounting bracket to outer mounting bracket

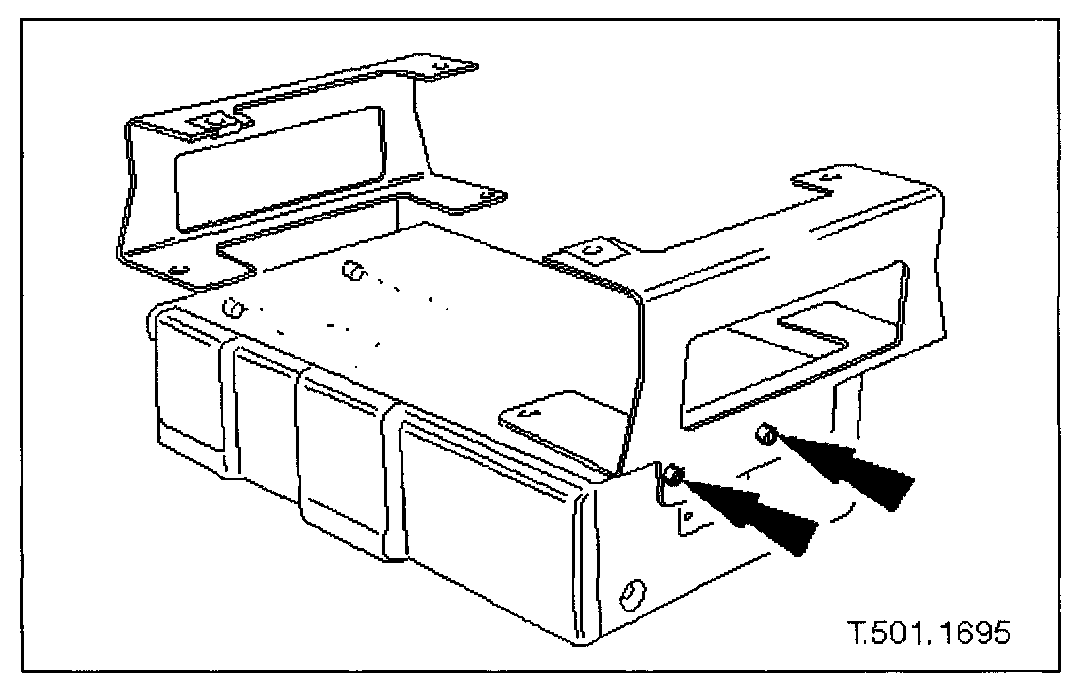

7. Withdraw autochanger/mounting bracket assembly from trunk and remove four bolts securing autochanger to bracket.

Installation
1. Position autochanger on mounting bracket and fit and install securing bolts.
2. Position autochanger/mounting bracket assembly in trunk.
3. Install upper bolts securing autochanger mounting bracket to outer mounting bracket.
4. Install side bolts securing autochanger mounting bracket to outer mounting bracket.
5. Connect amplifier harness multiplugs.
6. Connect CD autochanger data cable
7. Install trunk RH liner.
8. Connect ground cable to battery terminal and install battery cover. Service and Repair
