Amplifier: Service and Repair

Hardon/Karmen Amplifier, Premium ICE Only

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove RH side liner from trunk.





3. Disconnect amplifier harness multiplugs.

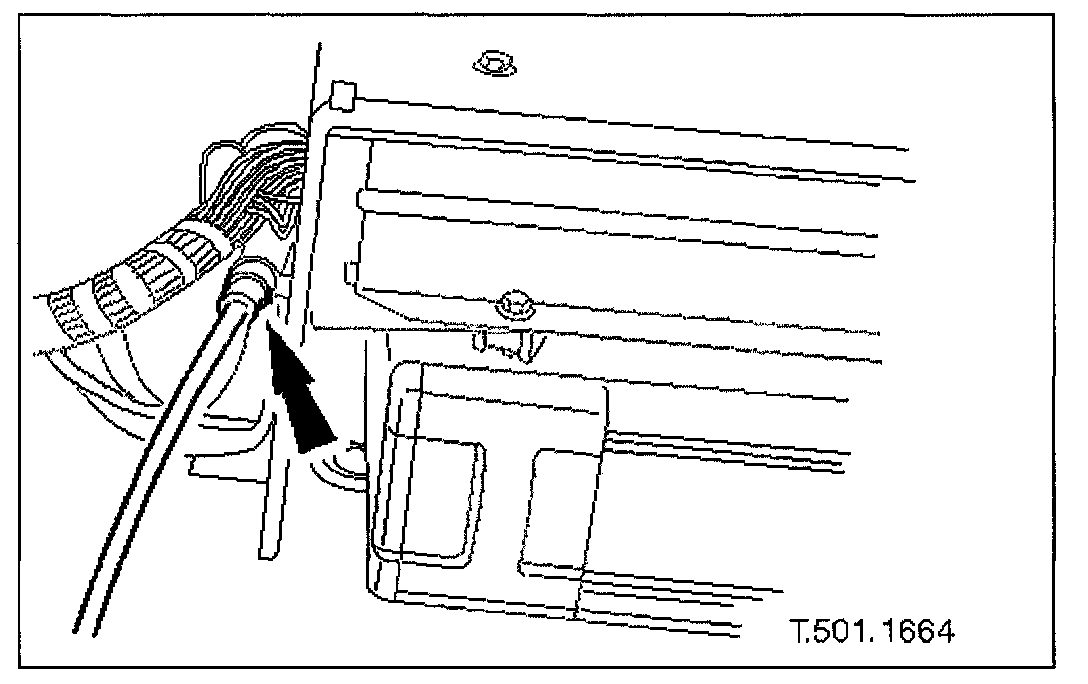

4. Disconnect CD autochanger data cable.

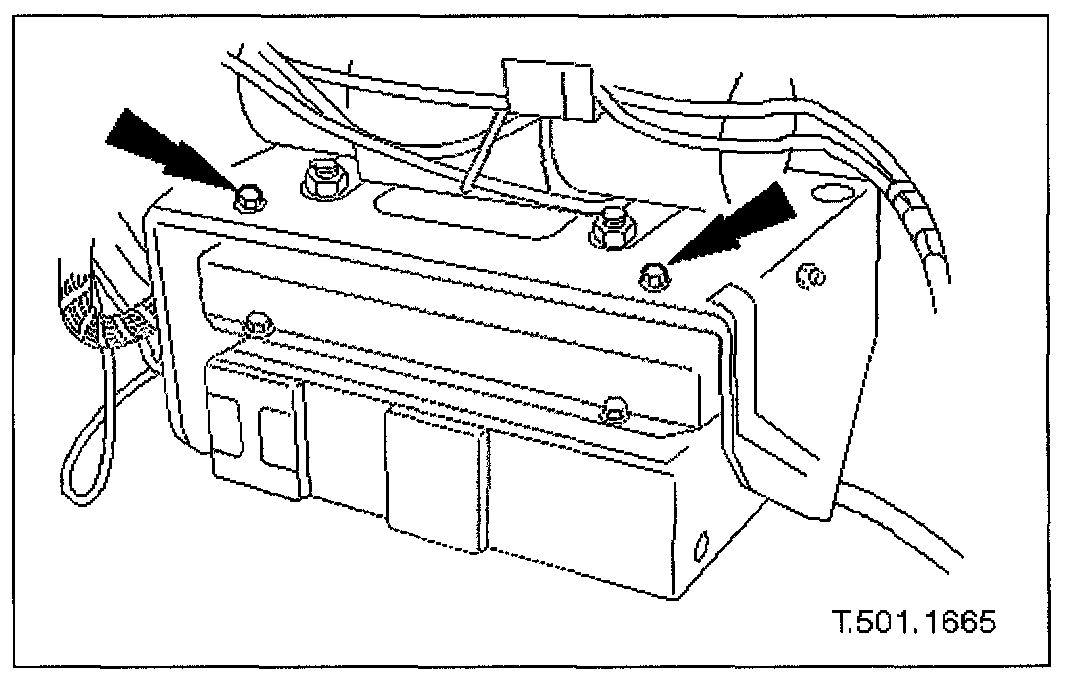

5. Remove upper bolts securing amplifier mounting bracket to outer mounting bracket.

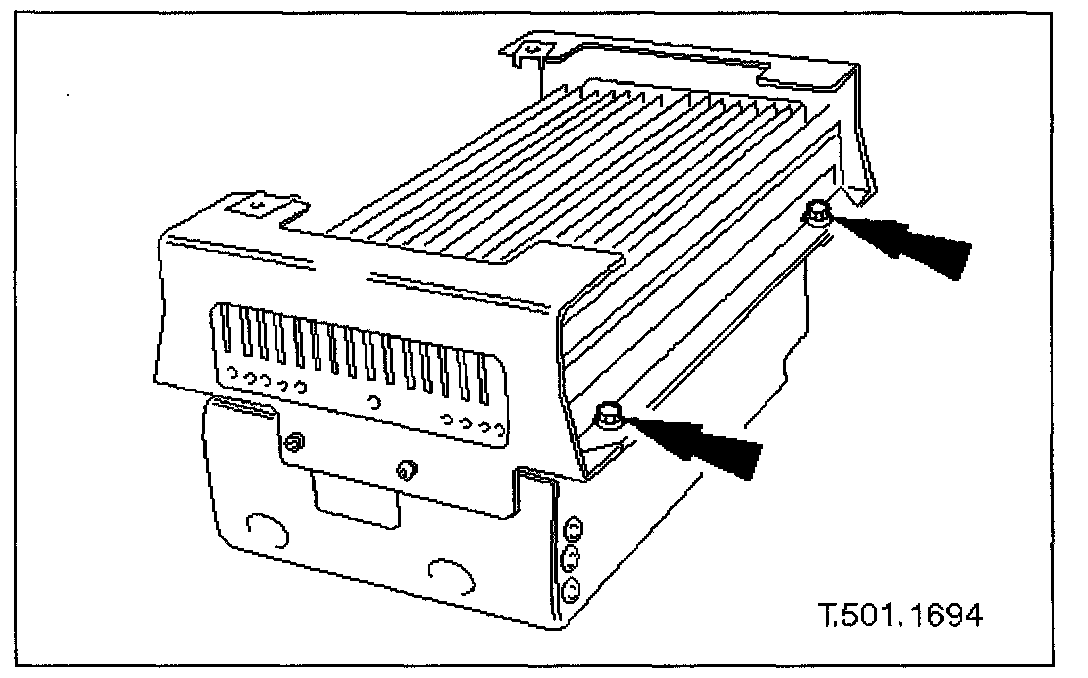

6. Remove side bolts securing amplifier mounting bracket to outer mounting bracket.





7. Withdraw amplifier/mounting bracket assembly from trunk and remove bolts securing amplifier to bracket.


Installation
1. Position amplifier on mounting bracket and install securing bolts.
2. Position amplifier/mounting bracket assembly in trunk.
3. Install upper bolts securing amplifier mounting bracket to outer mounting bracket.
4. Install side bolts securing amplifier mounting bracket to outer mounting bracket.
5. Connect amplifier harness multiplugs.
6. Connect CD autochanger data cable.
7. Install trunk RH liner.
8. Connect ground cable to battery terminal and install battery cover. See Battery Reconnection Procedure. Service and Repair
