P1368
>>

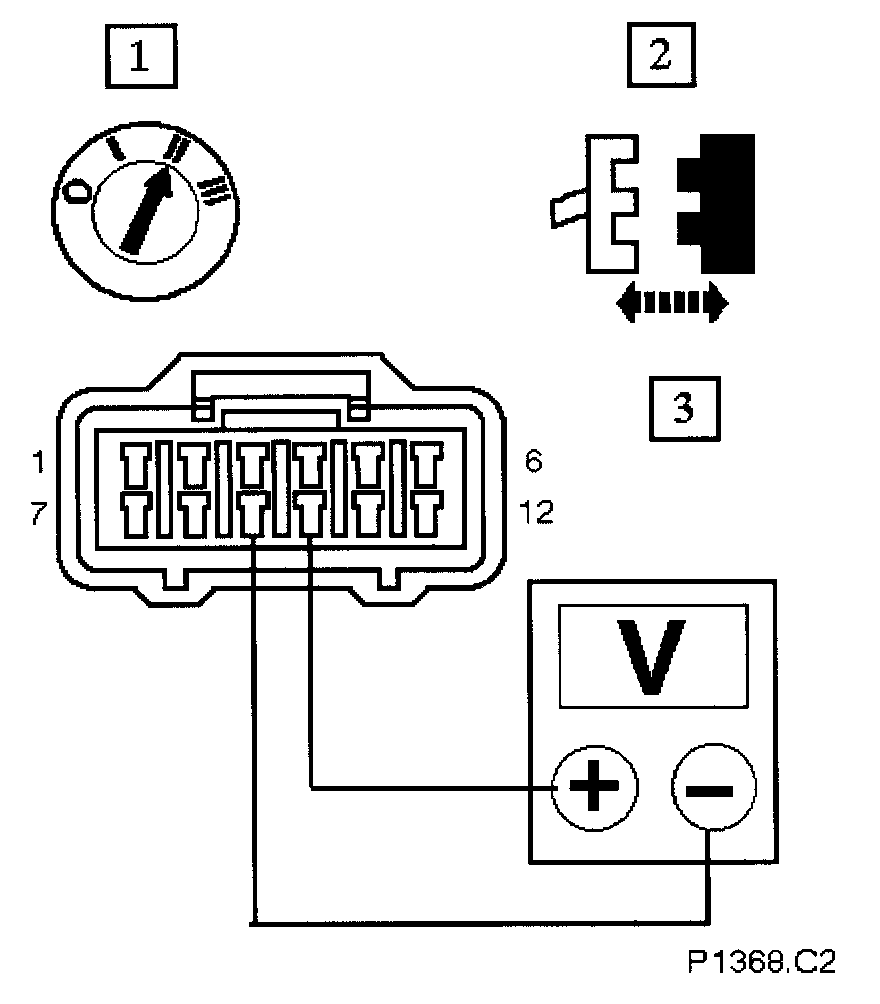

C2: Check Amplifier Supply
C2: Check Amplifier Supply
With EM029 disconnected, measure the voltage between EM029/009 & EM029/010
B+?
Yes
Go to
C3
No
Go to
A4
to A8
