B2: Check Amplifier Supply

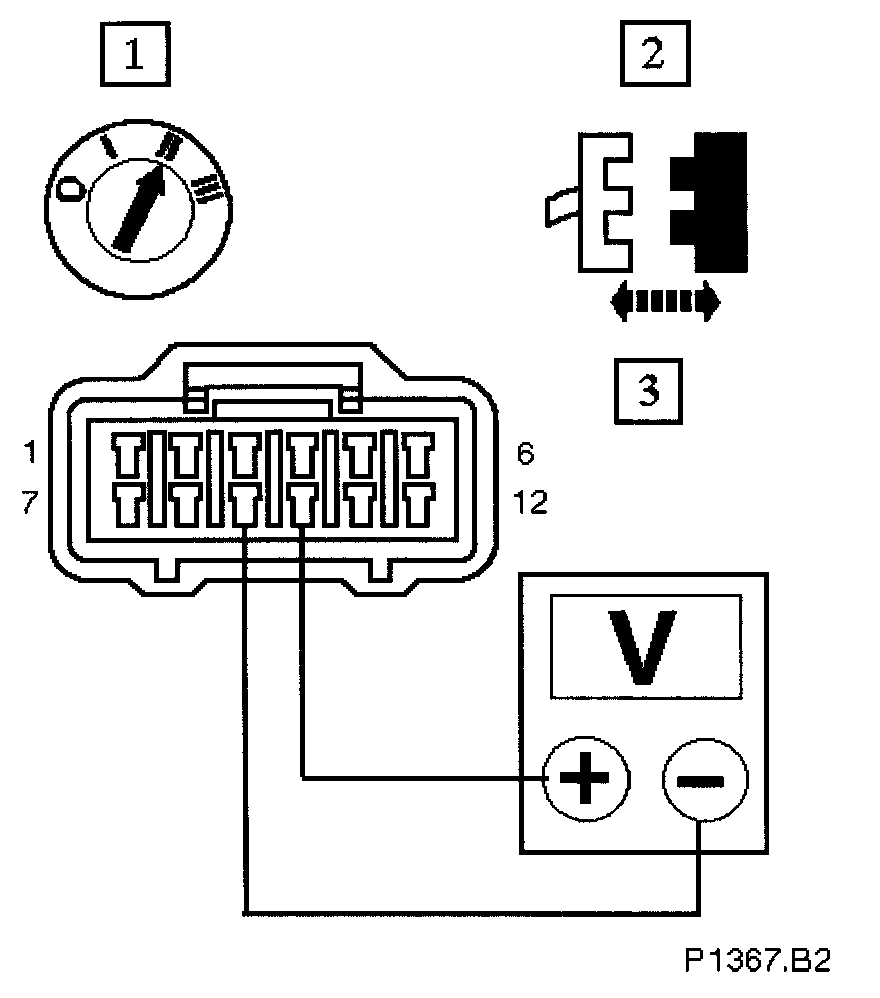

With EM027 disconnected, measure the voltage between EM027/009 & EM027/010

B+?

Yes
Go to B3

No
Go to A4 to A8
