F7: Check Crank Dynamic Input Signal - (From BPM)

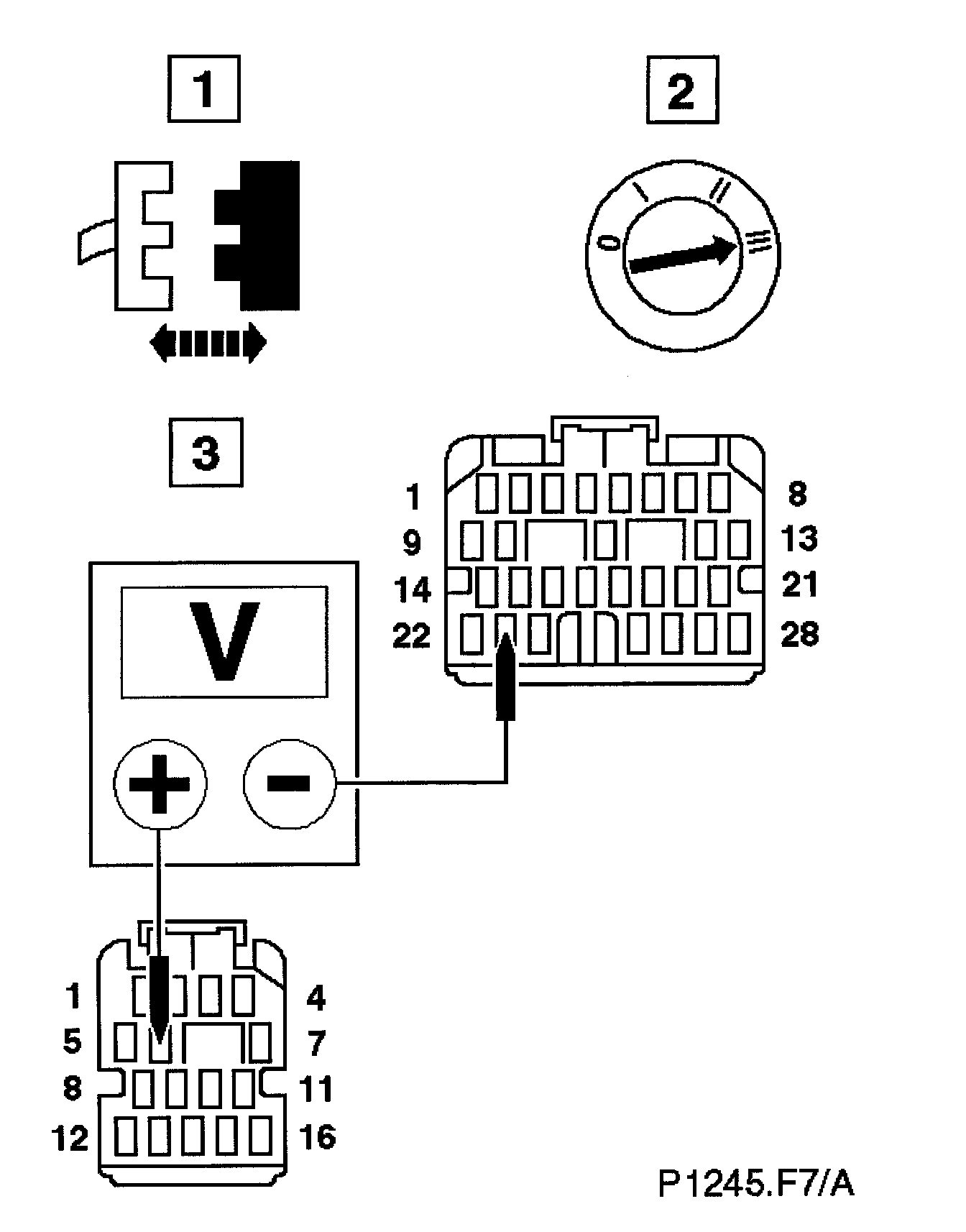

With, conditions as F6 and with the starter operational, measure the voltage between EM011/006 and EM010/023

- Has the voltage dropped to between 0.7 and 1.0V ?
Yes
GO to F8 F8: End
No
Renew the ECM or
Renew BPM (contact Jaguar Service)
GO to F8 F8: End
