F6: Check Crank Static Input Signal - (From BPM)

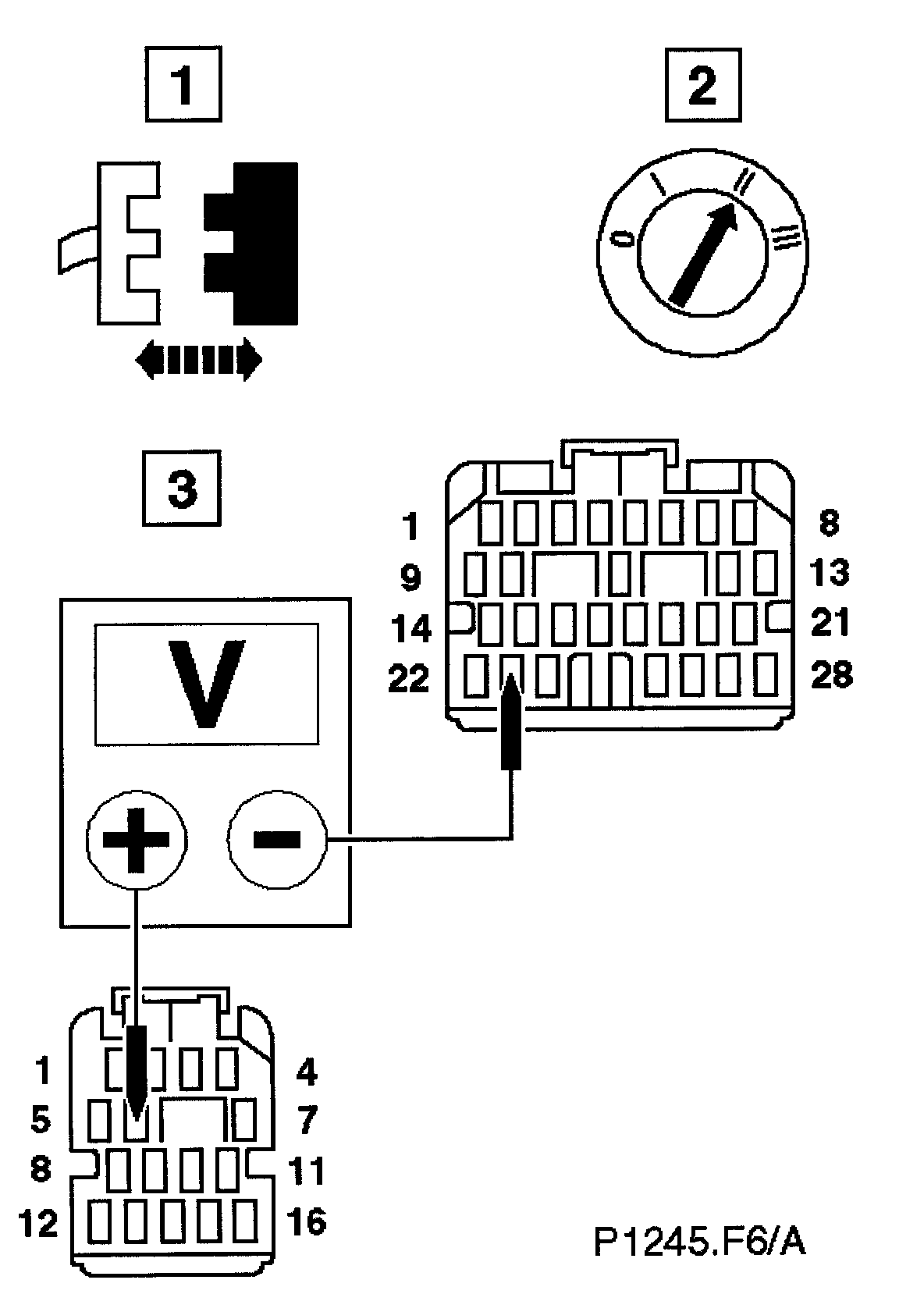

With, EM011 and EM010 disconnected, measure the voltage between EM011/006 and EM010/023

- B+?
Yes
GO to F7 F7: Check Crank Dynamic Input Signal - (From BPM)
No
Inspect EM011 and FC014 for corrosion, bent / pushed back pins or locate and repair the harness / connector EM001 / splice EMS28. Test the system for normal operation 'check'.
