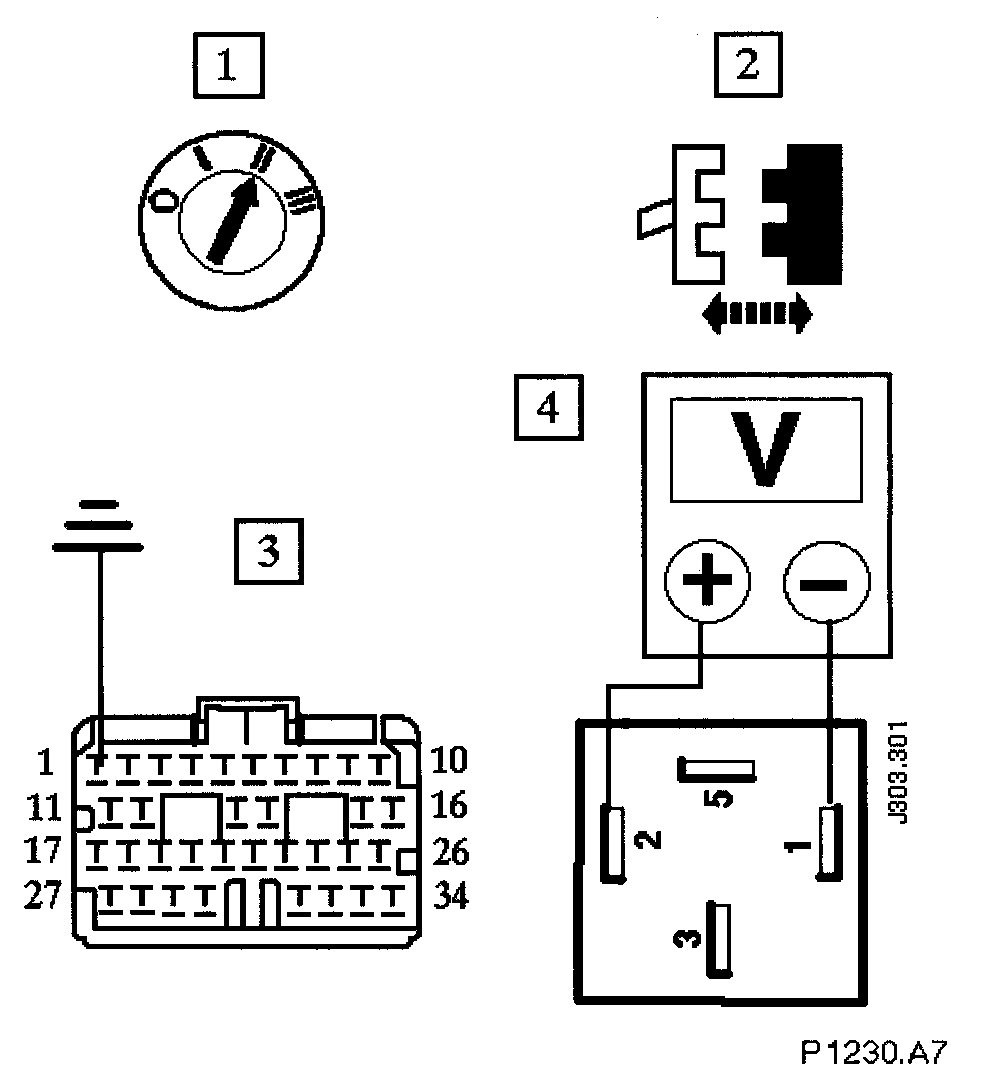

A7: Check B+ At Relay Coil
NOTE: Do not replace relay
Using a link lead, connect EM013/001 to ground BT2AL
3. With ignition energized, check for battery voltage at relay socket between pins 2 & 1
B+?
Yes
Go to A10
No
Go to A8
NOTE: Do not replace relay
Using a link lead, connect EM013/001 to ground BT2AL
3. With ignition energized, check for battery voltage at relay socket between pins 2 & 1
B+?
Yes
Go to A10
No
Go to A8
