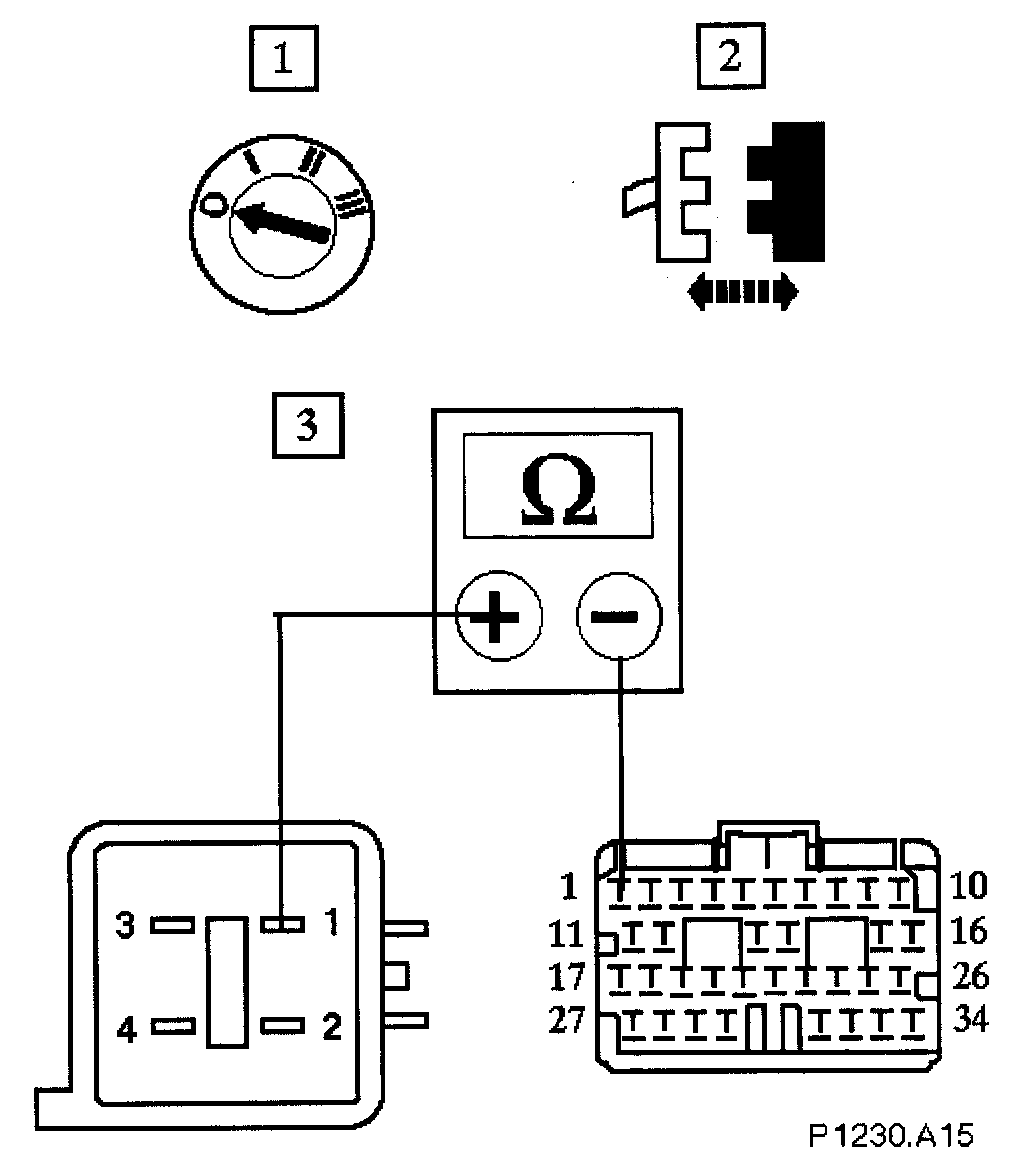

A15: Check Core to Core Insulation

With conditions as in A14, measure the insulation resistance between EM013/001 & BT055/001

Is the resistance > 10 M OHM?

Yes
Reconnect all plugs & replace relay #4
Go to A16

No
