R8: Check B+ At Relay Coil

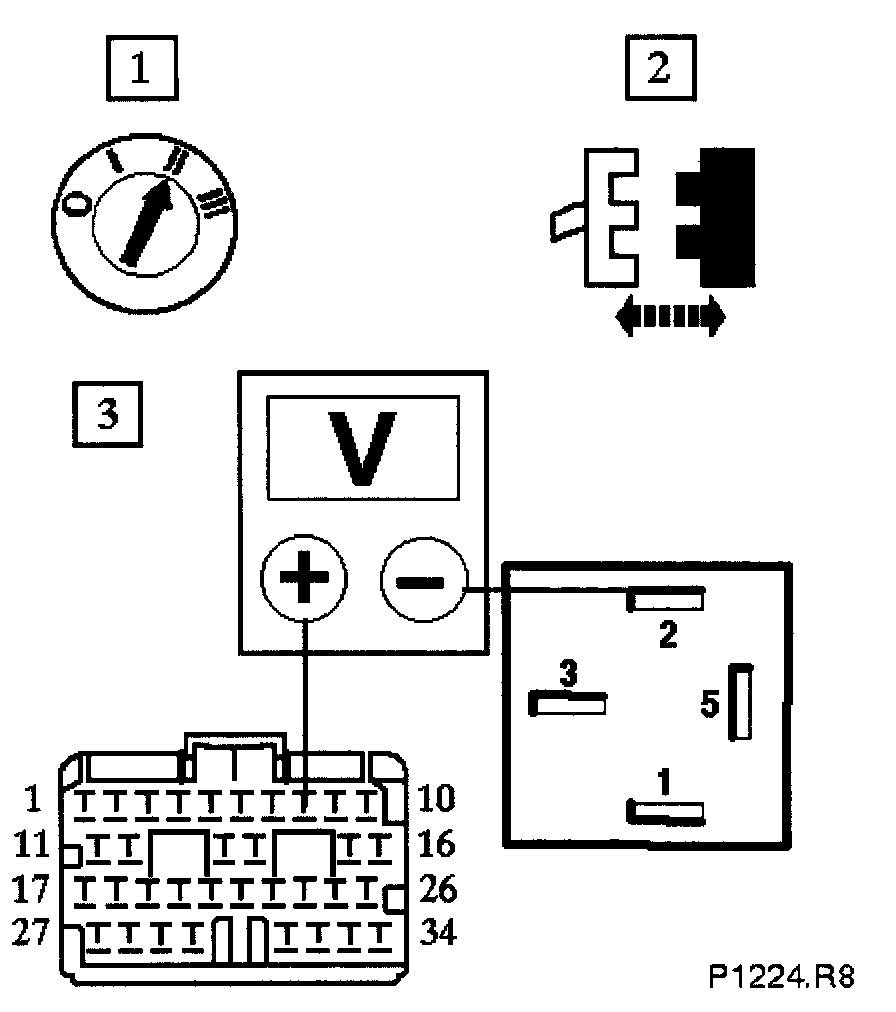

With EM014 disconnected measure the voltage between & EM014/008 & relay socket pin 2

B+?

Yes
Go to R9

No
Inspect connectors EM016, EM019 for bent/pushed back pins or locate & repair the harness/splice EMS30. Test the system for normal operation
