R6: Check Relay Coil Supply

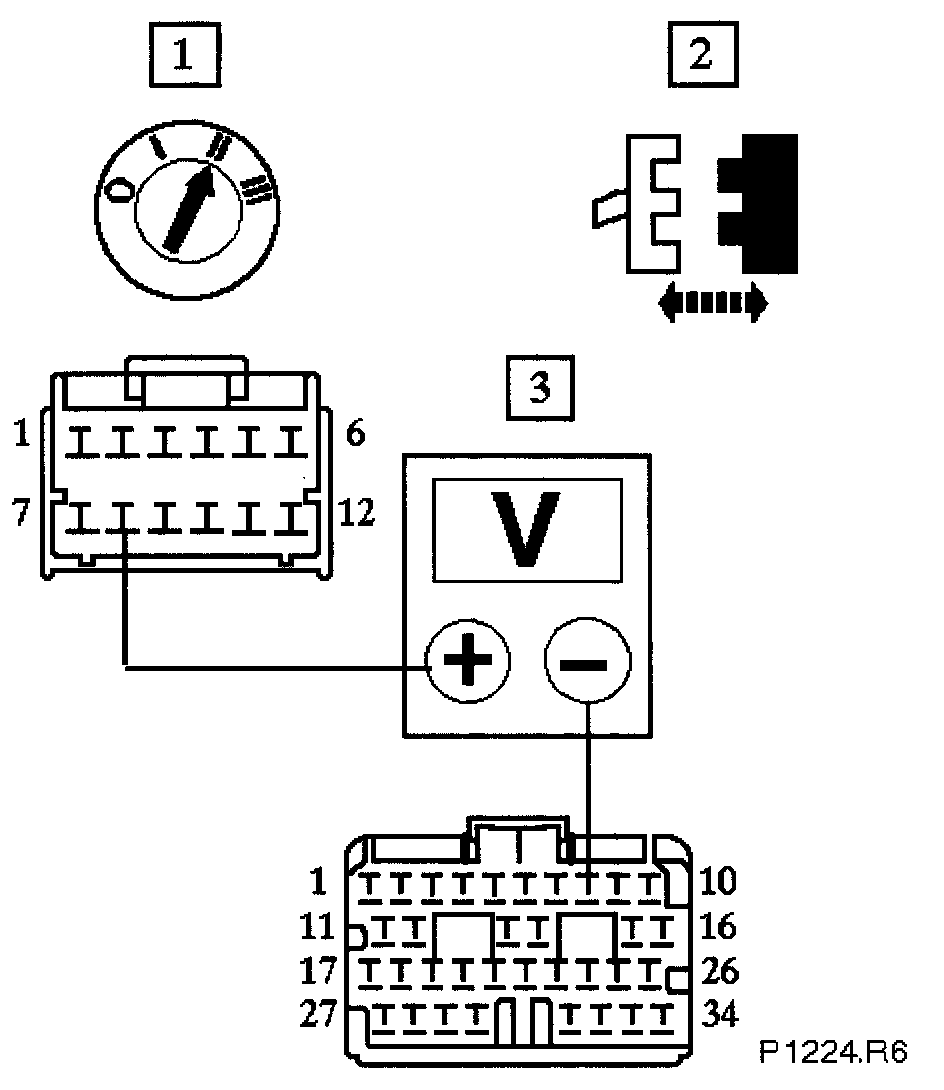

With EM013 & EM014 disconnected measure the voltage between EM013/014 & EM014/008

B+?

Yes
Renew relay
Go to R20

No
Go to R7
