R16: Check For Short to B+

NOTE: Logic change where YES indicates a fault

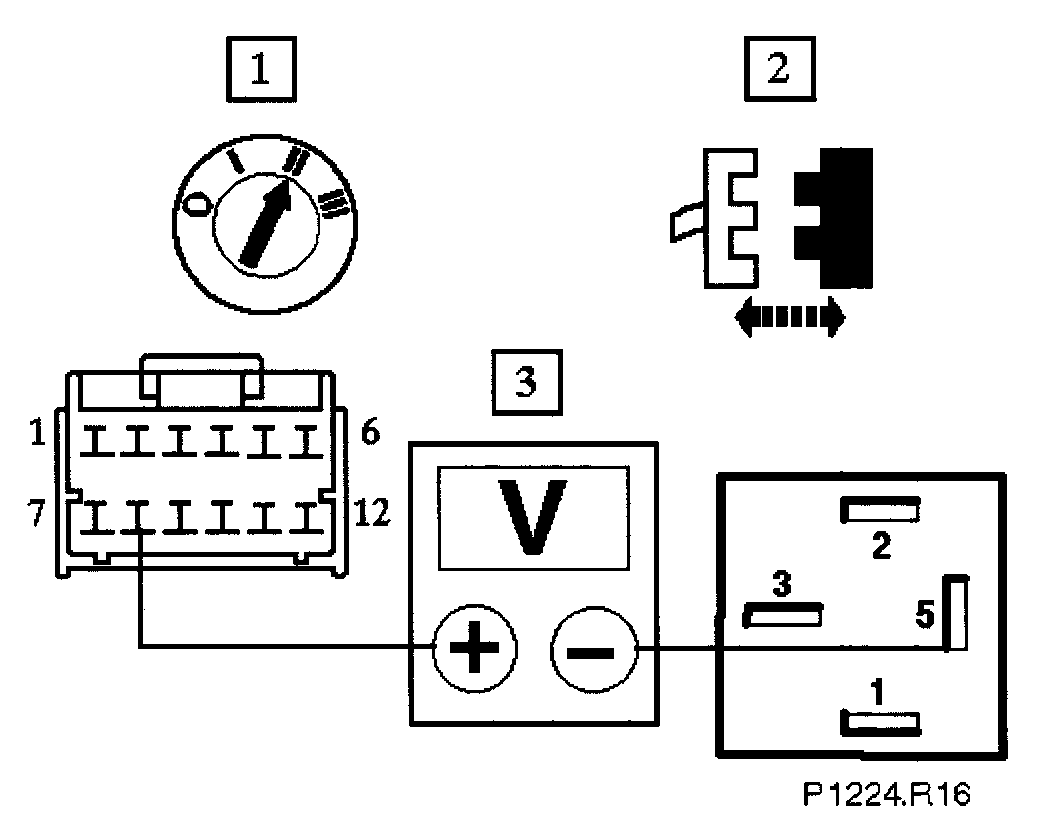

Measure the voltage between EM014/008 & relay socket pin 5

Is the voltage > 0 (zero)V?

Yes
Inspect connectors EM014, EM016, EM019 & relay base for bent/pushed back pins or locate & repair the harness. Test the system for normal operation

No
Reconnect EM012 EM013, & EM015
Go to R17
