B3: Check Current Drawn

NOTE: If fuse F14 has blown, other failures will be present





With EM012 & EM010 disconnected

Use an appropriate link lead to bridge EM010/016 & EM010/022 (to energize EMS control relay)

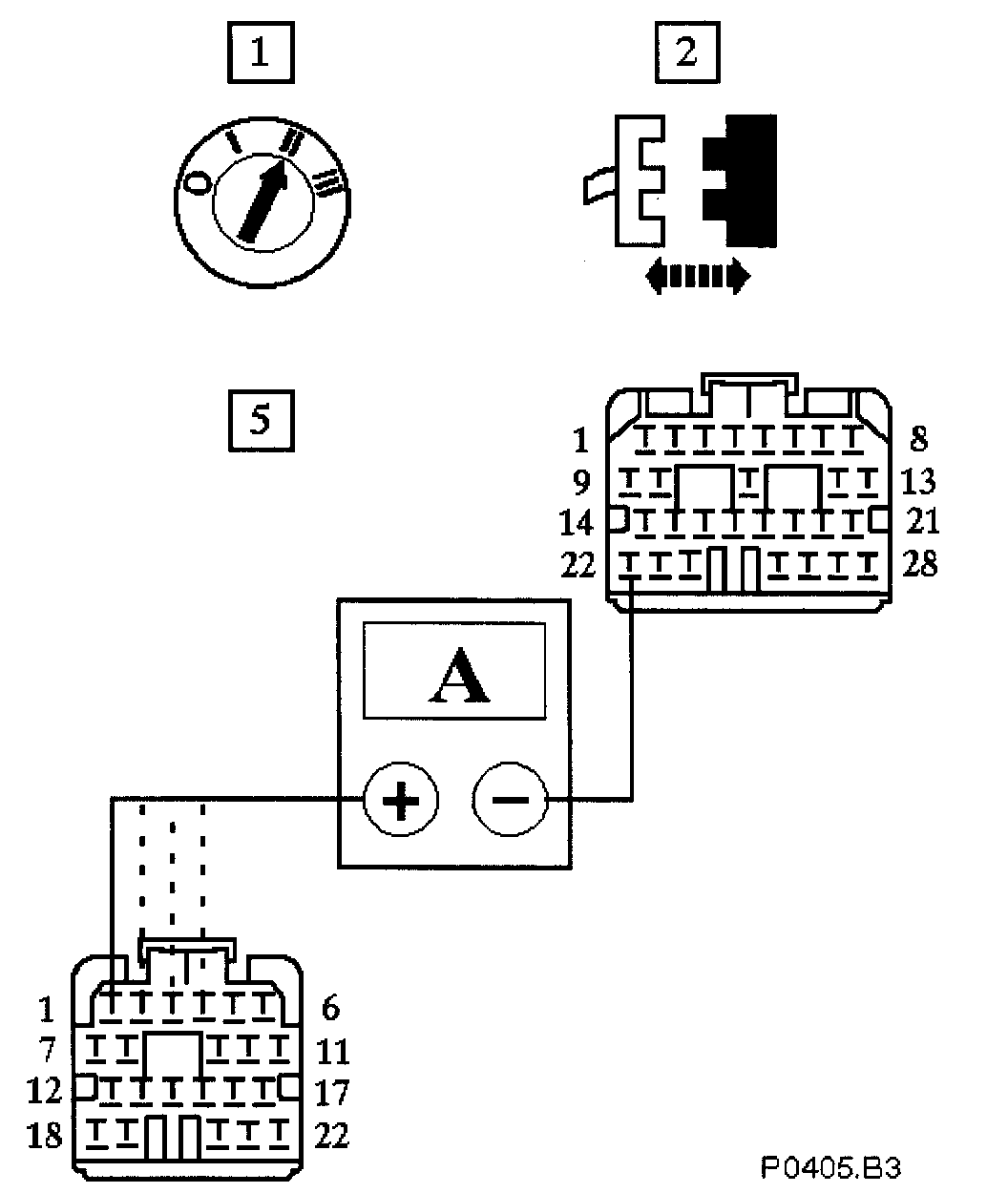

Measure the current between ground EM010/022 & in turn EM012/001; 002; 003; 004

Is the current between 0.3 & 1.0 A?

Yes
Go to B4

No
Go to D1
