D4: Check Harness Short to Chassis

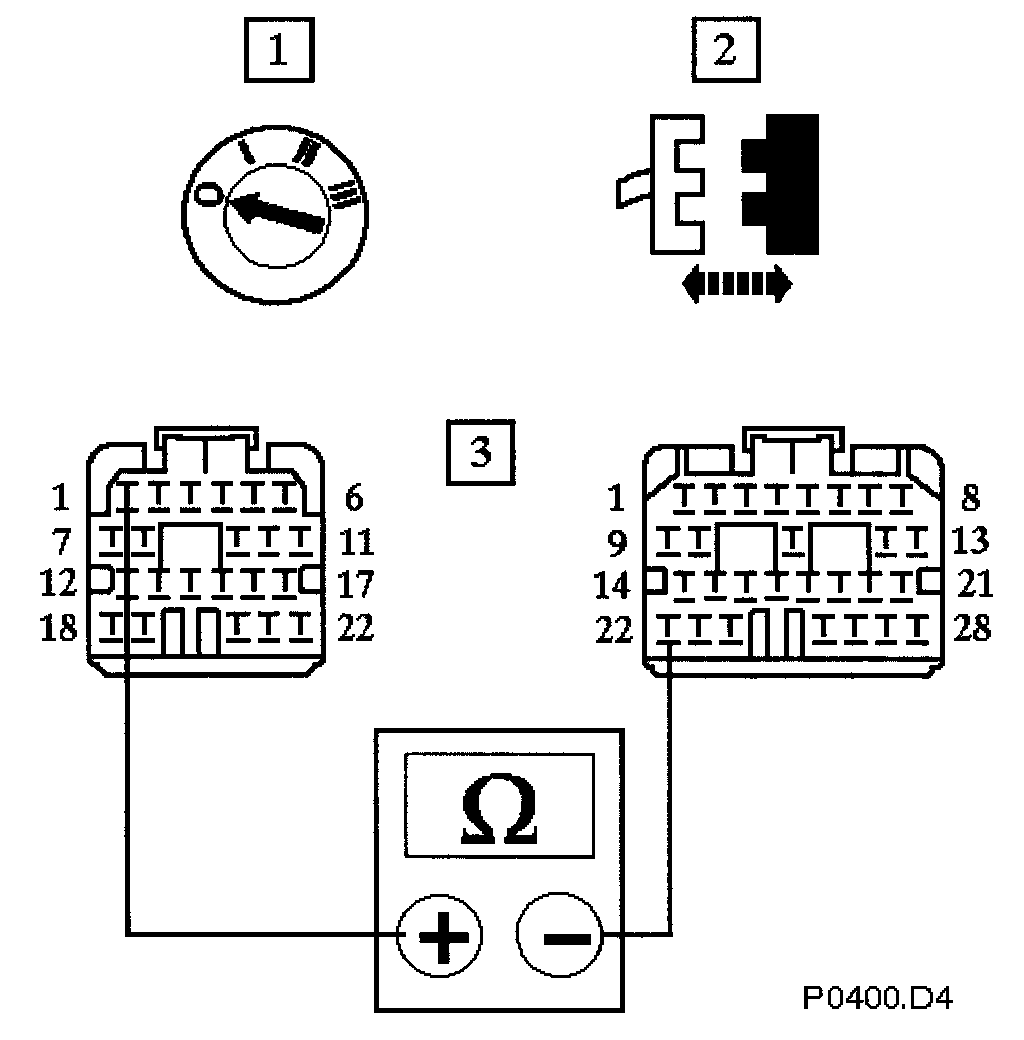

Measure the insulation resistance between EM012/001 & ground EM010/022

Is the resistance > 10M ohms?

Yes
Go to D5

No
Inspect EM010, EM012 & PI034 for corrosion, bent/pushed back pins or locate & repair the harness/connector (PI001)
Go to D9
