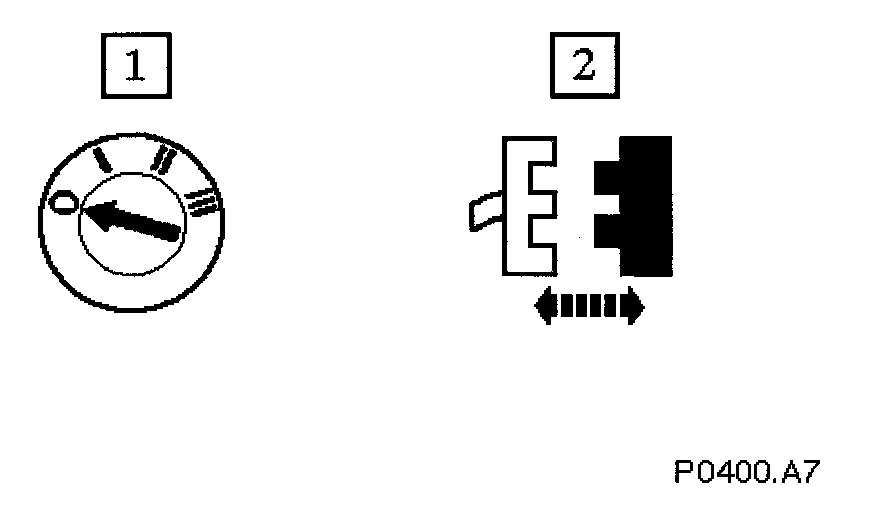

A7: Check EGR Mechanical Condition







Remove the EGR & inspect

Is the valve gummed or jammed?

Yes
Renew the EGR valve Reconnect PI034, EM010 & EM012
Go to A8

No
Go to D1
