F2: Check Sensor Continuity

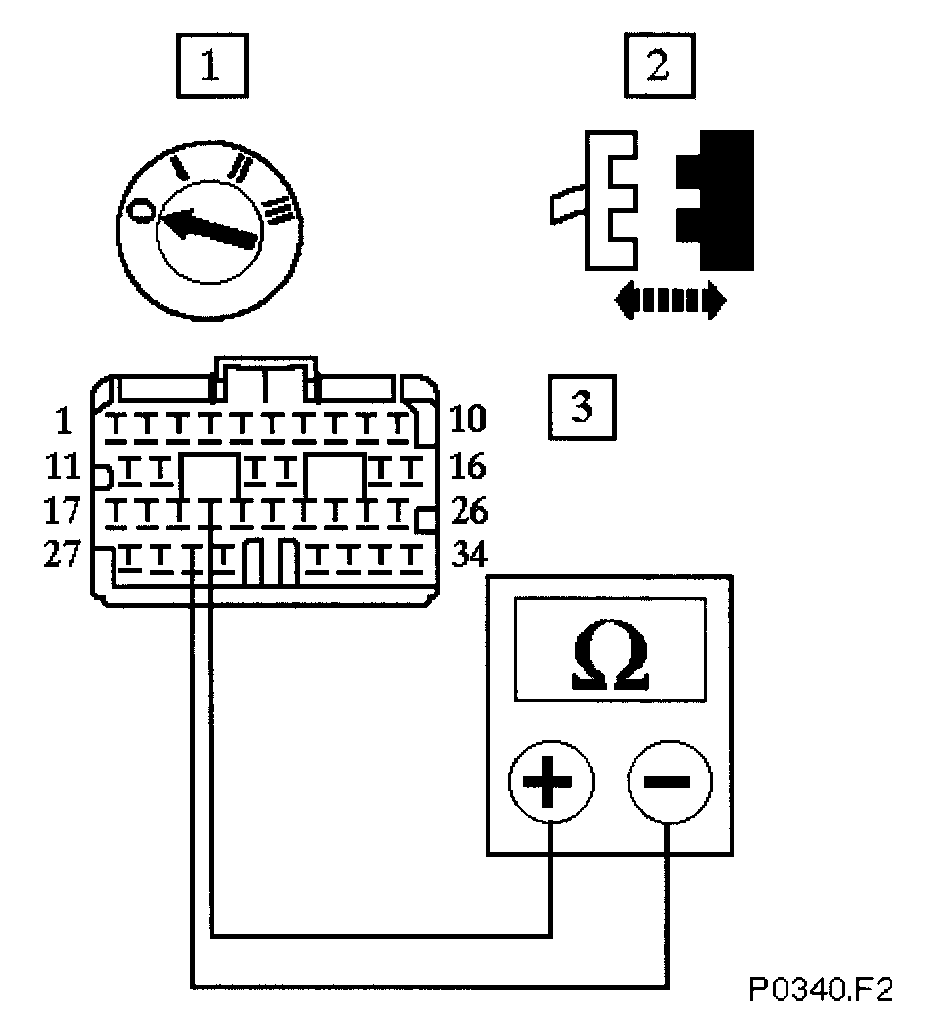

With EM013 disconnected measure the resistance between EM013/020 & EM013/029

Is the resistance between 1850 & 2500 Ohms?

Yes
Go to F8

No
Go to F3
