E7: Check Sensor Continuity

NOTE: It will be necessary to release the connector & harness from their fixings to gain access See removal instructions

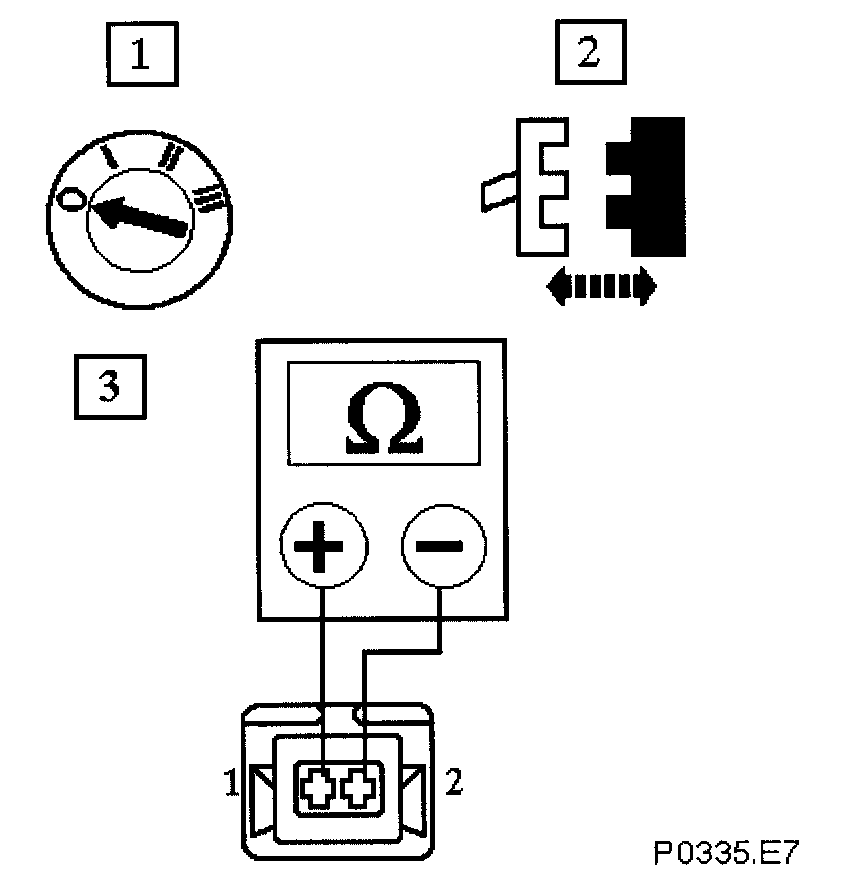

Measure the resistance between PI017/002& PI017/001

Is the resistance between 950 & 1250 ohms?

Yes
Go to E8

No
Renew crank position sensor
Go to E9
