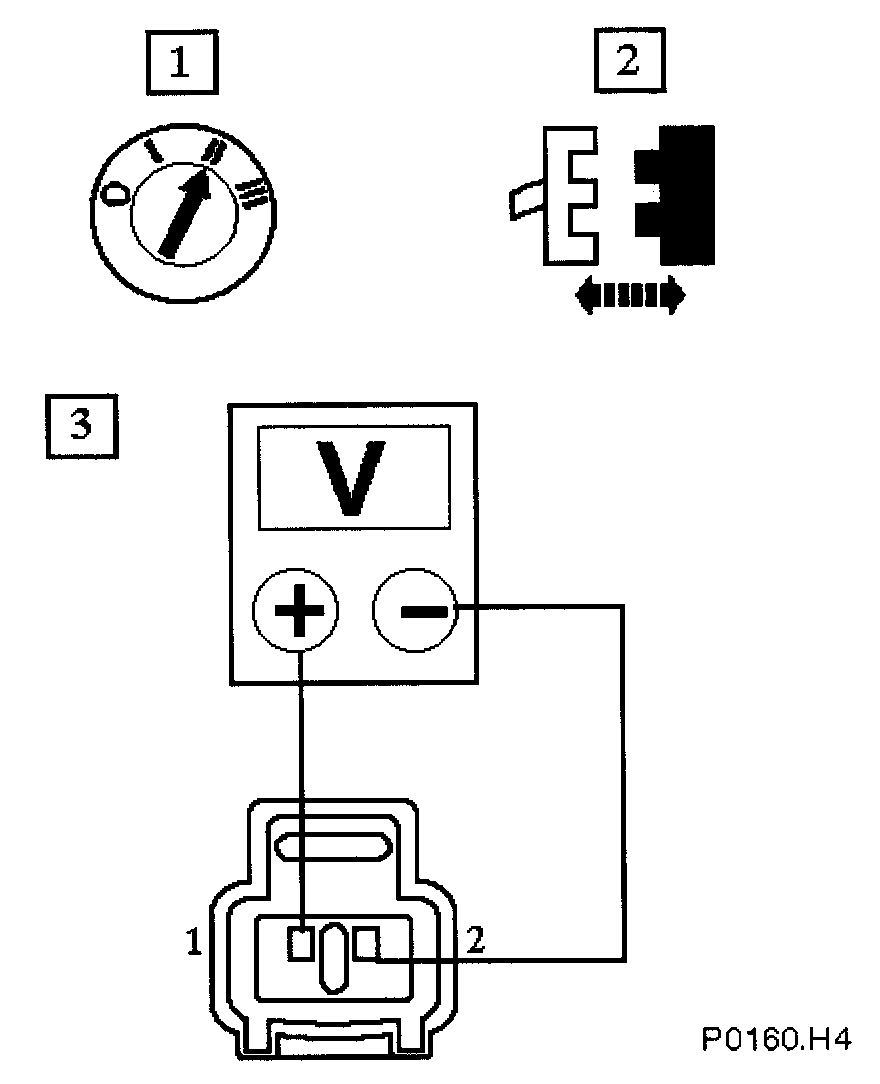

H4: Check For O2 Sensor Failure
H4: Check For O2 Sensor Failure
With the conditions held as H3, suddenly decelerate to idle
Has the voltage dropped to 400mV or less?
Yes
Stop the engine
Go to
H5
No
Renew O2 sensor; reconnect plug(s)
Go to
H7
