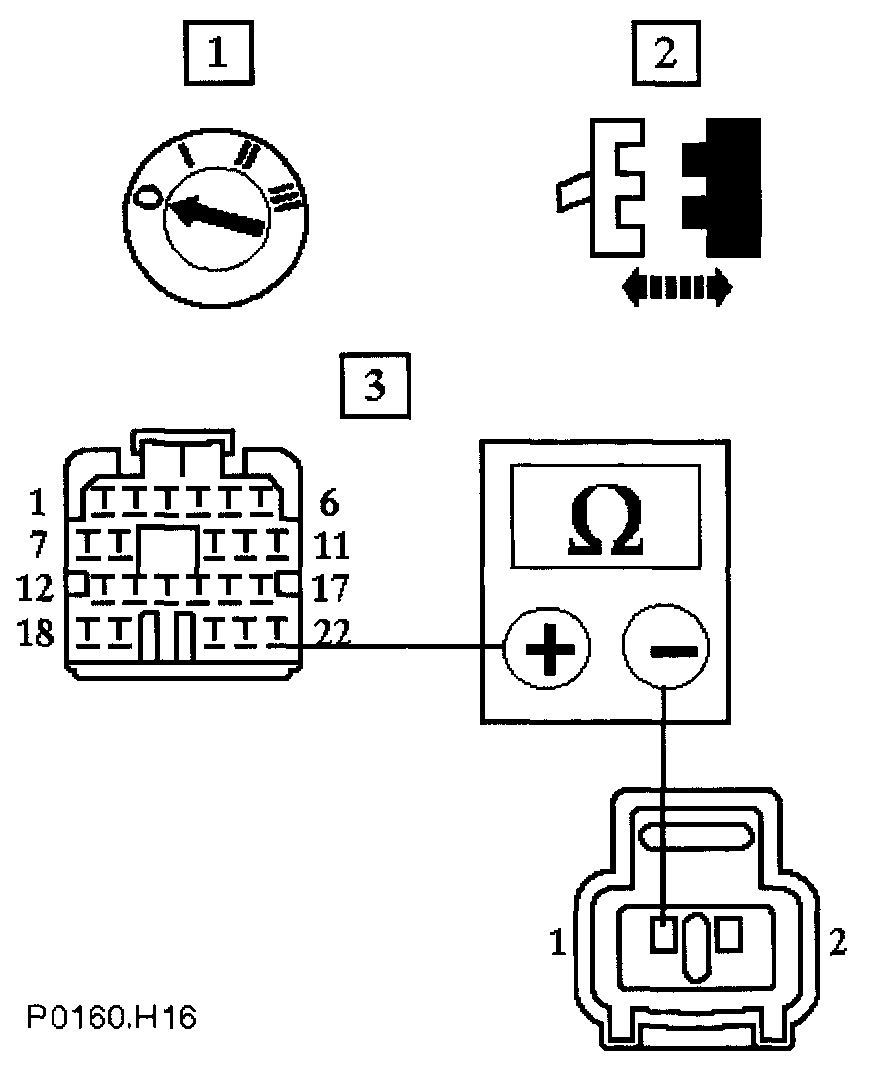

H16: O2 Sensor Screen Ground Continuity

With EM012 & EM024 disconnected, measure the resistance between EM012/022 & EM024/001

Is the resistance < 0.5 ohms?

Yes
Go to H17

No
Inspect connectors EM012, & EM024 for corrosion, damaged/pushed back pins or repair the harness; reconnect plug(s)
Go to H21
