P0158
>>

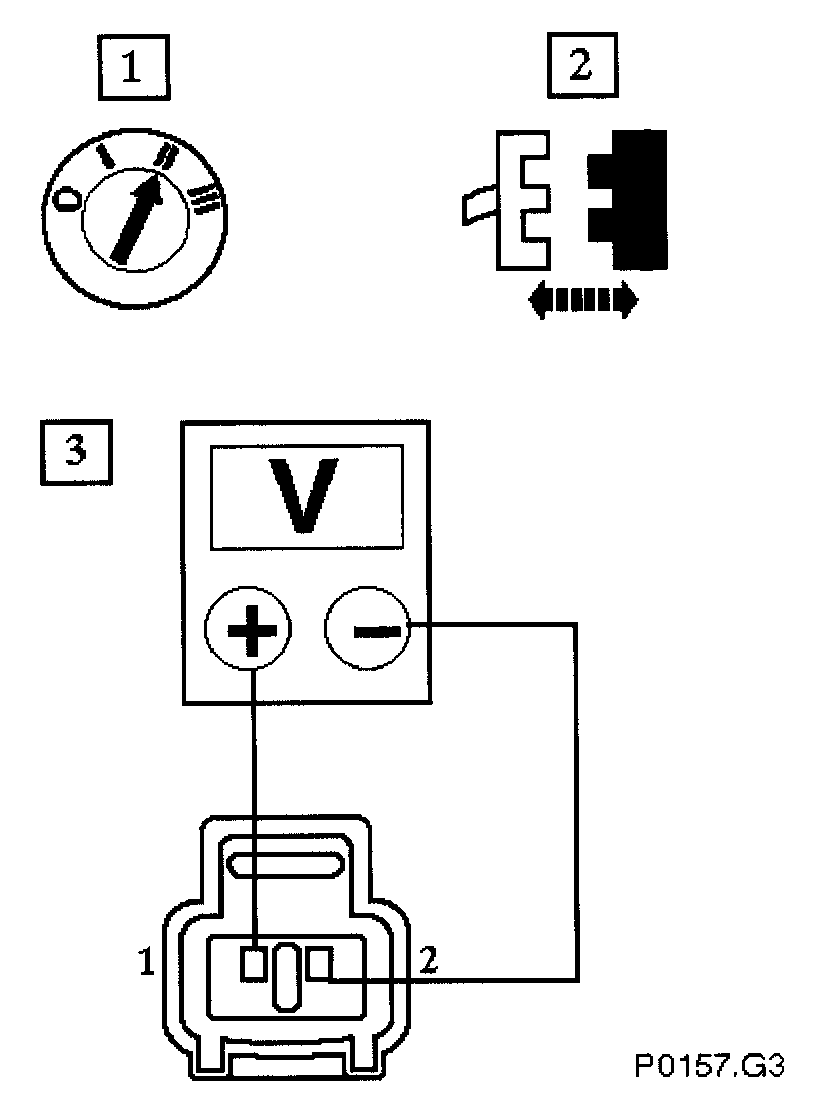

G3: Check For O2 Sensor Failure
G3: Check For O2 Sensor Failure
With the conditions held as G2, suddenly decelerate to idle
Has the voltage dropped to 400mV or less?
Yes
Go to
G4
No
Renew O2 sensor & reconnect plug(s)
Go to
G6
