F15: Check For Short to B+

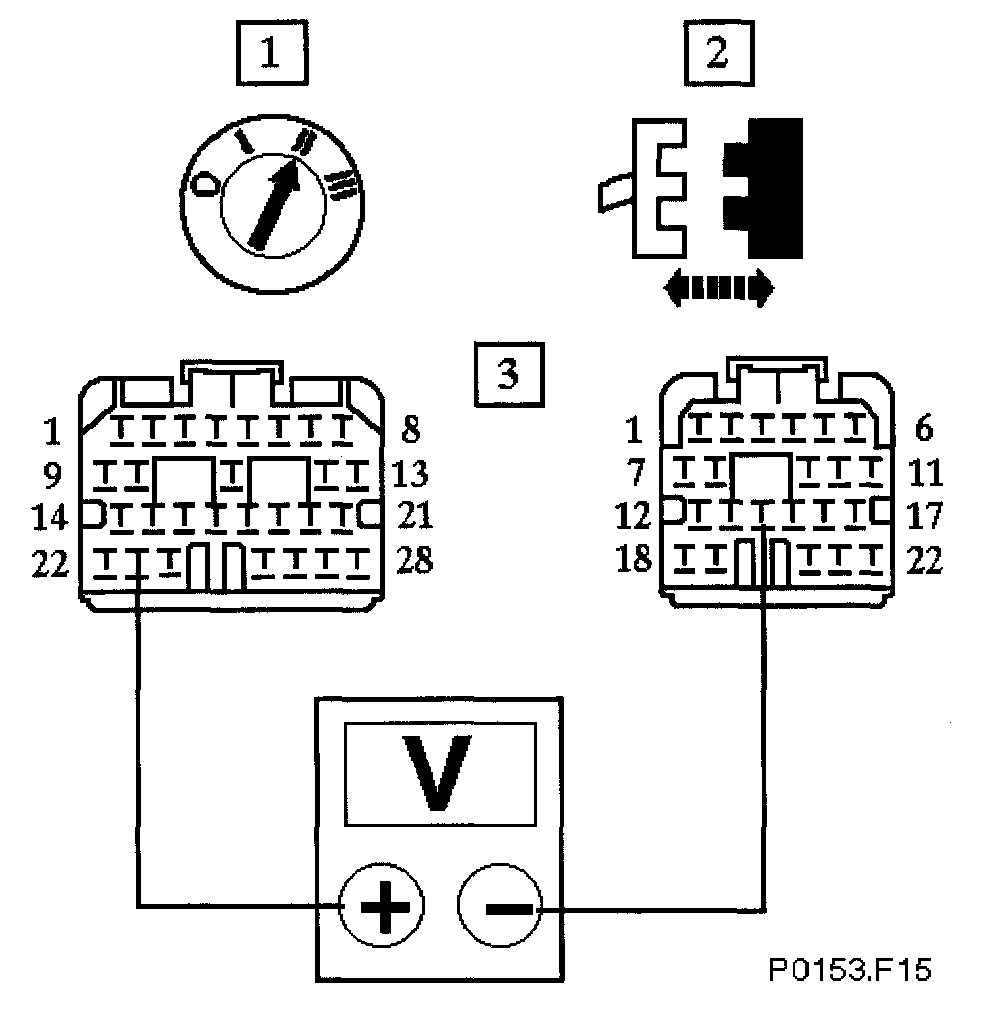

With EM010 & EM012 disconnected, measure the voltage between EM010/023 & EM012/014

Is the voltage 0 (zero) V?

Yes
Go to F16

No
Inspect connectors EM010, EM012, & EM023 for corrosion, damaged/pushed back pins or repair the harness, reconnect plug(s)
Go to F19
