E17: Check B+ At O2 Sensor Heater Circuit

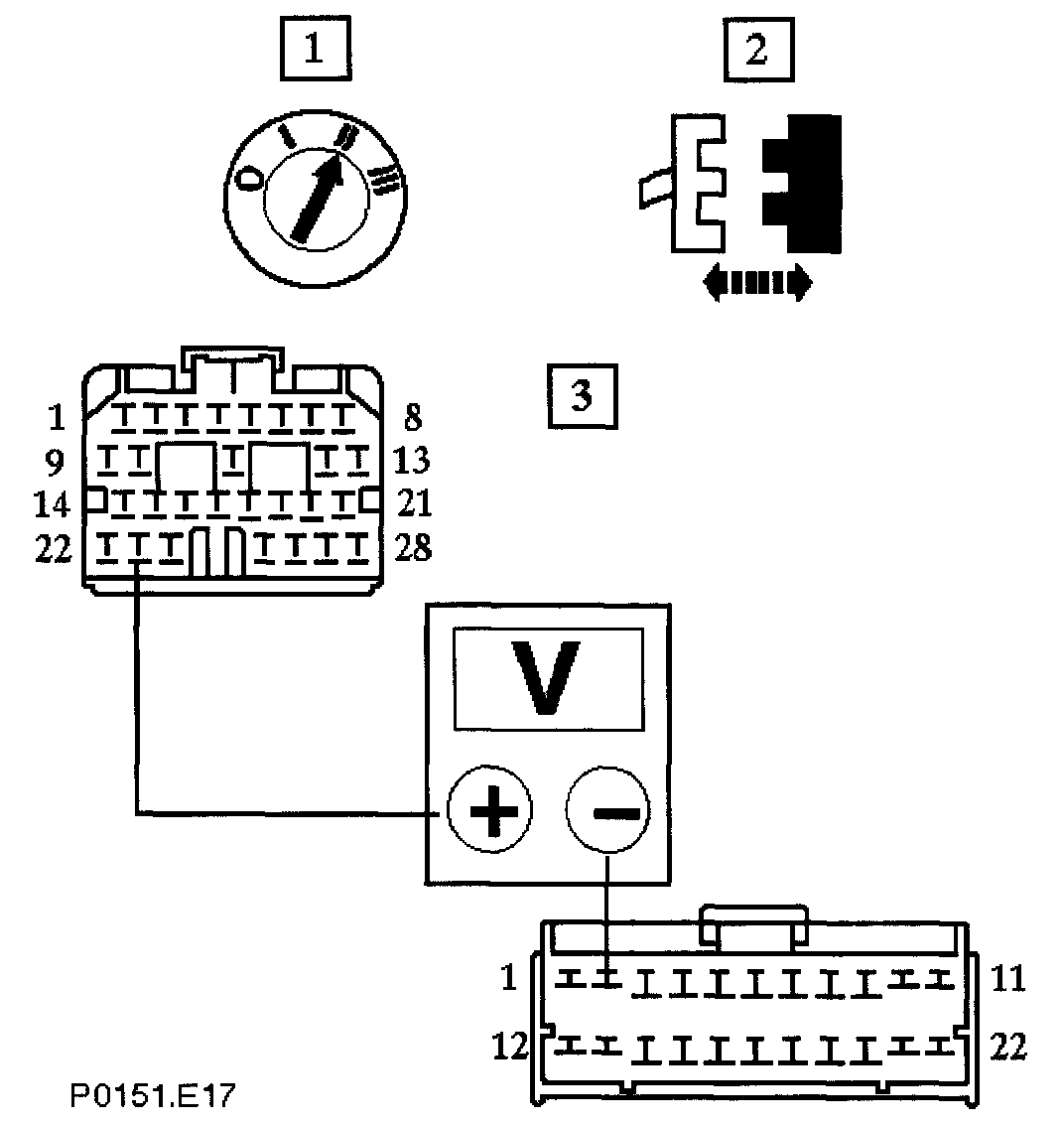

With EM010 & EM015 disconnected, measure the voltage between EM010/023 & EM015/001

Is the voltage B+?

Yes
Remove link lead & reconnect all connectors
Go to E18

No
Check EMS fuse F14 & that EMS control relay (relay 1) is energized & with all connections made
Go to E18
