D17: Check For Short to B+

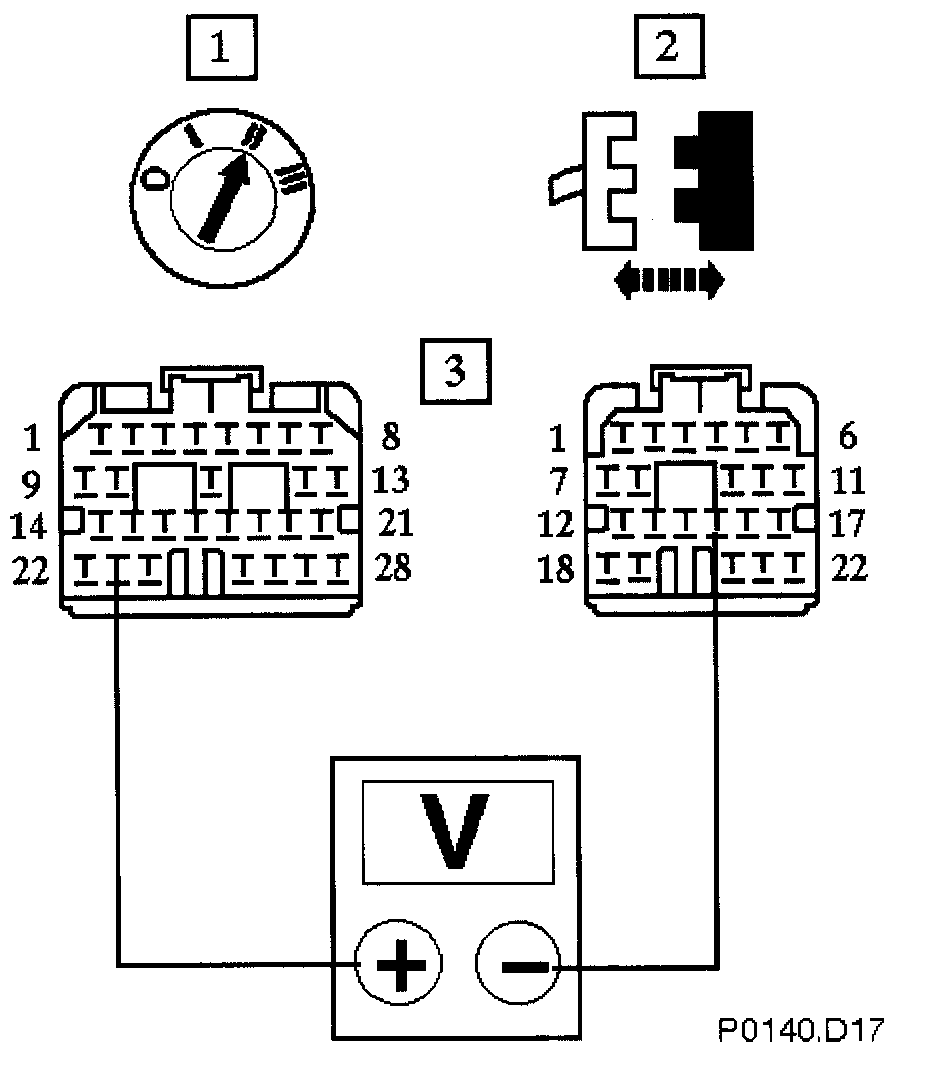

With EM010 & EM012 disconnected, measure the voltage between EM010/023 & EM012/015

Is the voltage 0V?

Yes
Go to D18

No
Inspect connectors EM010, EM012, & EM022 for corrosion, damaged/pushed back pins or repair the harness; reconnect plug(s)
Go to D21
