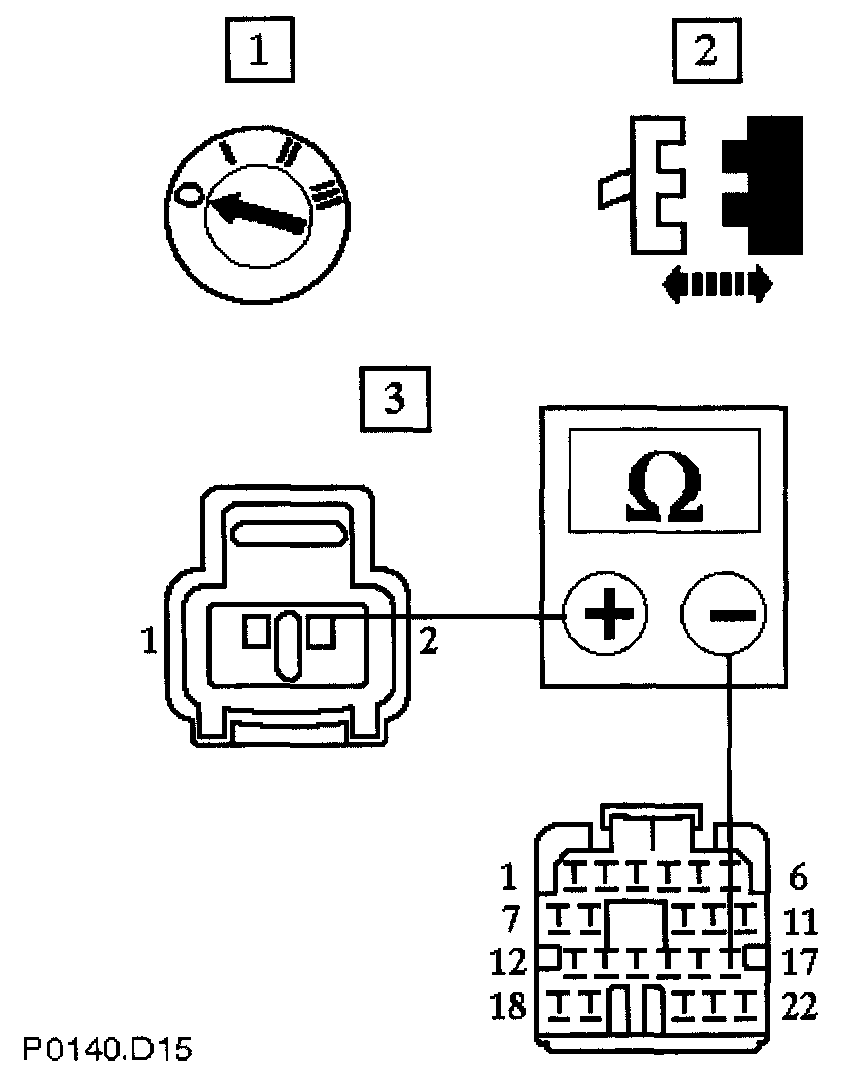

D15: Check For O2 Sensor Continuity







With EM012 & EM022 disconnected, measure the resistance between EM012/017 & EM022/002

Is the resistance < 0.5 ohms

Yes
Go to D16

No
Inspect connectors EM012, & EM022 for corrosion, damaged/pushed back pins or repair the harness; reconnect plug(s)
Go to D21
