D10: O2 Sensor Short Circuit to Ground

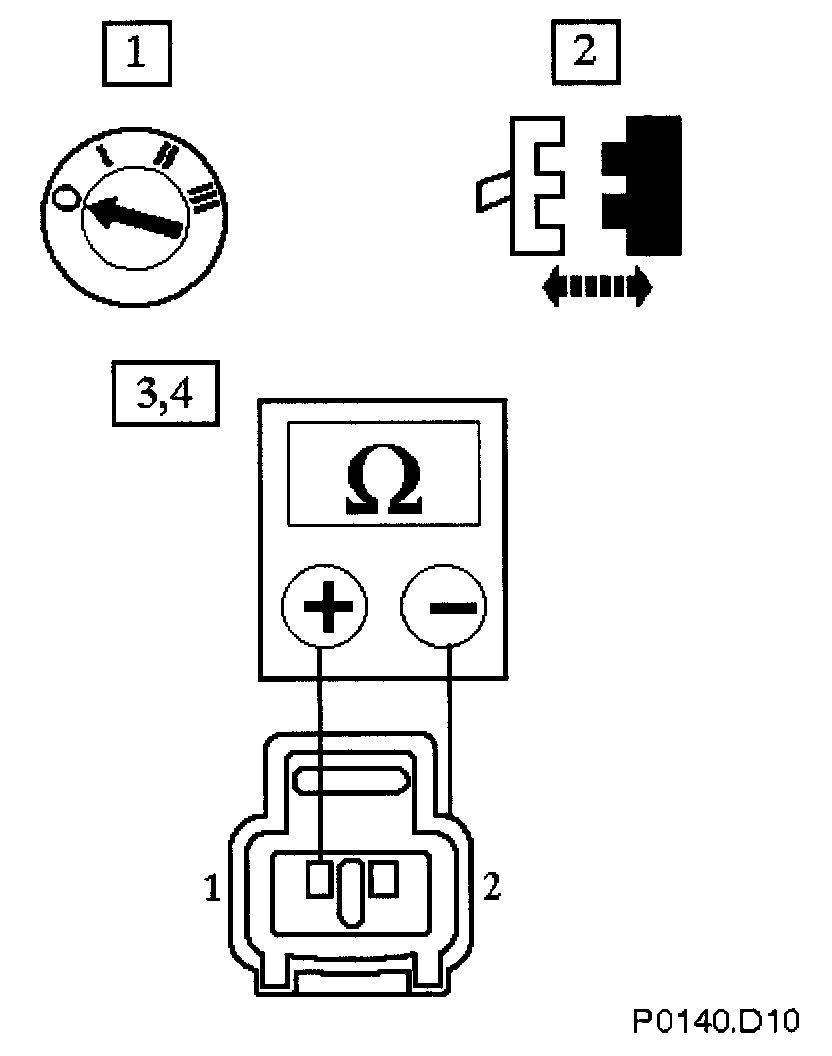

With EM022 disconnected measure the insulation resistance between sensor pin 001 & sensor body Repeat for pin 002 & sensor body

Is the resistance> 10M ohms?

Yes
Go to D12

No
Renew the O2 sensor & reconnect all plugs
Go to <
