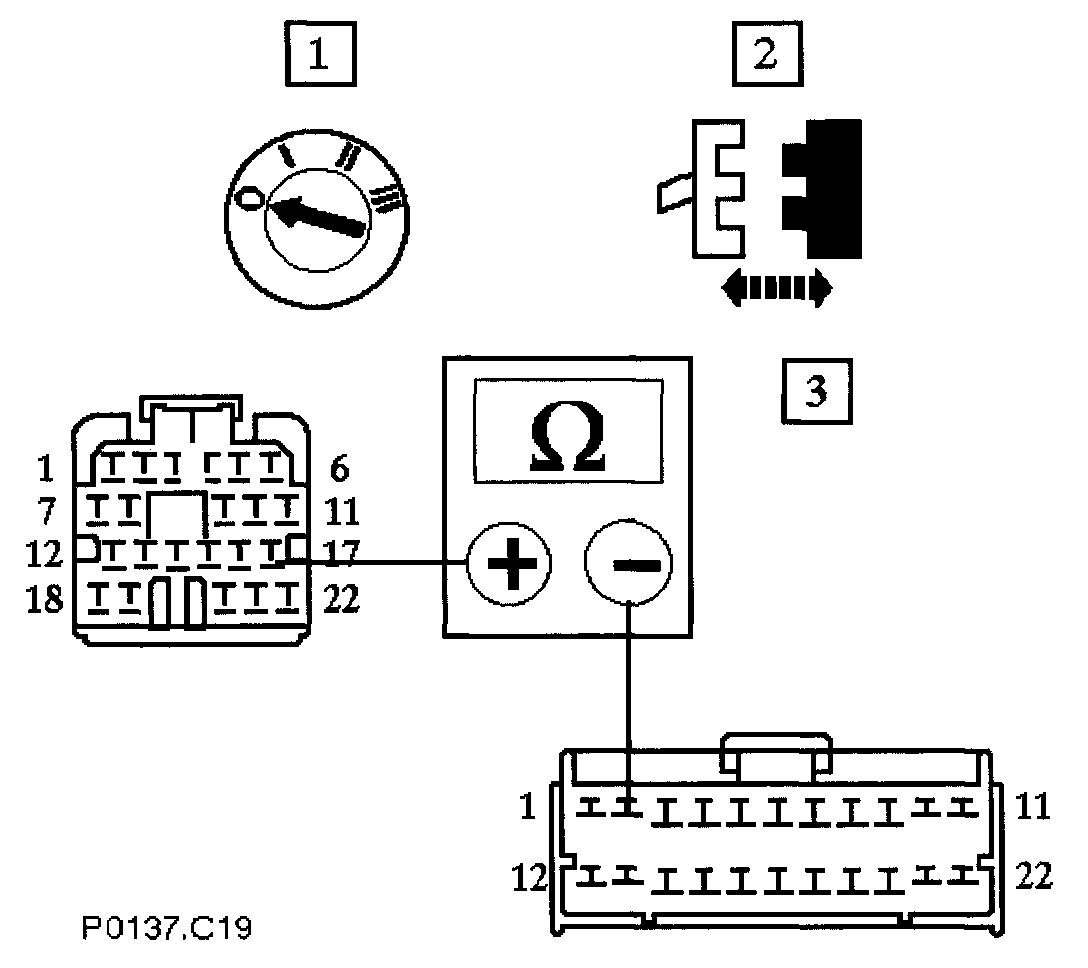

C19: Check Harness Short Core to Core

Measure the insulation resistance between EM012/017 & EM015/002

Is the resistance> 10M ohms?

Yes
Reconnect all plugs Go to C20

No
Inspect EM012, EM015 & EM022 for corrosion, bent pushed back pins or locate & repair the harness/connector fault
Go to C20
