B9: Heated O2 Sensor Short Circuit to Ground

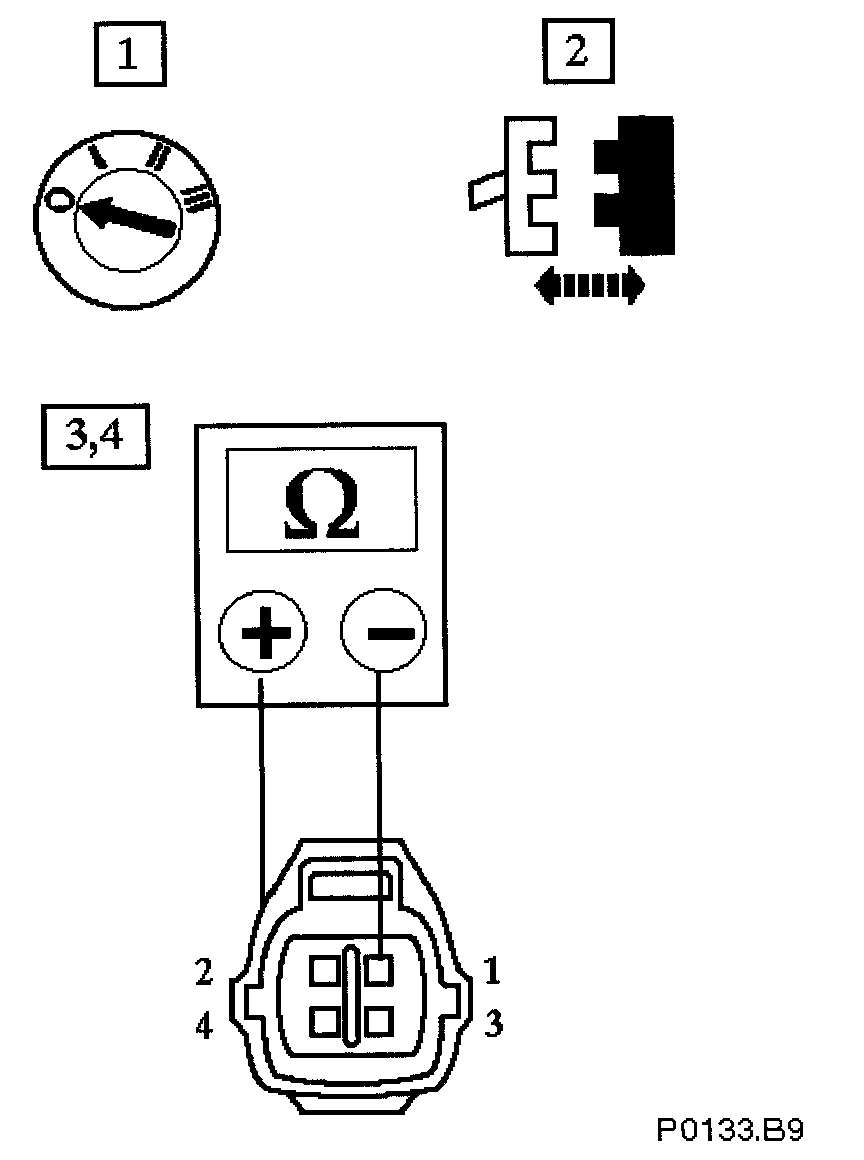

With EM021 disconnected measure the insulation resistance between sensor pin 001 & sensor body Repeat for pin 003 & sensor body

Is the resistance> 10M ohms?

Yes
Go to B11

No
Renew the O2 sensor & reconnect plug(s)
Go to B10
