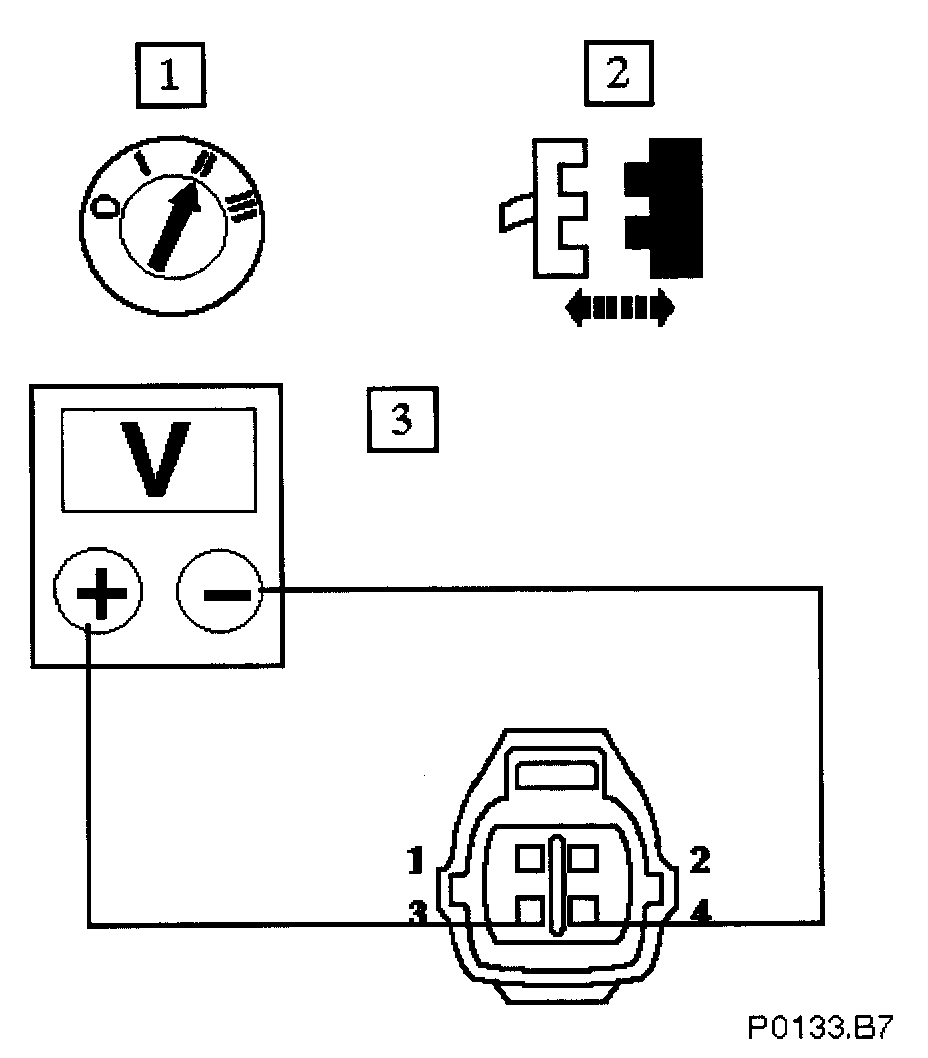

B7: Check For O2 Sensor Failure

With the conditions held as in B6, run the engine at 1500 rpm for approximately 2 minutes

Does the displayed voltage drop below 400mV & rise above 500 mV, cycling approximately every 4 seconds?

Yes
Go to B9

No
Renew O2 sensor, reconnect plug(s)
Go to B8
