B3: Check For O2 Sensor Heater Continuity
B3: Check For O2 Sensor Heater Continuity

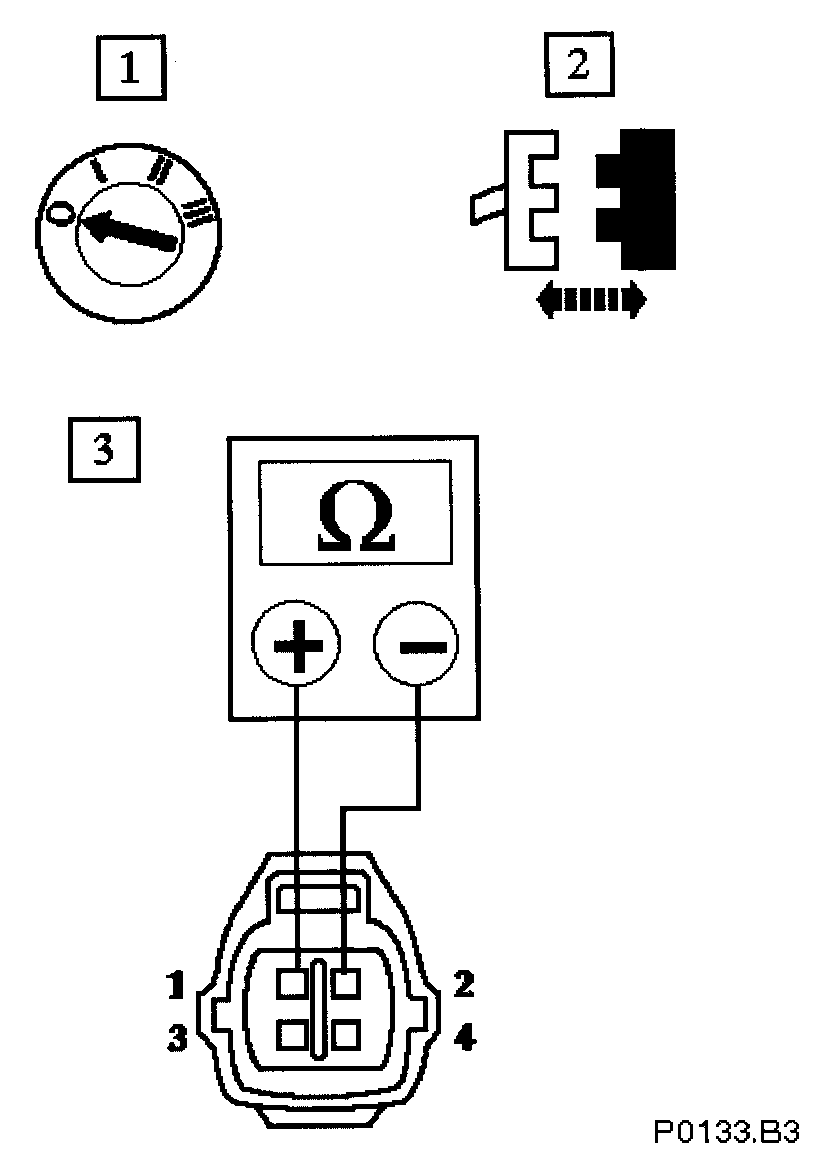

With EM021 disconnected, measure the resistance between EM021/001 & EM021/002.
Is the resistance between 4 & 10 ohms?
Yes
Go to
B4
No
Renew O2 sensor, reconnect plug(s)
Go to
B8
