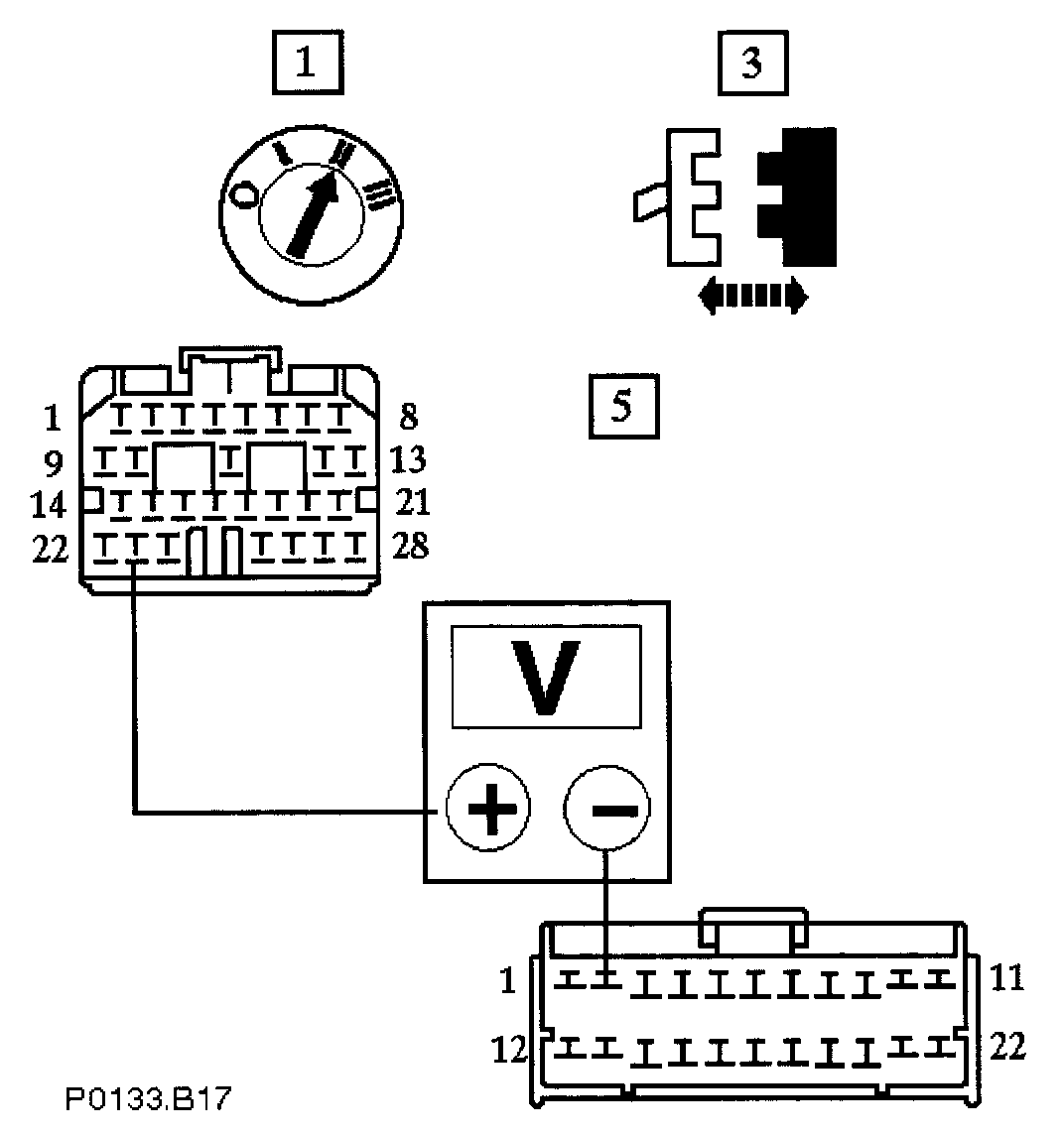

B17: Check For Short To B+ At O2 Sensor Heater

Remove EMS fuse F14
Disconnect EM010 & EM015
Using a link lead, bridge EM010/016 & EM010/022
Measure the voltage between EM010/023.& EM015/002

Is the voltage 0 (zero) V?

Yes
Replace EMS fuse F14 but retain link lead
Go to B18

No
Inspect connectors EM010, EM015, & EM021 for corrosion, damaged / pushed back pins or repair the harness; reconnect plug(s).
Go to B19
