P2: Check ECM Ground

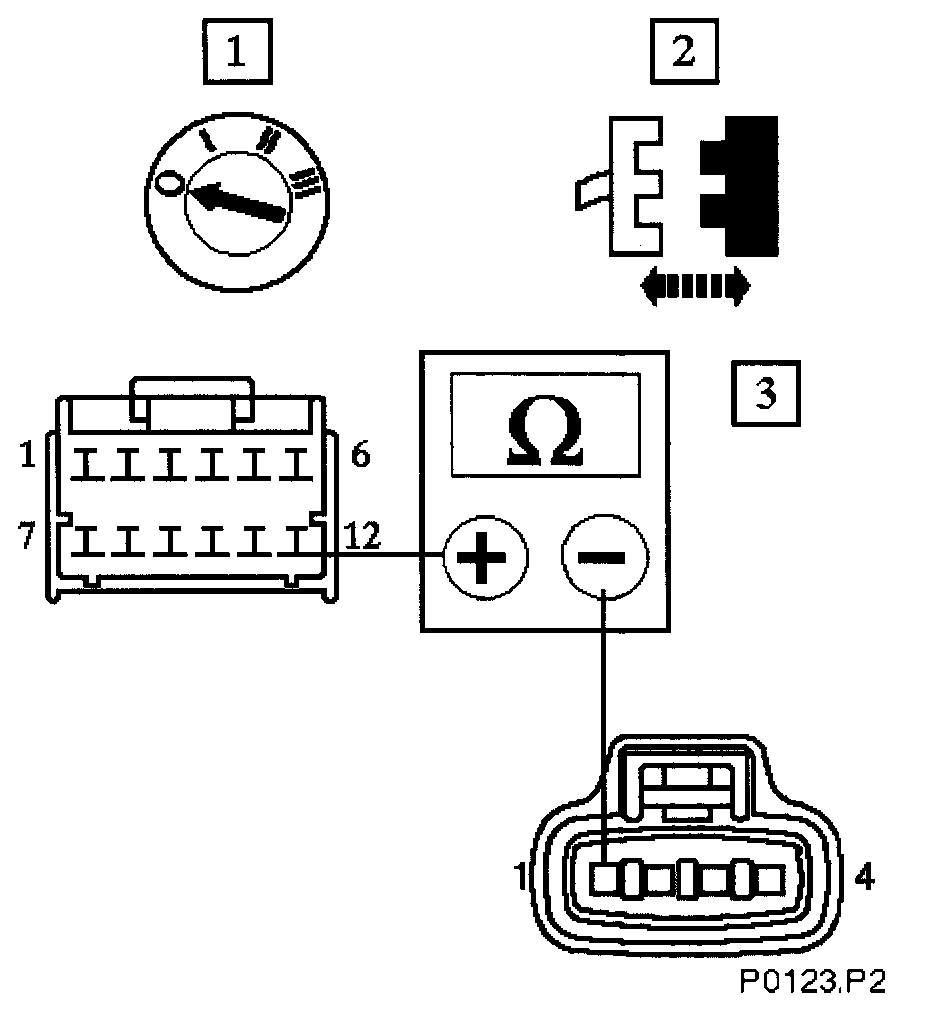

With conditions as P1, measure the resistance between EM011/012 & PI006/001
Is the resistance < 0.5 ohms?
Yes
Go to P3
No
Inspect EM011 & PI006 for bent/pushed back pins or locate & repair the harness/splice PIS01
With conditions as P1, measure the resistance between EM011/012 & PI006/001
Is the resistance < 0.5 ohms?
Yes
Go to P3
No
Inspect EM011 & PI006 for bent/pushed back pins or locate & repair the harness/splice PIS01
