Y3: Check For Short to B+

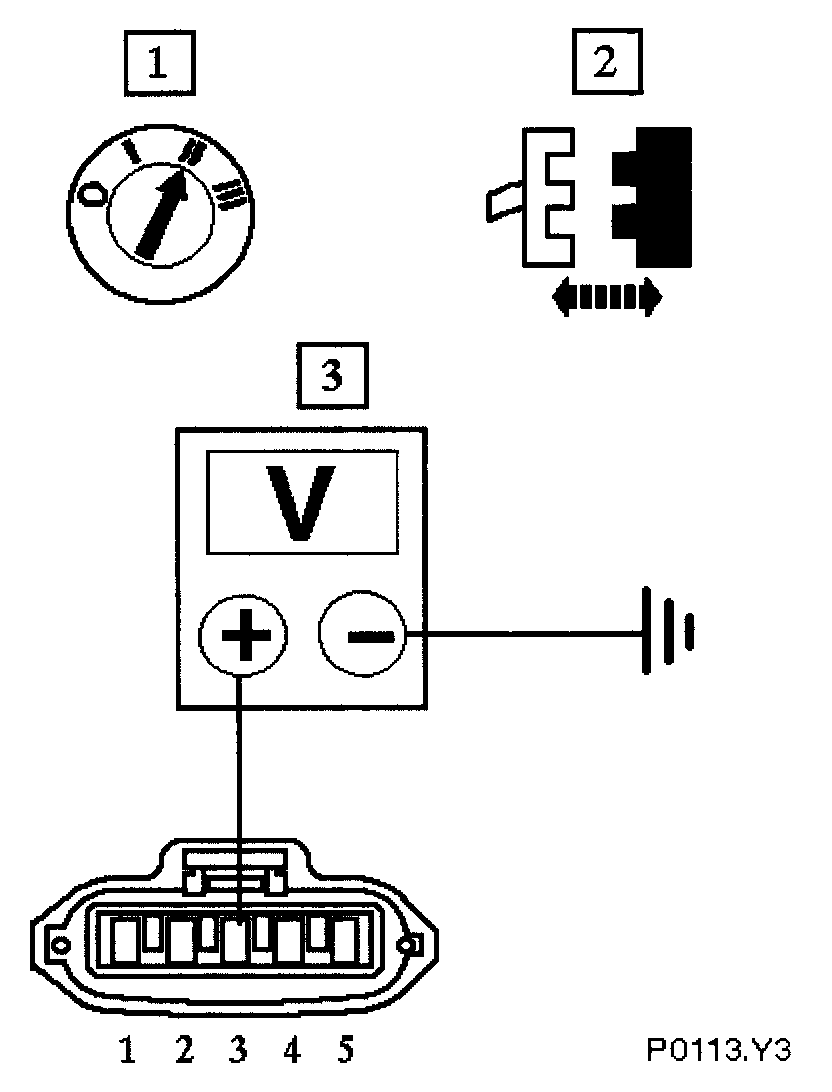

Measure the voltage at connector PI035/003

B+?

Yes
Locate & repair the harness/connector (PI001/057) short to B+ & test the system for normal operation

No
Go to Y4
