Windshield Washer Reservoir: Description and Operation

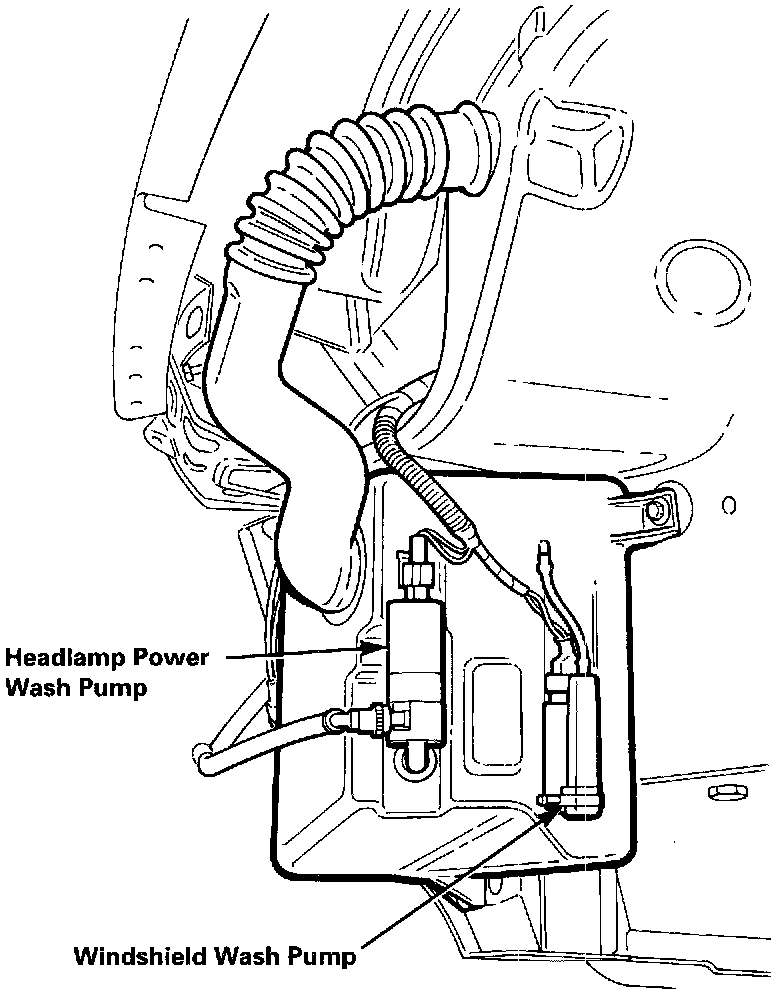

Washer Reservoir:

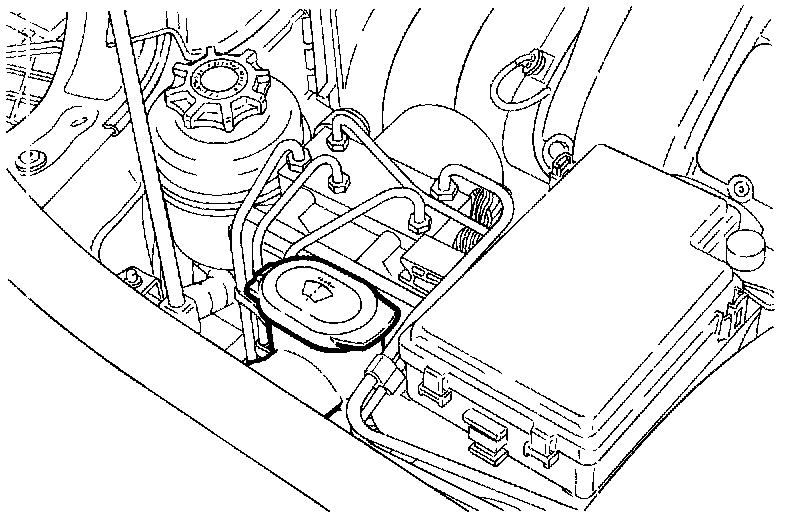

Washer Reservoir Filler Cap:

The washer reservoir, mounted in the front left side fender forward of the wheel arch, contains up to 7 litres (1.85 US gall) of liquid and has a low level sensor. The sensor is integral with the windshield washer pump.

The filler neck cap is located under the hood on the left side adjacent to the power steering reservoir and the brake modulator.

Separate wash pumps are fitted, one for windshield wash, and one for headlamp power wash when this feature is fitted. The windshield wash pump is active for a maximum of 20 seconds while the switch is held.
