Electrical Diagrams

�&���&��&�'�&d?�&Wash / Wipe System:

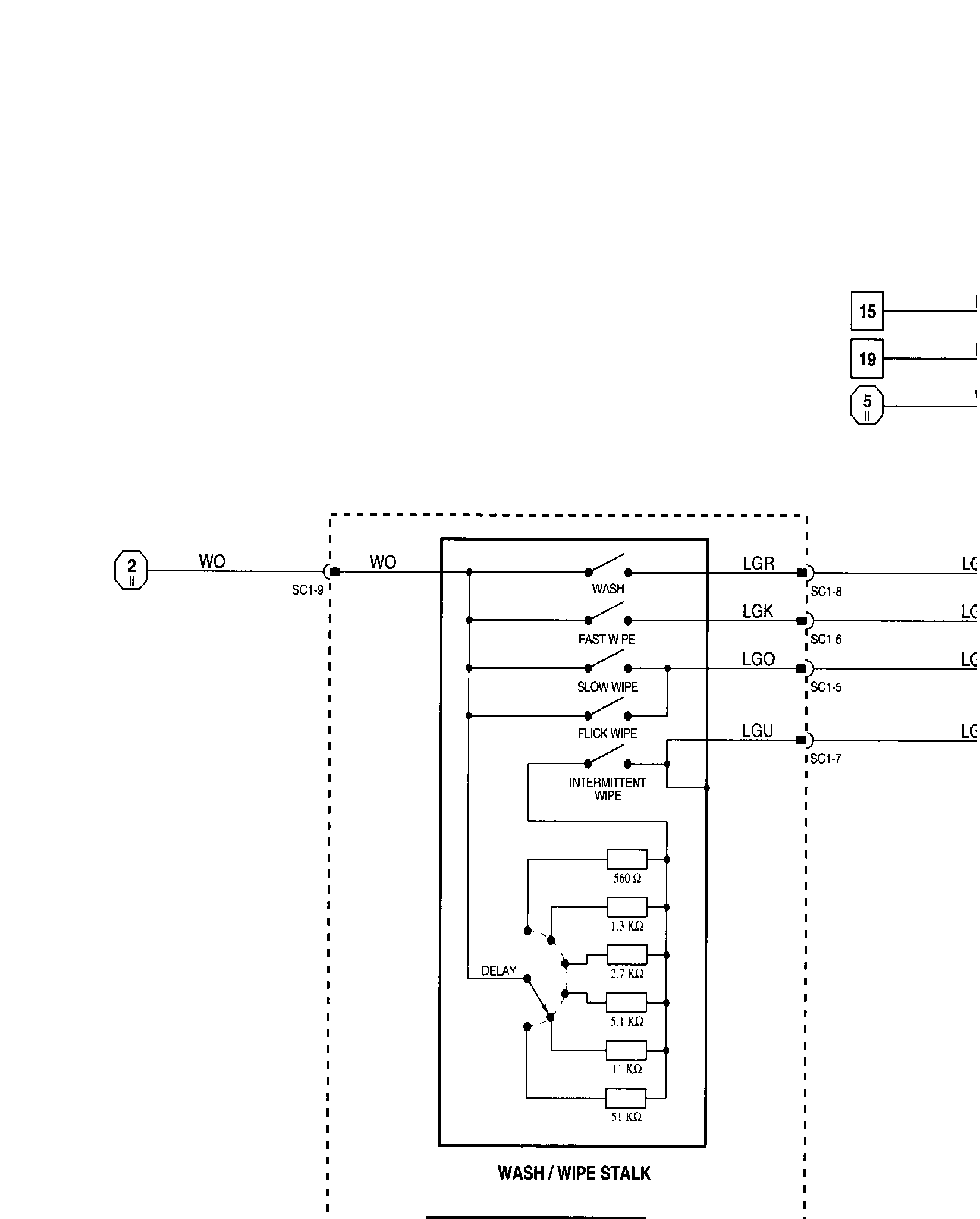

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Wash / Wipe System: Components:

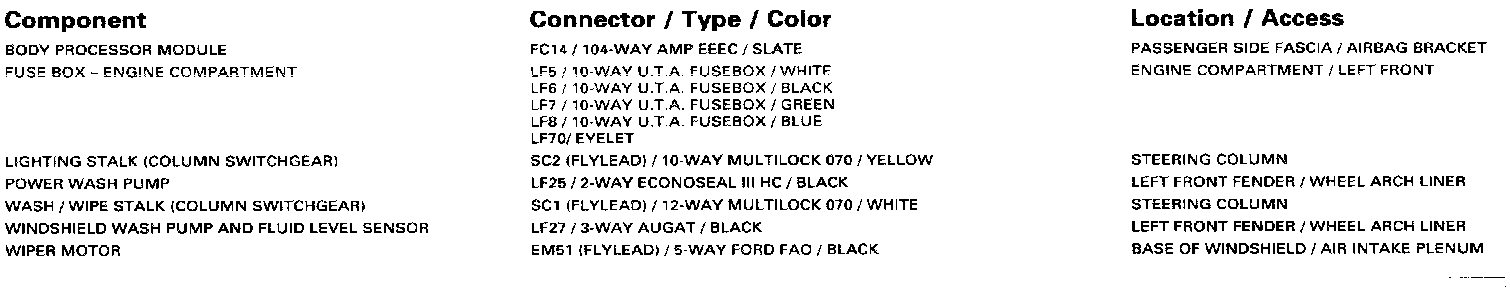

Components Informations

Wash / Wipe System: Relays:

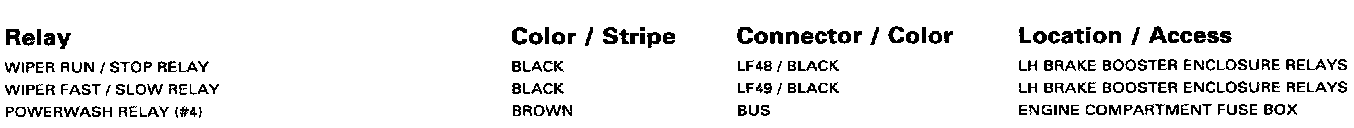

Relays Informations

Wash / Wipe System: Harness-To-Harness Connectors:

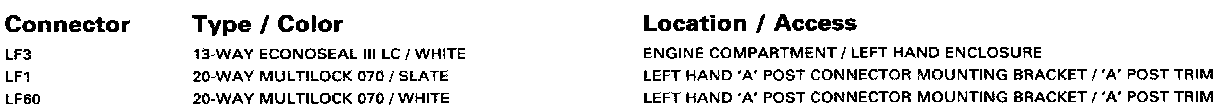

Harness-To-Harness Connector Informations

Wash / Wipe System: Grounds:

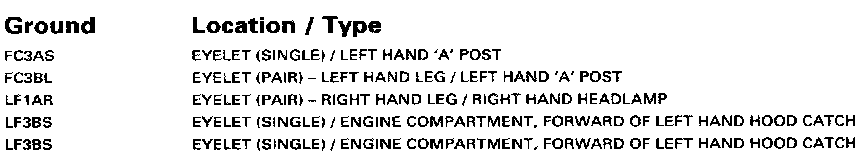

Grounds Informations

Wash / Wipe System: Control Module Pin Out Information:

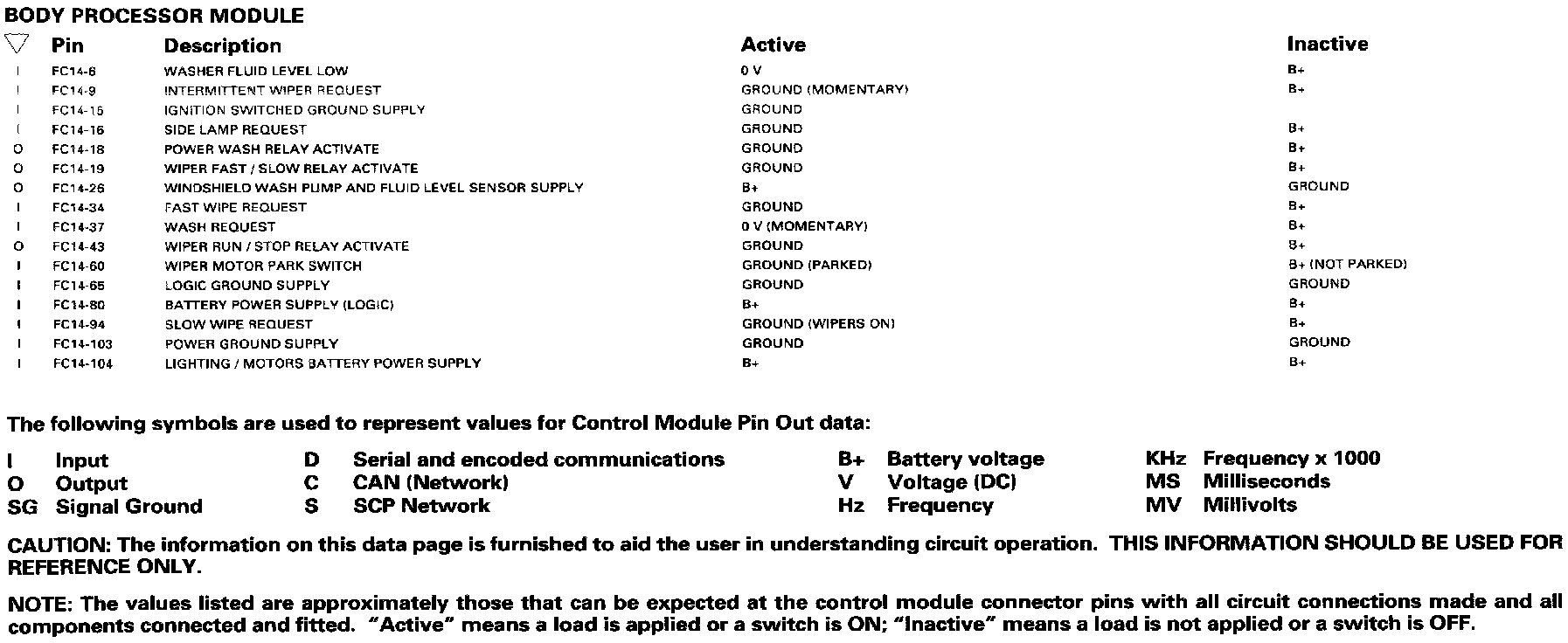

Control Module Pin Out Informations
