Output Shaft Sensor Replacement

REMOVAL

NOTE: For INPUT see step #4, for OUTPUT refer to step #6; the procedures differ only in location within the transmission assembly.

1. Disconnect the battery ground lead..

WARNING: TRANSMISSION FLUID MAY CAUSE SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES ARE OBSERVED.

2. Raise the vehicle on a suitable lift.





- Carefully remove the drain plug and drain the transmission fluid.





3. Remove fluid pan fixings (22)
- Remove the fluid pan and all traces of gasket material.

NOTE: M5 fixing

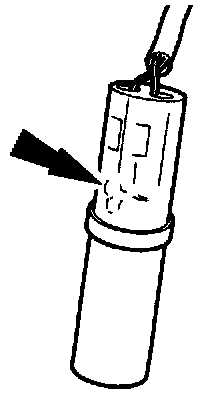

4. Release the fixing (1 ) INPUT speed sensor securing bracket and pull the sensor clear.

OR





5. Release the fixing (1 ) INPUT speed sensor securing bracket and pull the sensor clear.

NOTE: M6 fixing

6. Release the fixing (1 ) OUTPUT speed sensor securing bracket and pull the sensor clear.





7. Disconnect the relevant speed sensor multiplug.

INSTALLATION

NOTE: M5 fixing





1. Connect the multiplug, install the INPUT speed sensor and securing bracket.

OR





2. Connect the multiplug, install the INPUT speed sensor and securing bracket.

NOTE: M6 fixing

3. Connect the multiplug, install the OUTPUT speed sensor and securing bracket.





4. Using a new gasket, install the fluid pan tighten the fixings (22) as specified.

NOTE: Ensure extreme cleanliness and never reuse transmission fluid.

5. Refer to General Procedures for fluid fill.
